DP-V1 communication
66

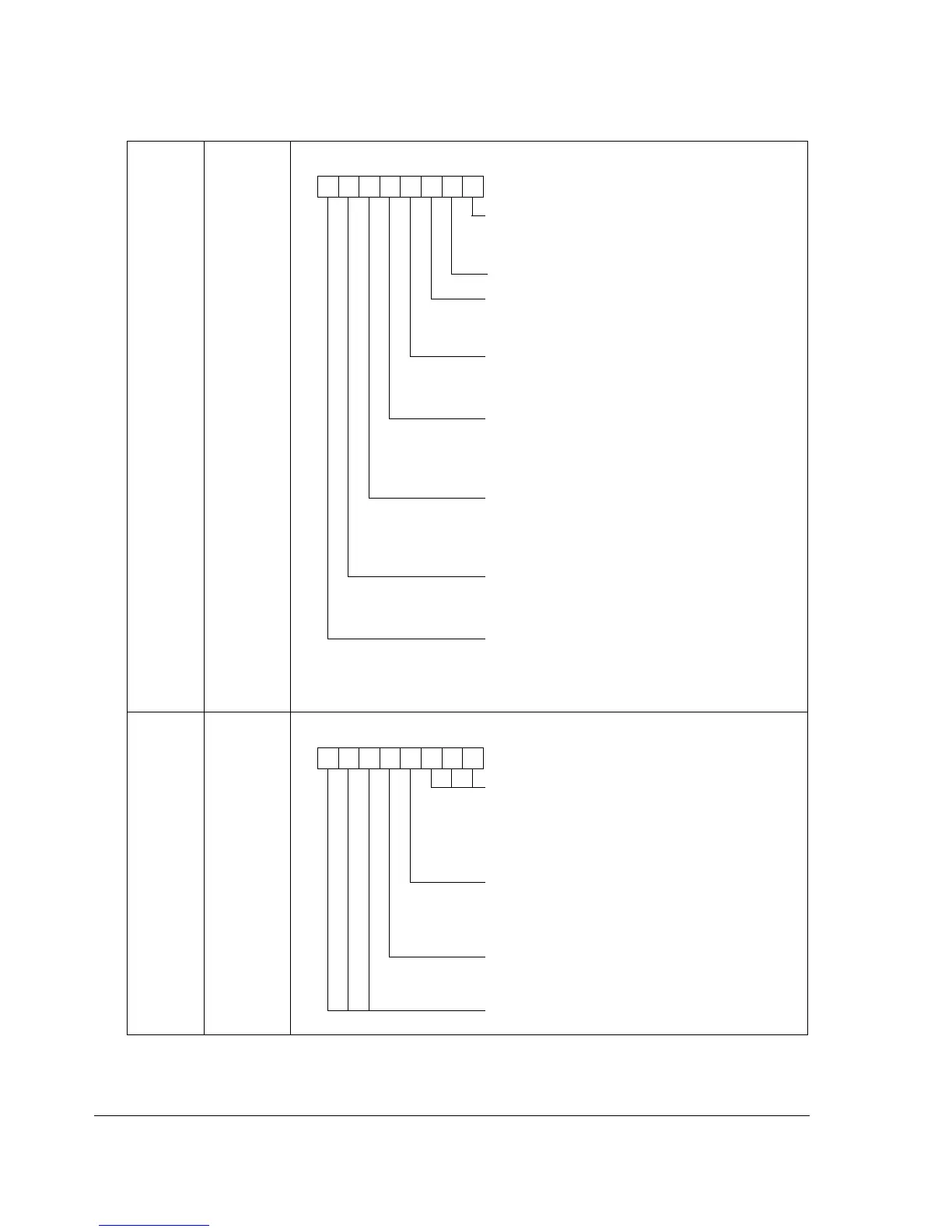

8 DPV1_Status_2
9 DPV1_Status_3
xxxxxx0x
Chk_Cfg_Mode
0 = Chk_Cfg according to EN 50170 (default state)
1 = User-specific evaluation of Chk_Cfg
MSB LSB
Enable_Update_Alarm
0 = Enable_Update_Alarm disabled
1 = Enable_Update_Alarm enabled (Not supported)
Reserved. To be parameterised with ‘0’.
Enable_Manufacturer_Specific_Alarm
0 = Enable_Manufacturer_Specific_Alarm disabled
1 = Enable_Manufacturer_Specific_Alarm enabled
(Not supported)
Enable_Status_Alarm
0 = Enable_Status_Alarm disabled
1 = Enable_Status_Alarm enabled (Not supported)
Enable_Diagnostic_Alarm
0 = Enable_Diagnostic_Alarm disabled
1 = Enable_Diagnostic_Alarm enabled (Not
supported)
Enable_Process_Alarm
0 = Enable_Process_Alarm disabled
1 = Enable_Process_Alarm enabled (Not supported)
Enable_Pull_Plug_Alarm
0 = Enable_Pull_Plug_Alarm disabled
1 = Enable_Pull_Plug_Alarm enabled (Not
supported)
000xxxxx
Alarm_Mode. Limits the number of active alarms.
0 = 1 alarm of each type 1 = 2 alarms in total
2 = 4 alarms in total 3 = 8 alarms in total
4 = 12 alarms in total 5 = 16 alarms in total
6 = 24 alarms in total 7 = 32 alarms in total
MSB LSB
Prm_Structure
0 = Prm telegram according to EN 50170
1 = Prm telegram in structure form (DPV2 extension)
(Not supported)
Reserved. To be parameterised with ‘0’.
IsoM_Req (Isochron Mode Request)
0 = Isochron Mode disabled
1 = Isochron Mode enabled (Not supported)
