Operation Manual / TPL67-C.. - TPL71-C..

Taking out of operation at short notice

Fit cover plate

9.3

Page 121

February 2017 HZTL2488_EN Revision D



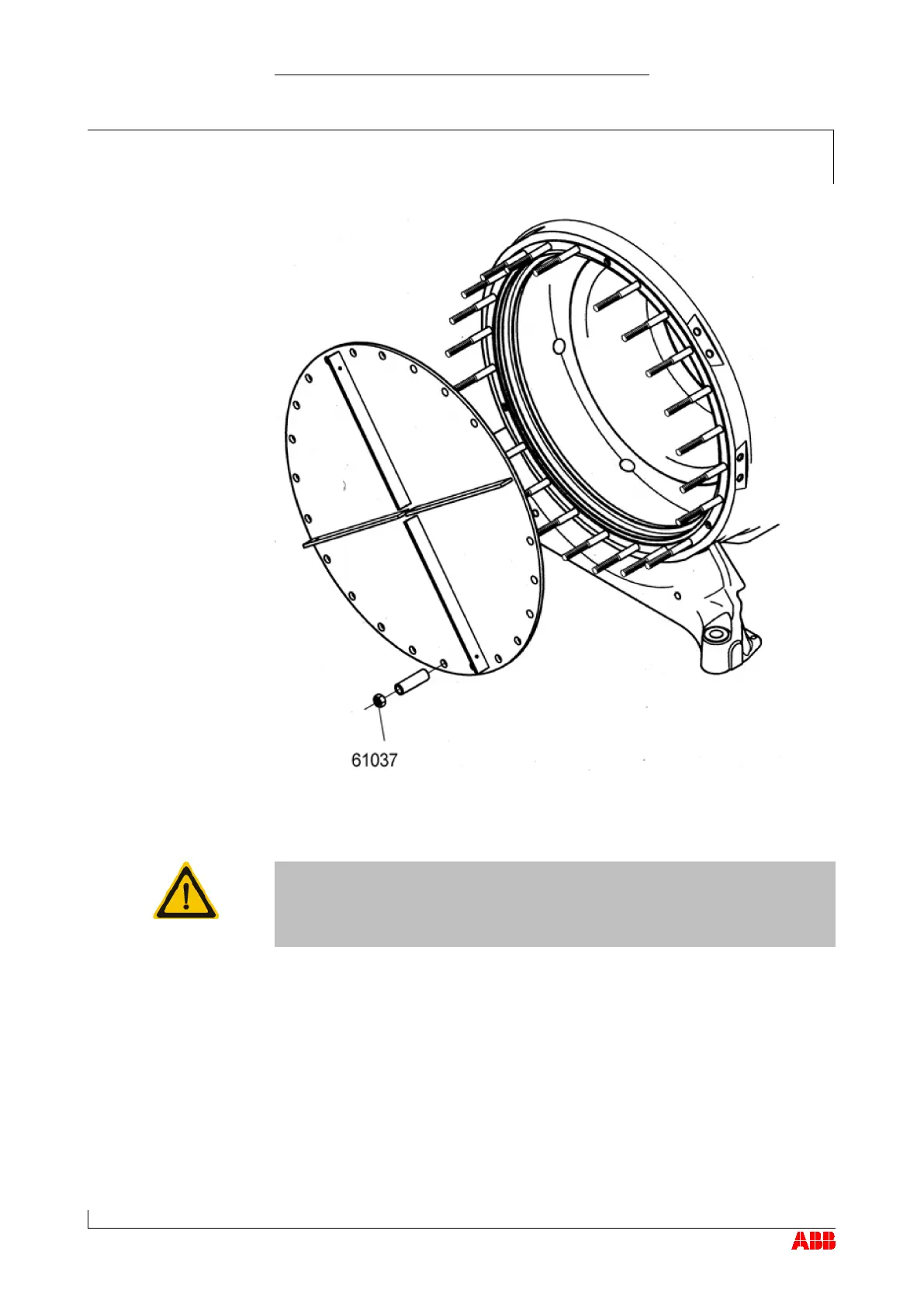

Close opening in gas outlet casing using cover plate.

 Fasten cover plate using spacer sleeves and nuts (61037).

CAUTION

Shut off the supply of lubricating oil to the turbocharger.
