2105514-001 rev. AB | 11
7. Loosen the lithium battery unit from the head of the transducer assembly (Figure
5, µFLOG5 assembly, exploded view, page 11). The battery will need to remain
connected to, and moved with, the electronic board.

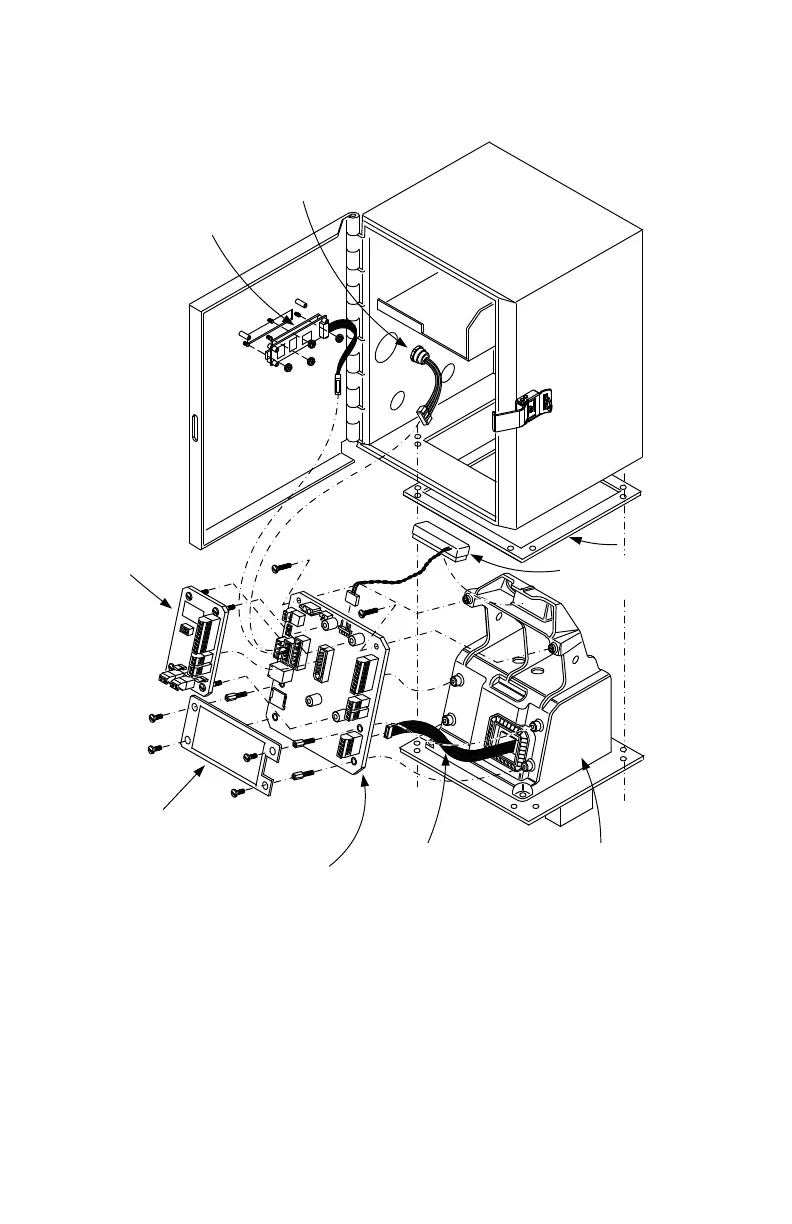

Figure 5: µFLO
G5
assembly, exploded view
8. Lift the board away from the transducer housing carefully. The electronic board
to transducer sensor cable is very short, approximately 3 inches. Do not pull the
board completely away until the cable has been disconnected from the back of
the board.
9. Grasp the electronic board to transducer sensor cable at the back of the board
and disconnect it.
µFLO
G5
electronic board
Optional I/O
expansion card
MMI connector
Cover plate
Transducer housing
Lithium battery
Gasket
Liquid crystal
display
Battery
tray
Electronic board to
transducer sensor
board cable
