2105514-001 rev. AB | 15
3.6.2 Reinstall the IMV Assembly
Replacing the complete IMV assembly is necessary and applicable in two
component replacement procedures:
— Transducer assembly replacement (either differential or linear assemblies)
— IMV assembly replacement (complete)
To install the complete IMV assembly, perform the following steps:
1. Place the clean weather sealing gasket over the upper body of the IMV
assembly and move the gasket down to the mounting plate just below the
electronic board (Figure 6).
µFLO
G5
IMV
Assembly
(complete)
Optional I/O
expansion card
MMI connector
Lithium battery
Gasket
Liquid crystal
display
Battery
tray

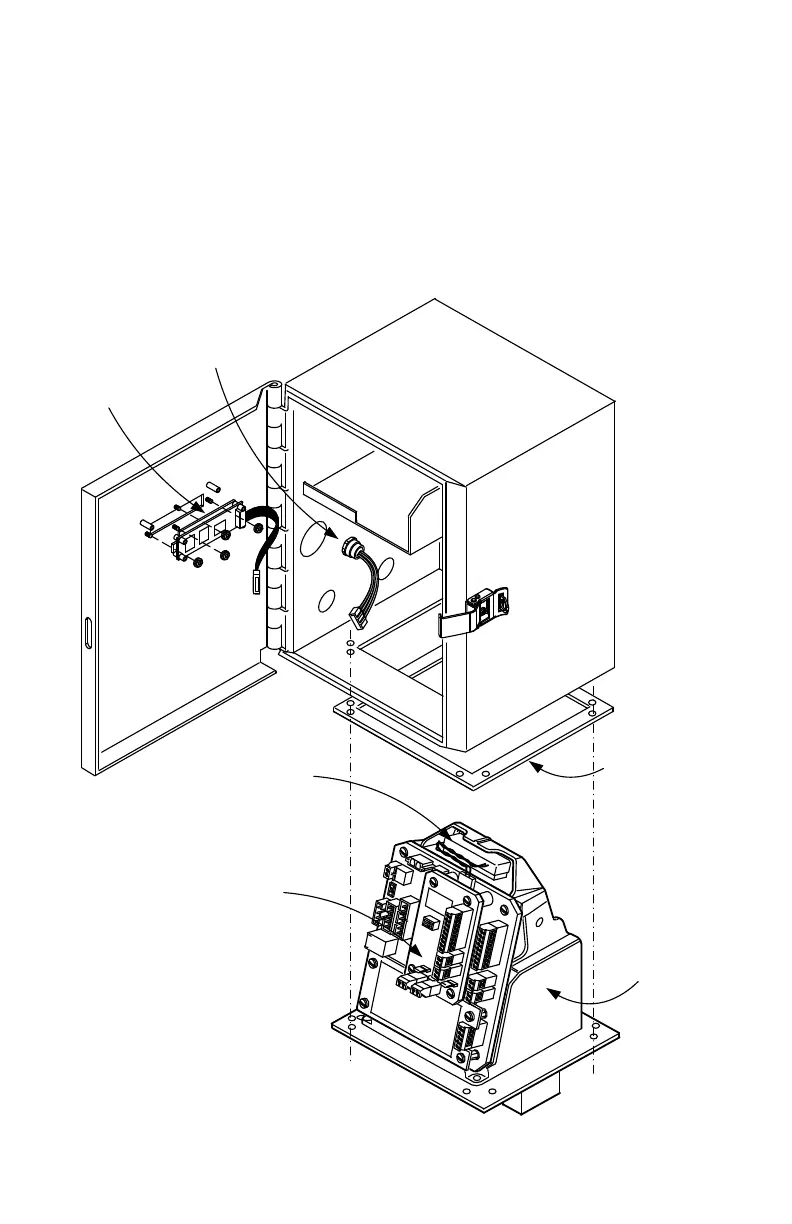

Figure 6: µFLO IMV replacement
