Operation Manual / TPL85-B14/-B15/-B16
Disassembly and assembly
8
Removing and installing the filter
silencer
8.4
Page 98
© Copyright 2016 ABB. All rights res
erved.
May 2016 HZTL2491_EN Revision B
Removing and installing the filter silencer
8.4
Remove insulation where necessary.

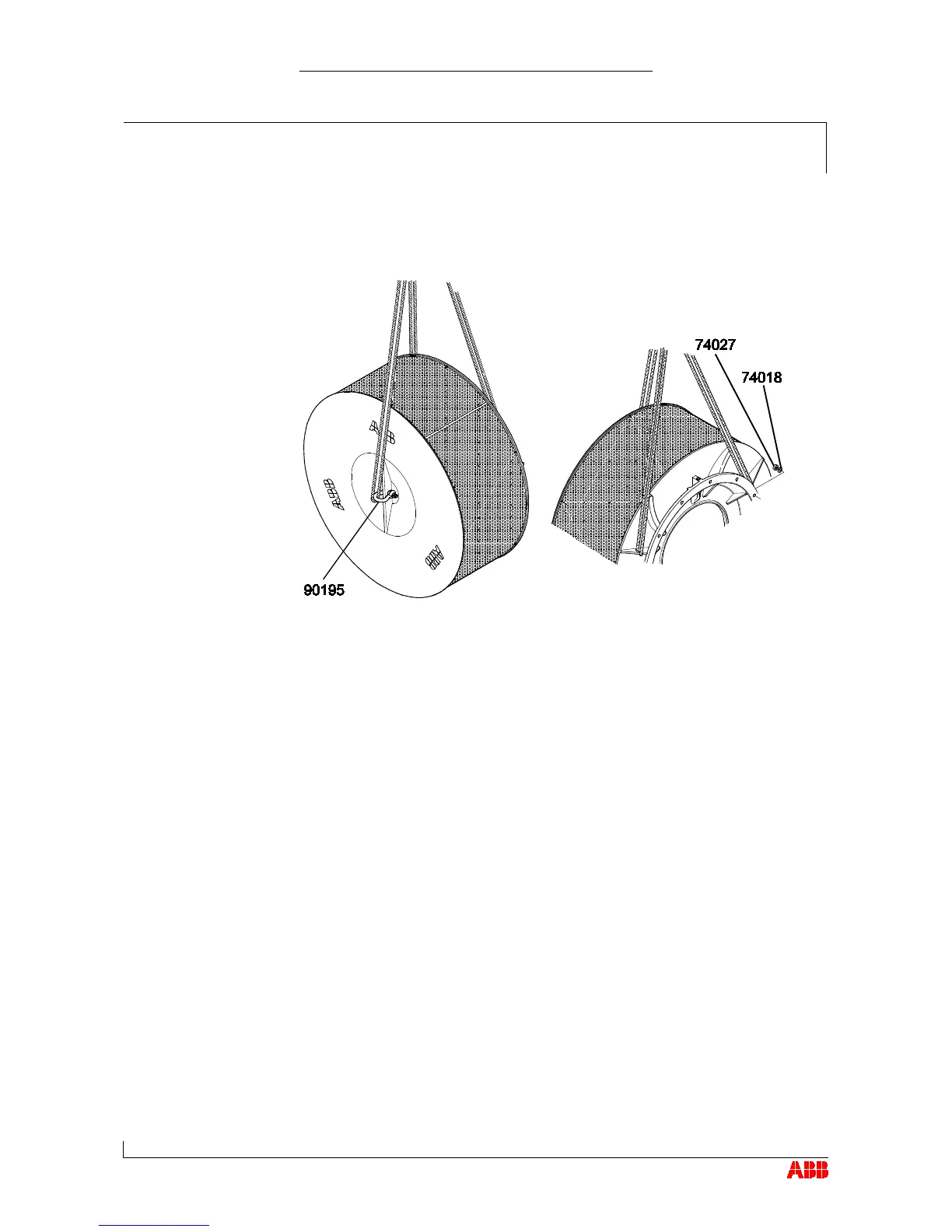

Secure the shackle (90195) to a rib / fin on the filter silencer.
Pass the lifting gear through the eyelets on the back side.
Unscrew the nuts (74027) and remove them together with the washers
(74018).
Remove the filter silencer and it set down to one side.
Install the filter silencer in the reverse order.
8.4
Removing the filter silenc-
er TPL77 - 91-B
Installing the filter silencer
