ABB TPL-B Series User Manual

Operation Manual / TPL85-B14/-B15/-B16
Disassembly and assembly
8
Removing gas inlet casing
8.7
Page 104
© Copyright 2016 ABB. All rights res
erved.
May 2016 HZTL2491_EN Revision B

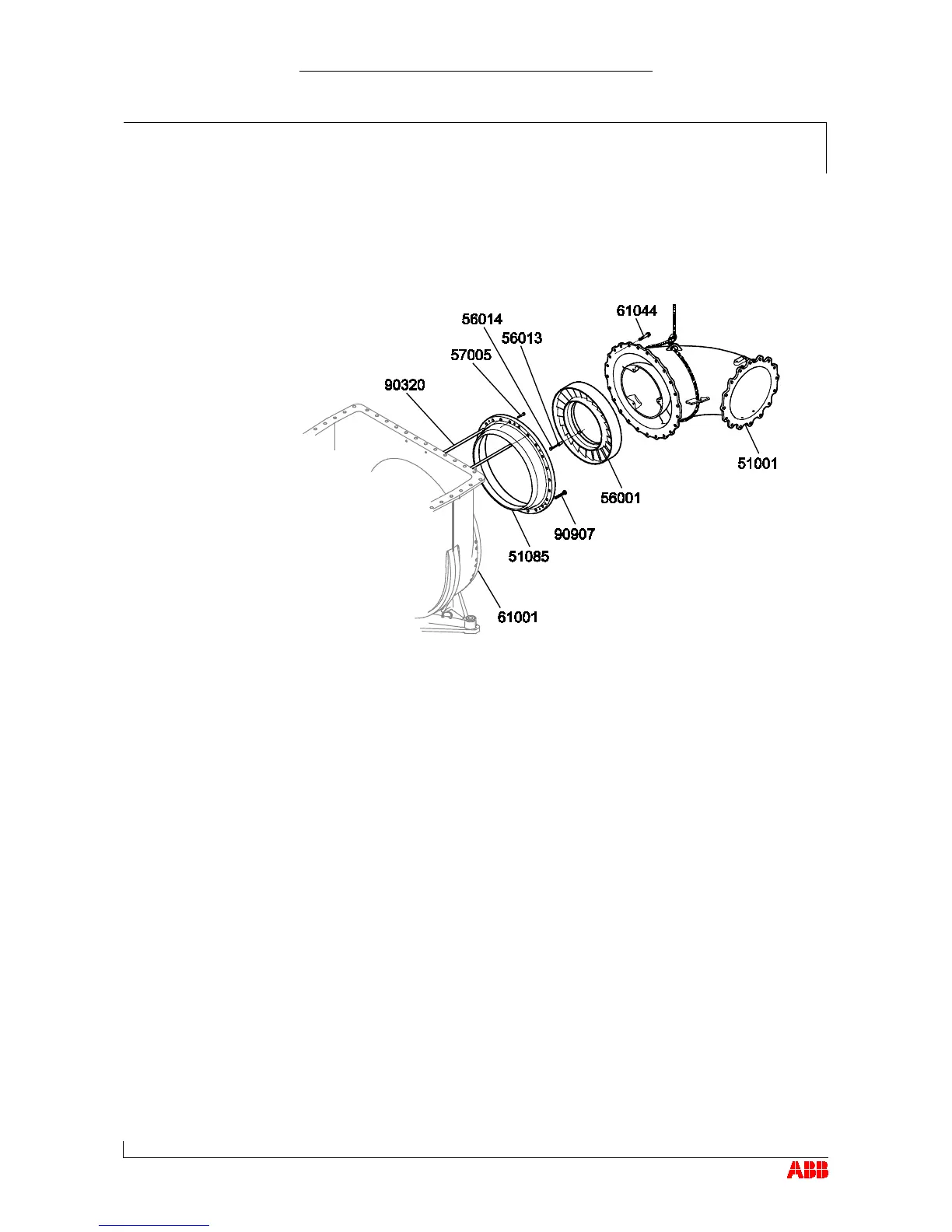

Removing gas inlet casing
8.7
 Remove insulation from gas inlet casing (51001).
 Loop lifting gear through (eylet) lugs on gas inlet casing.

Undo screws (61044) and remove gas inlet casing (51001) complete
with nozzle ring (56001).
 Remove screws (56014), sleeves (56013) and nozzle ring (56001).
 Undo and remove screws (57005).
 Fit two guide studs (90320).
 Press away cover ring (51085) using press-off screws (90901) and
remove over guide studs (90907).
8.7
