ABB TPL-B Series User Manual

Operation Manual / TPL85-B14/-B15/-B16
Disassembly and assembly
8
Removing internal part of compressor
casing
8.6
Page 103
© Copyright 2016 ABB. All rights reserved.
May 2016 HZTL2491_EN Revision B


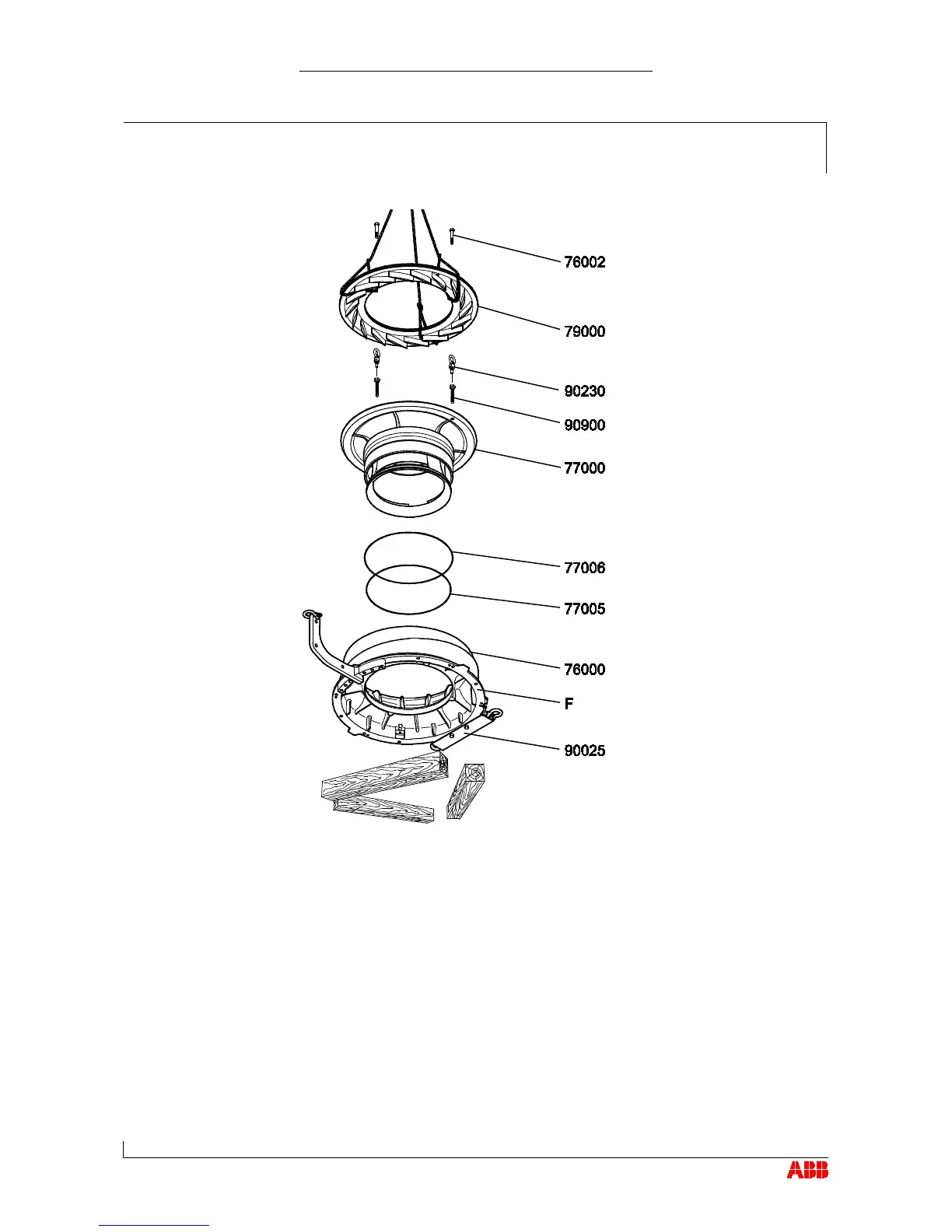

Remove screws (76002).
 Loop lifting gear around diffuser (79000) and remove diffuser.
 Carefully press off the wall insert (77000) using the press-off screws
(90900) and remove it using the swivel lifting eye (90230).
 Remove O-rings (77005, 77006).
Removing the diffuser
