ABB TPL-B Series User Manual

Operation Manual / TPL85-B14/-B15/-B16
Disassembly and assembly
8
Silencer casing
8.3
Page 95
© Copyright 2016 ABB. All rights reserved.
May 2016 HZTL2491_EN Revision B


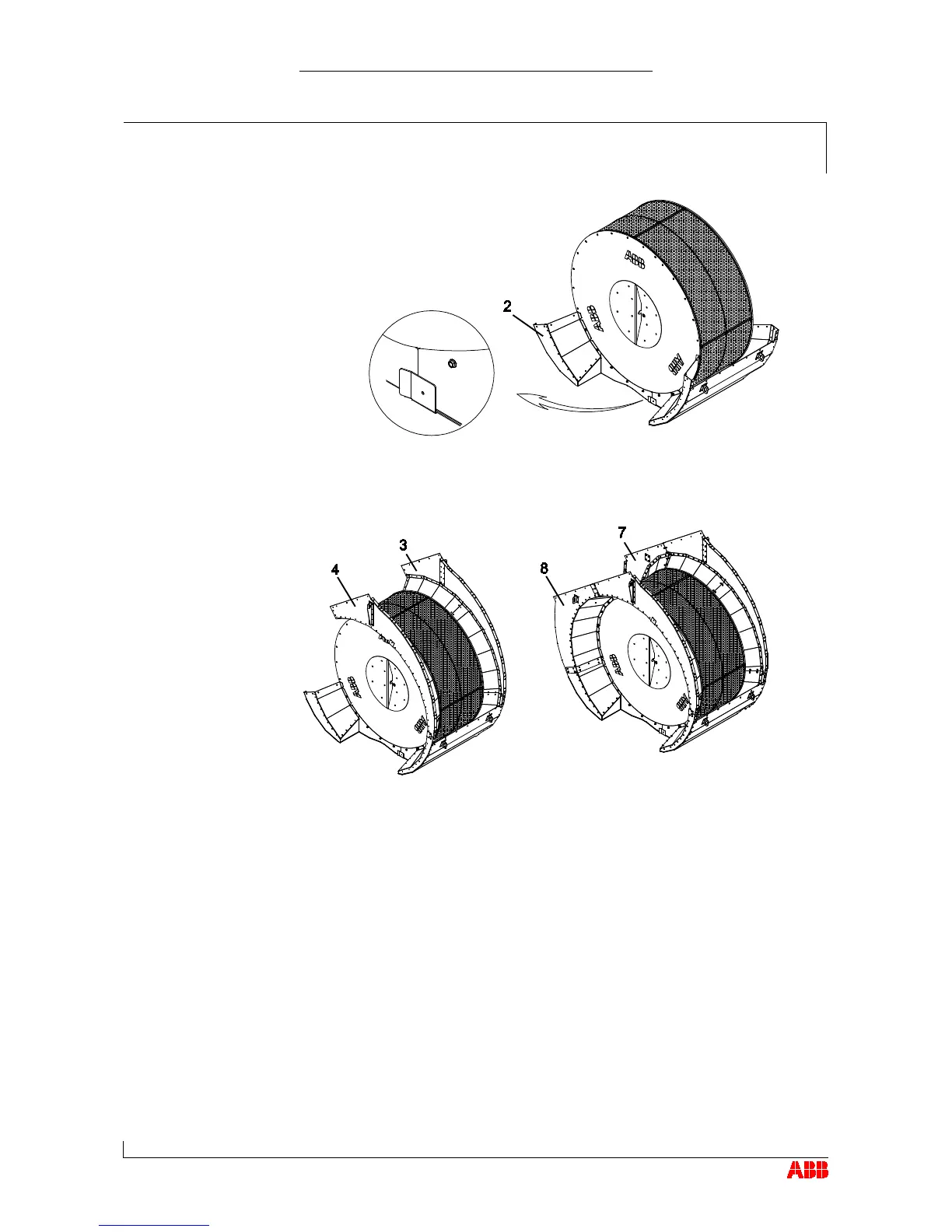

Fit bottom part (2) to filter silencer using screws.

Fit side parts (3) and (4) to filter silencer and to bottom part (1) using
screws.
 Fit side parts (7) and (8) to filter silencer, to bottom part (2) and to side
parts (3, 4) using screws.
