Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.8 Dismantling and fitting nozzle ring
at turbine end
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

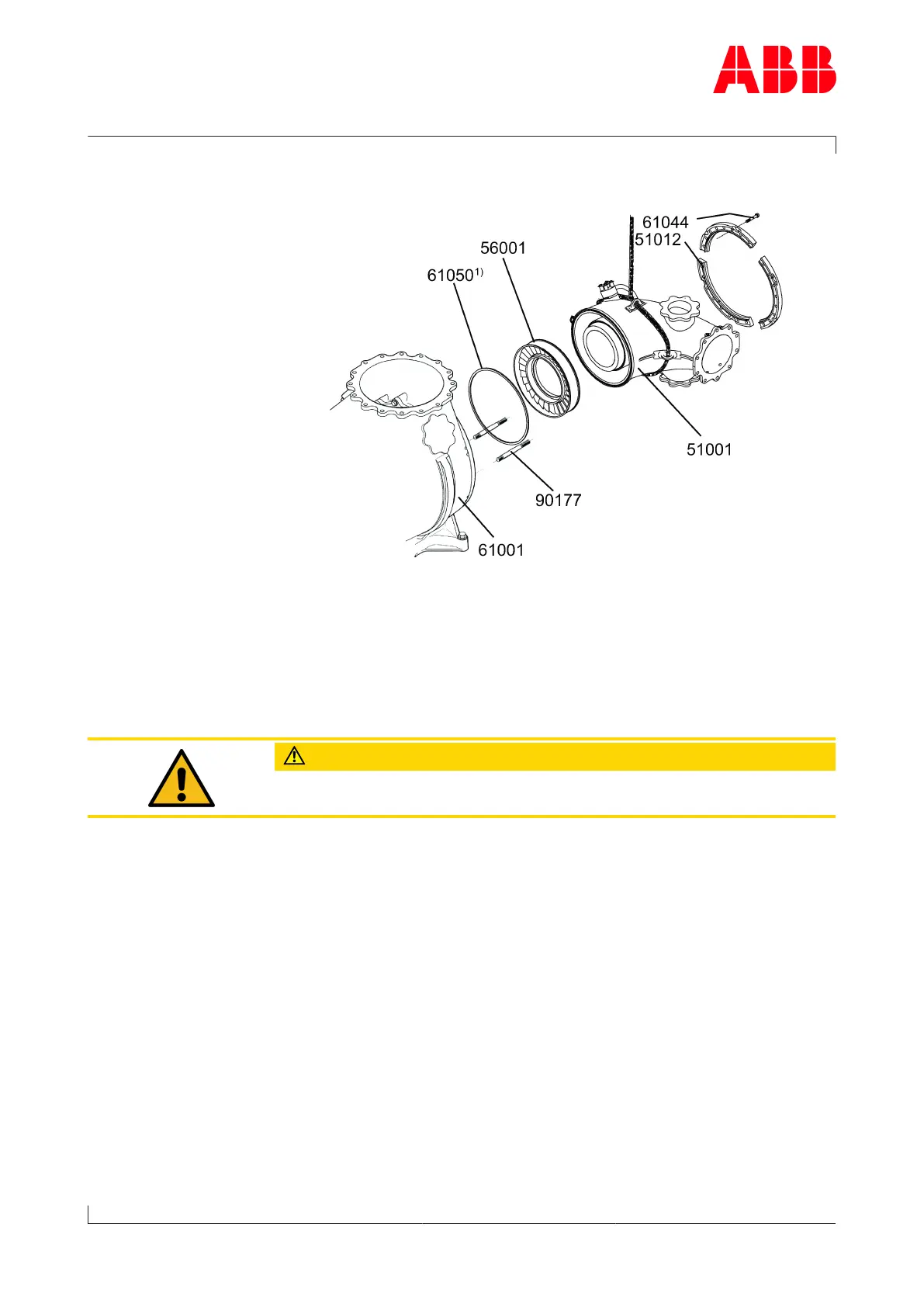

Segment connection disassembly
Fig.1
u Remove screws (61044) and segments (51012).
u Fit two studs (90177) in the bottom section.
u Pull gas inlet casing (51001) together with nozzle ring (56001) away
from gas outlet casing (61001) until the nozzle ring can be lifted out.
u Fully withdraw the gas inlet casing and remove it.
CAUTION
When setting down gas inlet casing, use suitable underlays.
1) If provided
u Remove gasket (61050).
Page 109 / 136
