Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly
8
Disassembling and assembling
turbocharger
8.3
Page 100
April 2015 HZTL2412_EN Revision E
Fitting the cartridge group
NOTICE
O-rings
Used O-rings must always be replaced with new ones. O-rings are only
available as a set (see chapter Spare parts).
NOTICE
Protruding insulation
The insulation on the turbine casing may protrude at the gas outlet side.
This can be pushed back in with a screw driver.


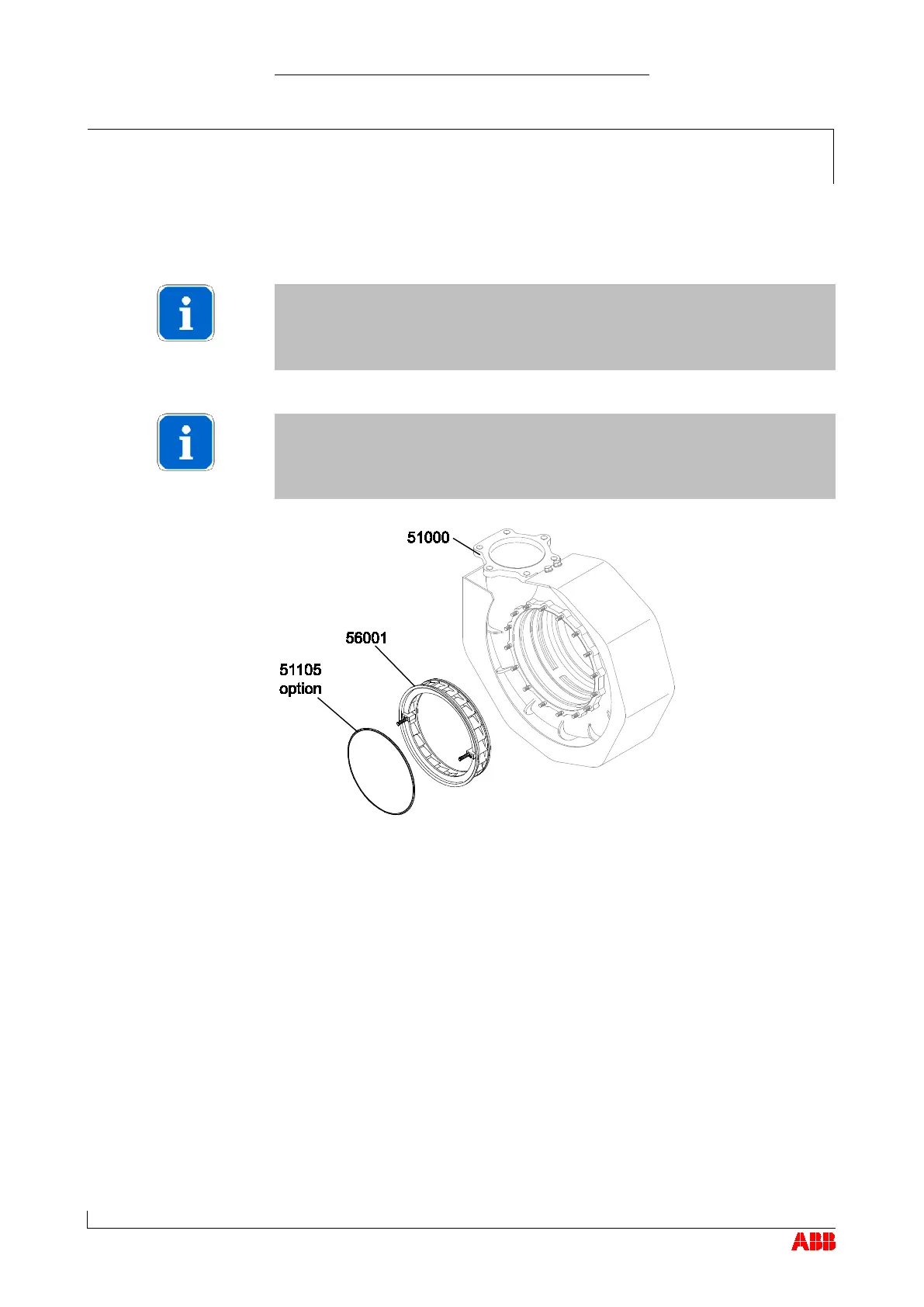

Push the nozzle ring (56001) into the turbine casing (51000) as far as
it will go.
 Insert the C-ring (51105) into the turbine casing and hold it in place
using high-vacuum grease.
If provided
