Operation Manual / TPS44-F.. - TPS61-F..
Disassembly and assembly
8
Disassembling and assem
bling
turbocharger
8.3
Page 101
April 2015 HZTL2412_EN Revision E
NOTICE
To ensure the nozzle ring is held in place during operation, it must be
clamped between the partition wall and the turbine casing.

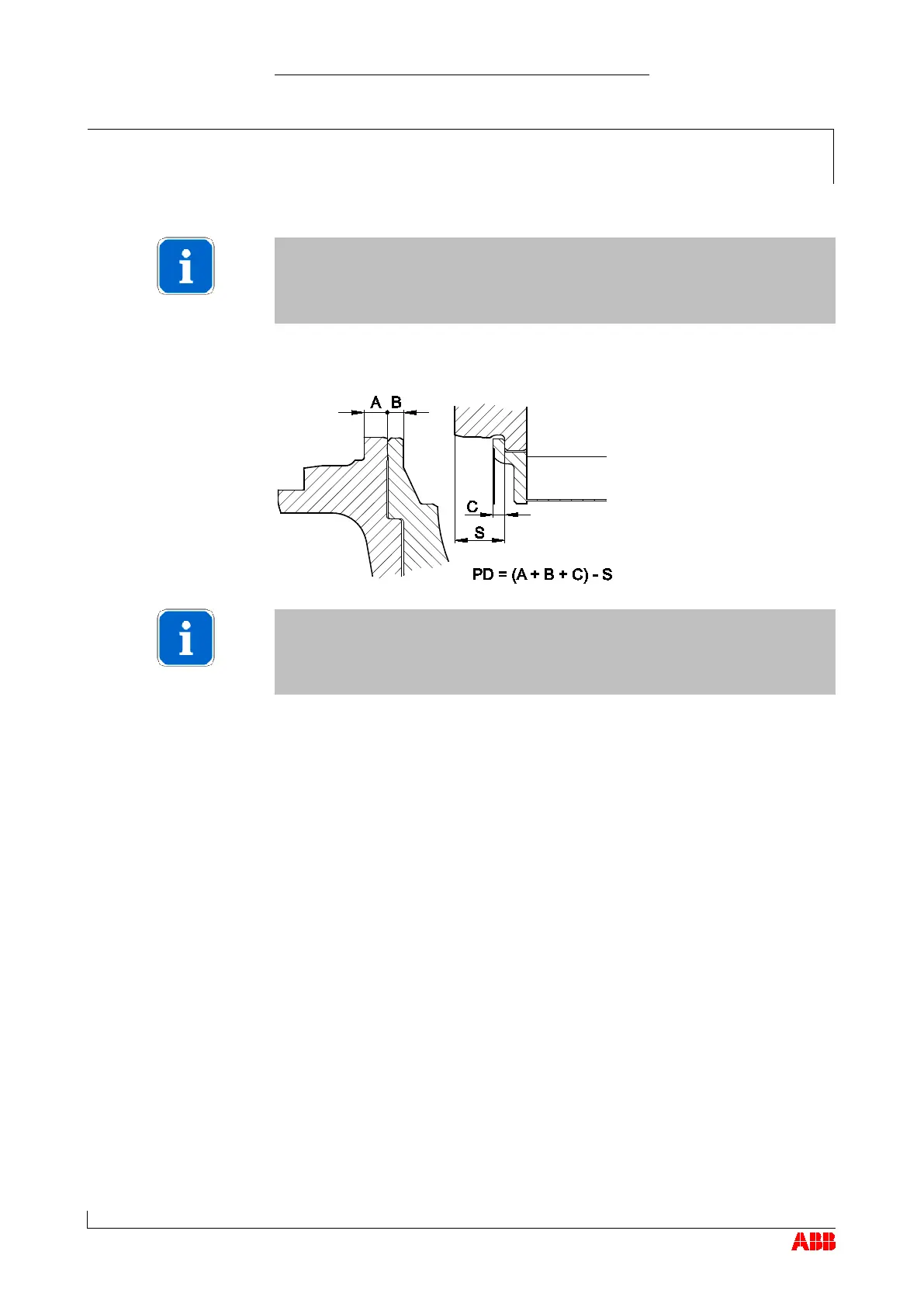

 Calculate the press fit (PD) as shown.
NOTICE
If the calculated value (PD) is less than 0.1 mm, an official ABB
Turbocharging Service Station must be contacted.
 Measure the axial and radial clearances (see the section Axial and
radial clearances).
Nozzle ring press fit for
single inlet turbine casing
© Copyright 2015 ABB. All rights reserved.
