Operation Manual / TPS44-F.. - TPS61-F..
8 Disassembly and assembly / 8.5 Radial clearances N and R
© Copyright 2020 . All rights reserved. HZTL2412_EN Rev.G March 2020

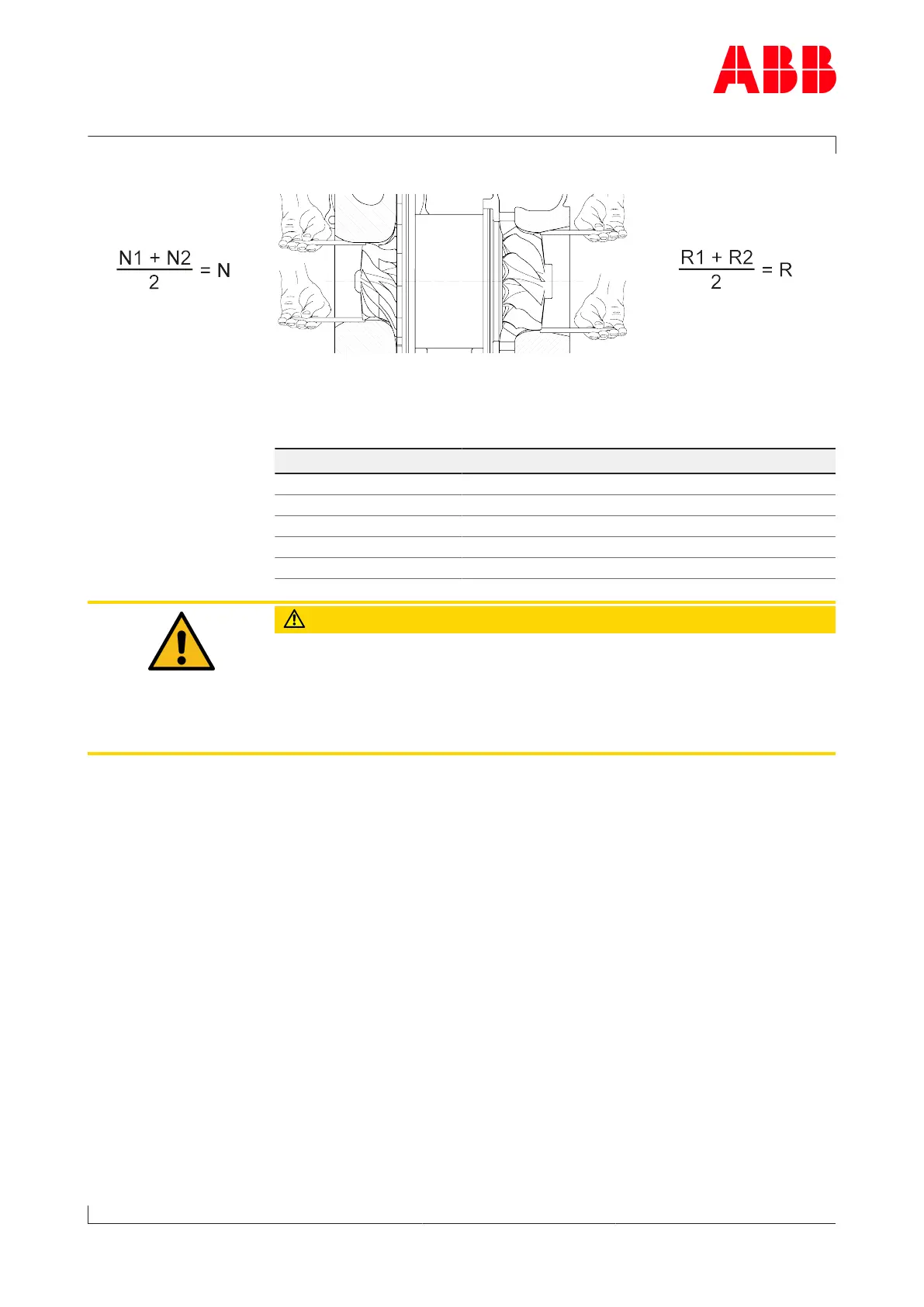

Measuring N and R
The mean values measured must be within the permissible values of the
radial clearance N and R.
Radial clearances N and R
Product N [mm] R [mm]
TPS44 0.15…0.49 0.36…0.67
TPS48 0.22…0.58 0.47…0.77
TPS52 0.30…0.67 0.59…0.92
TPS57 0.40…0.86 0.75…1.11
TPS61 0.50…0.94 0.90…1.32
CAUTION
Clearances out of tolerance
Clearances out of tolerance and excessively worn components can be
the cause of serious damage to machinery and property.
u Have components assessed and, if necessary, replaced by an ABB
Turbocharging Service Station.
Page 99 / 113
