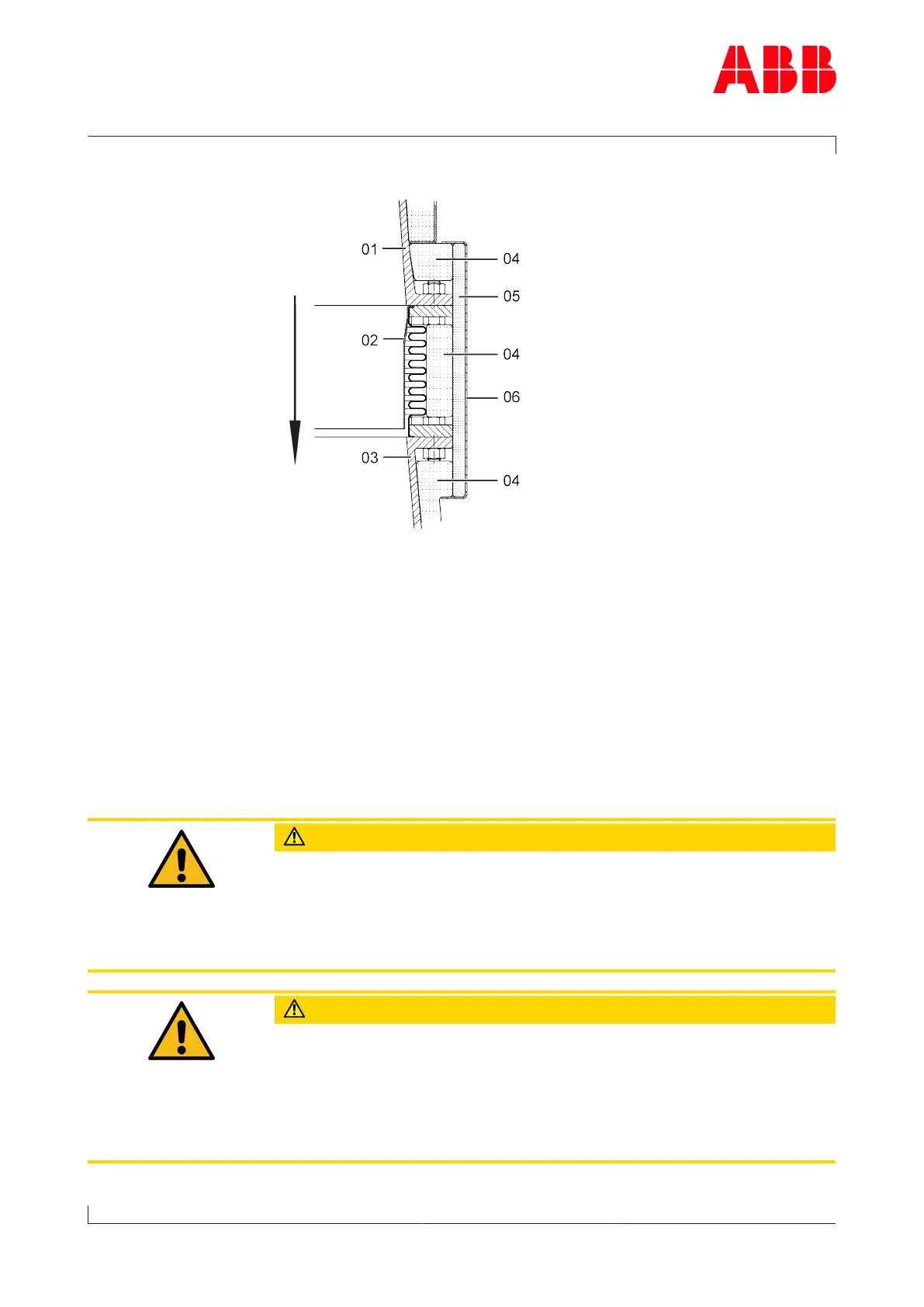

Suggestion for noise insulation of the bellows
01 Compressor casing 04 Insulation pads
02 Bellows 05 Insulation mat (at least 15 mm)
03 Charge air duct / scavenging
air line
06 Sheet metal cover
4.2 Servicing work
Service work to be carried out during operation involves visual checks,
monitoring, measuring, inspection work and functional checks. It is then
possible for changes to the turbocharger to be identified and rectified.
In this way, it can be ensured that the turbocharger remains in full work-
ing order.
CAUTION
Service intervals
Service work on the turbocharger that is neglected or carried out too
late can lead to excessive contamination and wear as well as operating
failures.
u Carry out service work at specified time intervals.
CAUTION
Shortened service intervals
Despite observance of the service intervals, unusual loads, such as sev-
eral start-stops a day, harsh environmental factors, poor fuel quality or
heavy installation vibration can lead to premature machine damage.
u A shortened service interval must be arranged with ABB Turbochar-
ging.
