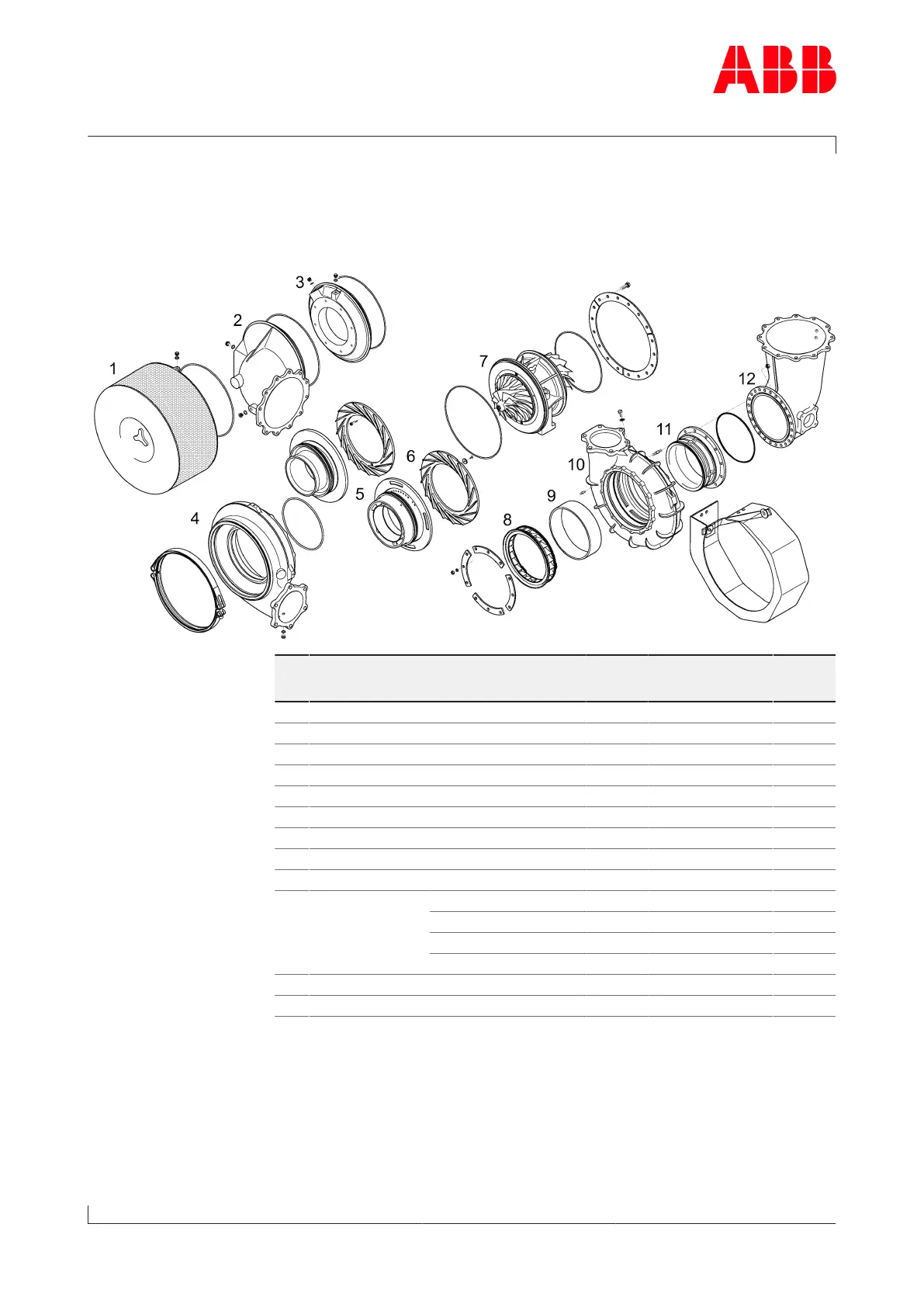

8.2 Module weights
The specified weights of individual parts or assemblies are guides roun-
ded off to the next highest value.
Description
TPS44
[kg]
TPS48
[kg]
TPS52
[kg]
TPS57
[kg]
TPS61
[kg]
1Filter silencer 15 19 30 40 65
2Radial air suction branch 5 6 8 11 21
3Axial air suction branch 3 4 4 6 9
4Compressor casing 17 24 35 55 90
5Wall insert 4 7 10 13 30
6Diffuser 2 2 3 6 10
7Cartridge group 25 35 50 85 140
8Nozzle ring 1 1 2 3 6
9Burst ring 1 2 3 5 12
10Turbine casing
with external
burst protec-
tion
1 inlet 30 35 50 80 130
2 inlets 30 35 50 90 150
3 inlets - - 55 95 170
4 inlets - - - 95 170
11Gas outlet flange 4 4 8 16 30
12Exhaust manifold 16 18 25 40 60
Page 81 / 113
