Operation Manual / TPS44-F.. - TPS61-F..
8 Disassembly and assembly / 8.1 Introduction
© Copyright 2020 . All rights reserved. HZTL2412_EN Rev.G March 2020

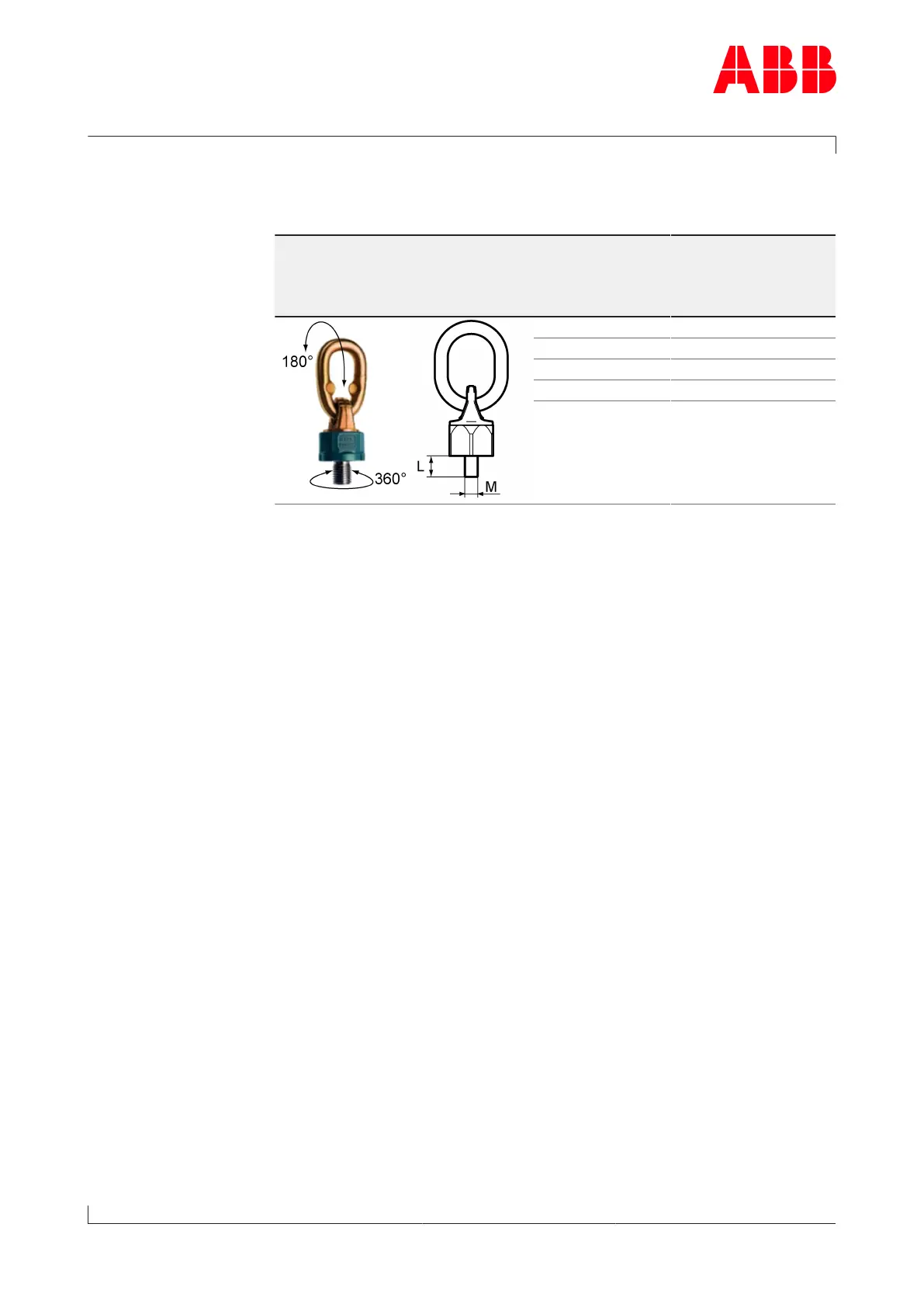

Swivel lifting eye to be used
A swivel lifting eye is required to lift loads safely (not supplied by ABB).
Swivel lifting eye Product Thread
M
Length
L
Minimum
load limit
(loading ca-
pacity)
TPS44 M8 13 mm 150 kg
TPS48 M10 17 mm 250 kg
TPS52 M10 17 mm 250 kg
TPS57 M12 21 mm 350 kg
TPS61 M12 21 mm 500 kg
