ABB TPS48-F Series User Manual

Operation Manual / TPS44-F.. - TPS61-F..
4 Operation / 4.4 Speed measurement
© Copyright 2020 . All rights reserved. HZTL2412_EN Rev.G March 2020

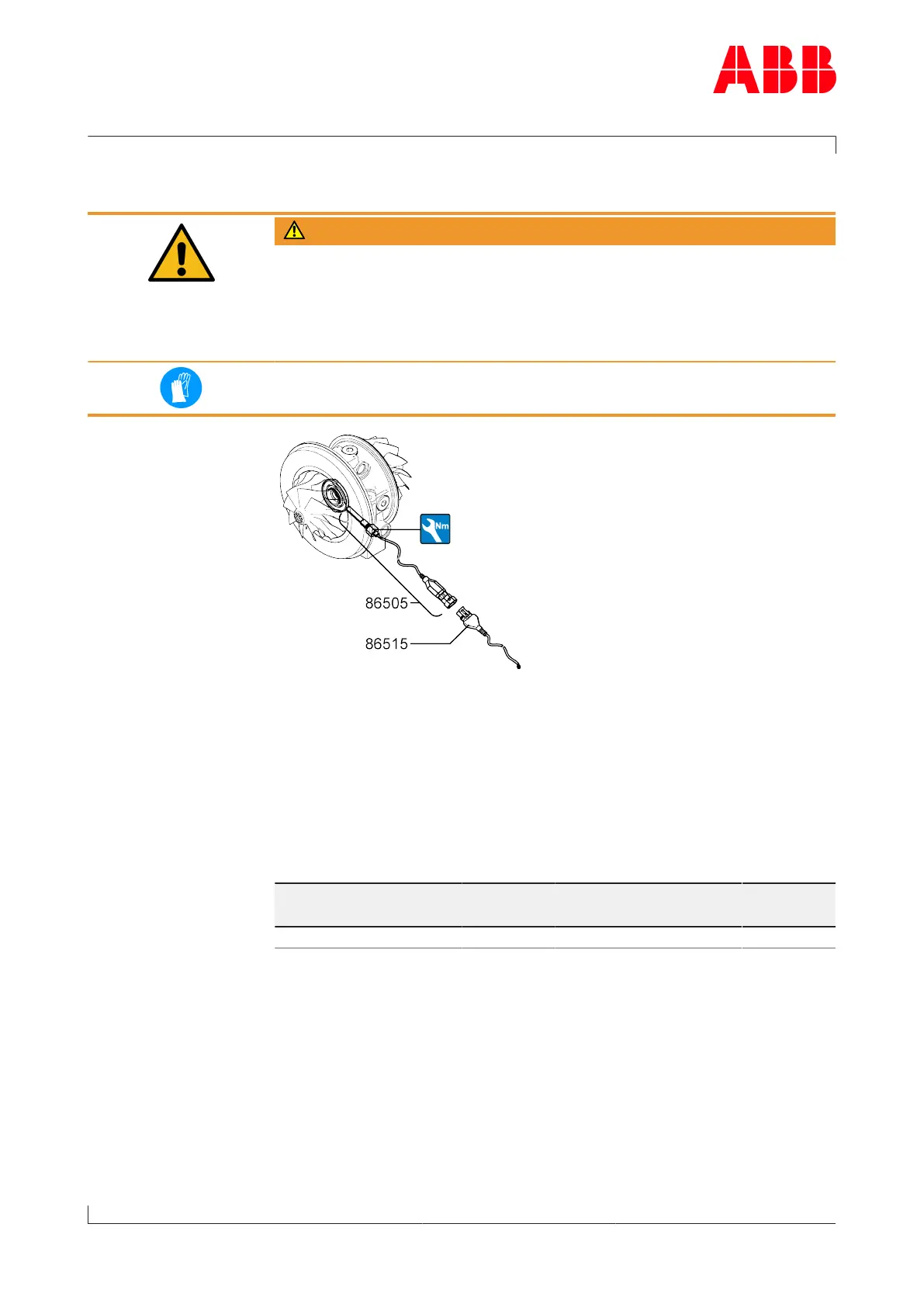

4.4.2 Replacing the speed sensor
WARNING
Hot cable connector and hot speed sensor
Risk of burning. During operation, the cable connector and the speed
sensor can reach temperatures exceeding 100°C.
u Wear safety gloves when removing the cable connector and speed
sensor.
Wear safety gloves to protect against thermal hazards.
u Reduce engine performance to the idling speed, then stop the engine.
u Switch off the lubricating oil supply to the turbocharger.
u Disconnect the cable connector from the speed sensor.
u Screw out defective speed sensor.
u Screw in a new speed sensor up to the limit block.
u Adhere to tightening torque.
Part num-
ber
TPS44 TPS48 TPS52 TPS57 TPS61
86505 15Nm 15Nm 15Nm 15Nm 15Nm
