5.4.2 Cleaning the filter silencer

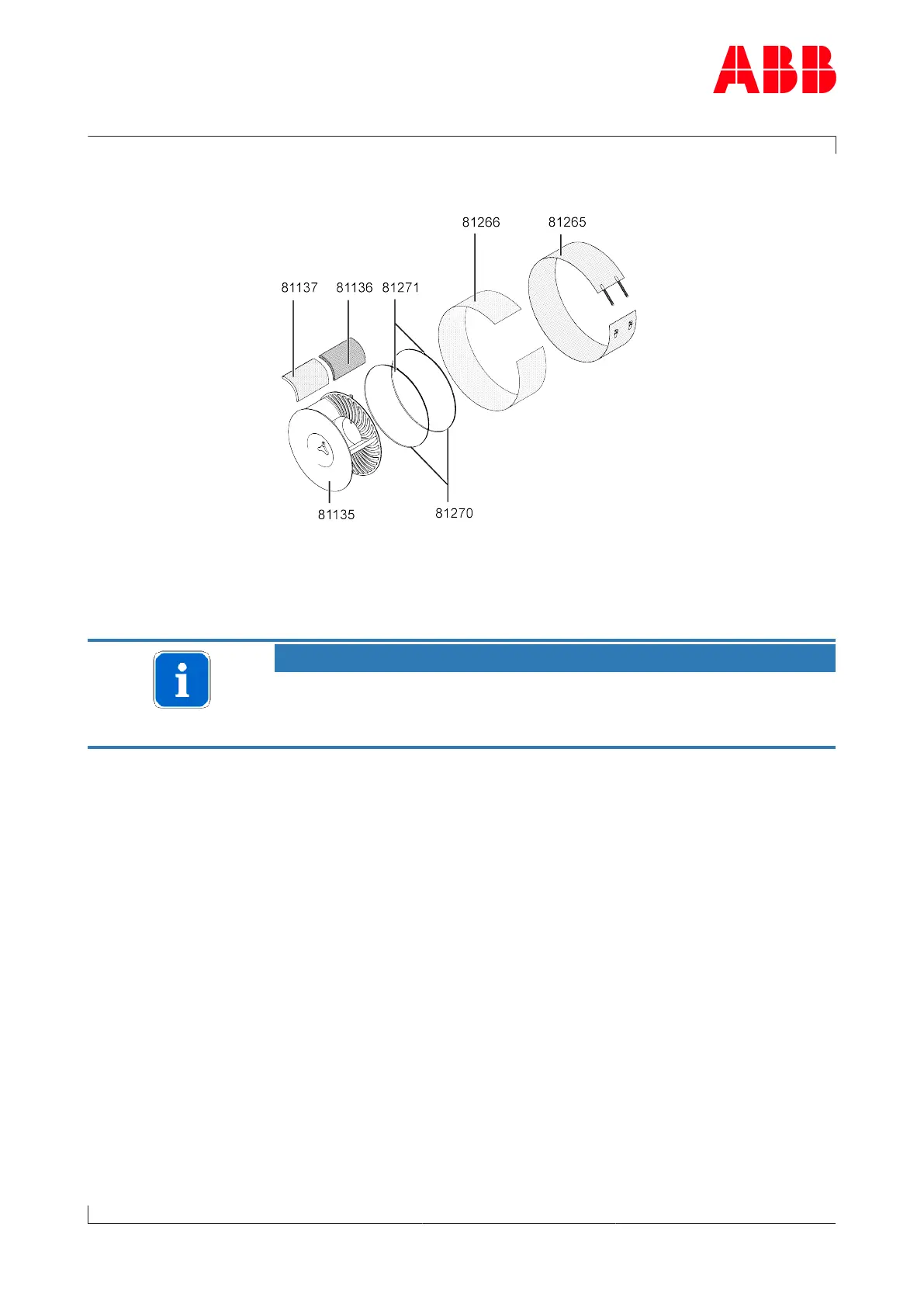

81135Filter silencer body 81266Cover grid
81136Absorption segment 81270Tension band
81137Sheet-metal covering 81271Lock
81265Filter ring
NOTICE
Disassembly and assembly
The procedure for disassembly and assembly of the filter silencer is de-
scribed in the chapter entitled Disassembly and Assembly.
Cleaning the filter ring (if provided)
u Remove filter ring (81265).
u Clean filter ring (81265) as required or every 500 operating hours, and
replace after the fifth cleaning operation at the latest.
The degree of contamination of the filter ring depends on the cleanli-
ness of the air that is drawn in.
u Wash filter ring (81265) using water containing light-duty detergent
or, if very heavily contaminated, soak it while squeezing carefully.
Rinse in cold water. Avoid rough handling (do not use a water jet).
u Allow the filter ring to dry out completely before assembly.
u Dispose of dirty water and gentle detergents in accordance with valid
local regulations.
Cleaning the absorption segments
u Loosen the tension bands (81270).
u Remove the cover grid (81266).
