Operation Manual / TPS44-F.. - TPS61-F..
8 Disassembly and assembly / 8.3 Disassembling and assembling tur-
bocharger
© Copyright 2020 . All rights reserved. HZTL2412_EN Rev.G March 2020

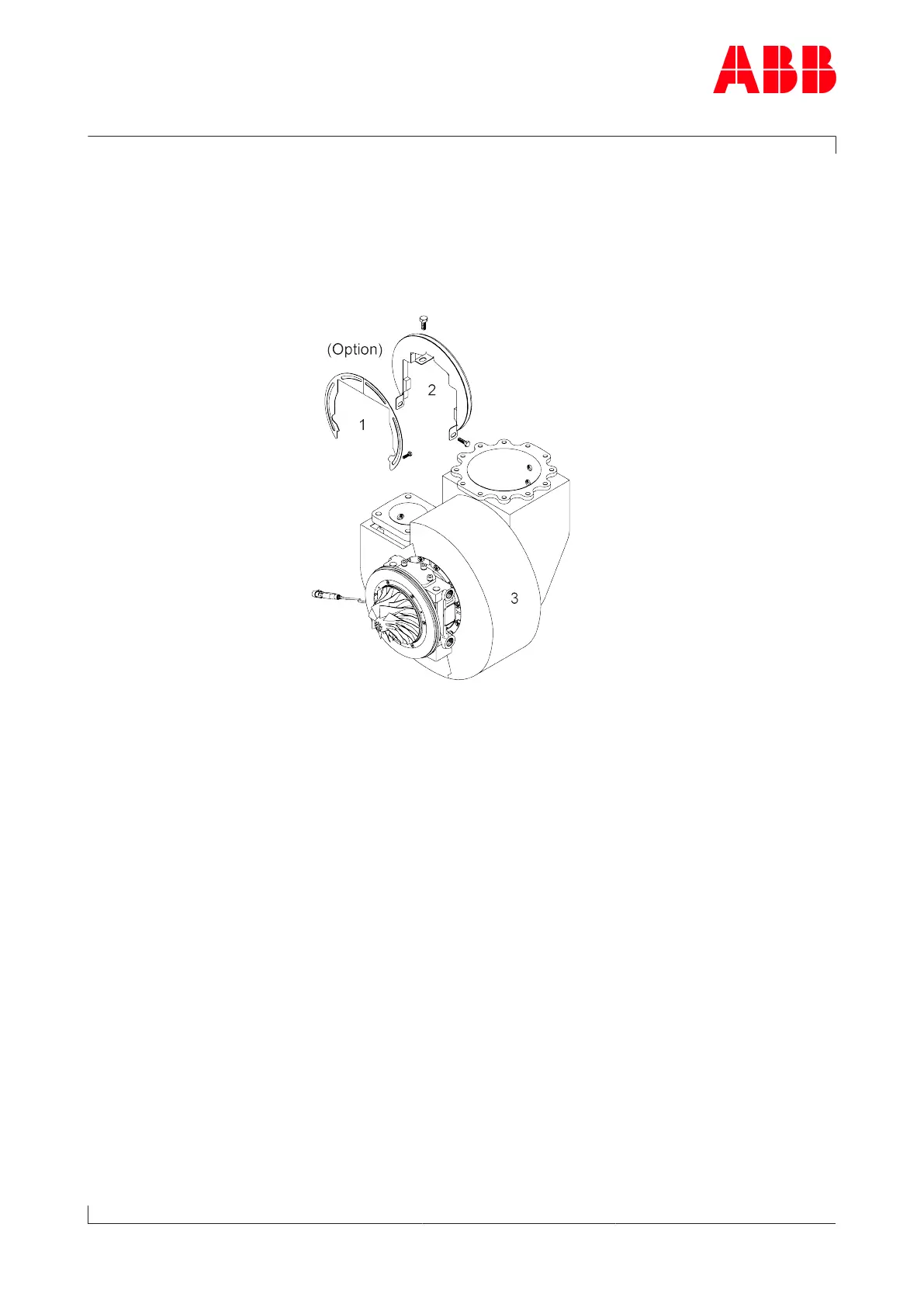

Removing the insulation
If provided
u Loosen and remove the screws for the insulation plates (1, 2).
u If provided: Remove the insulation plates (1, 2).
u Remove the remaining screws for the insulation (3).
u Remove the insulation (3).
