Operation Manual / TPS44-F.. - TPS61-F..
8 Disassembly and assembly / 8.3 Disassembling and assembling tur-
bocharger
© Copyright 2020 . All rights reserved. HZTL2412_EN Rev.G March 2020

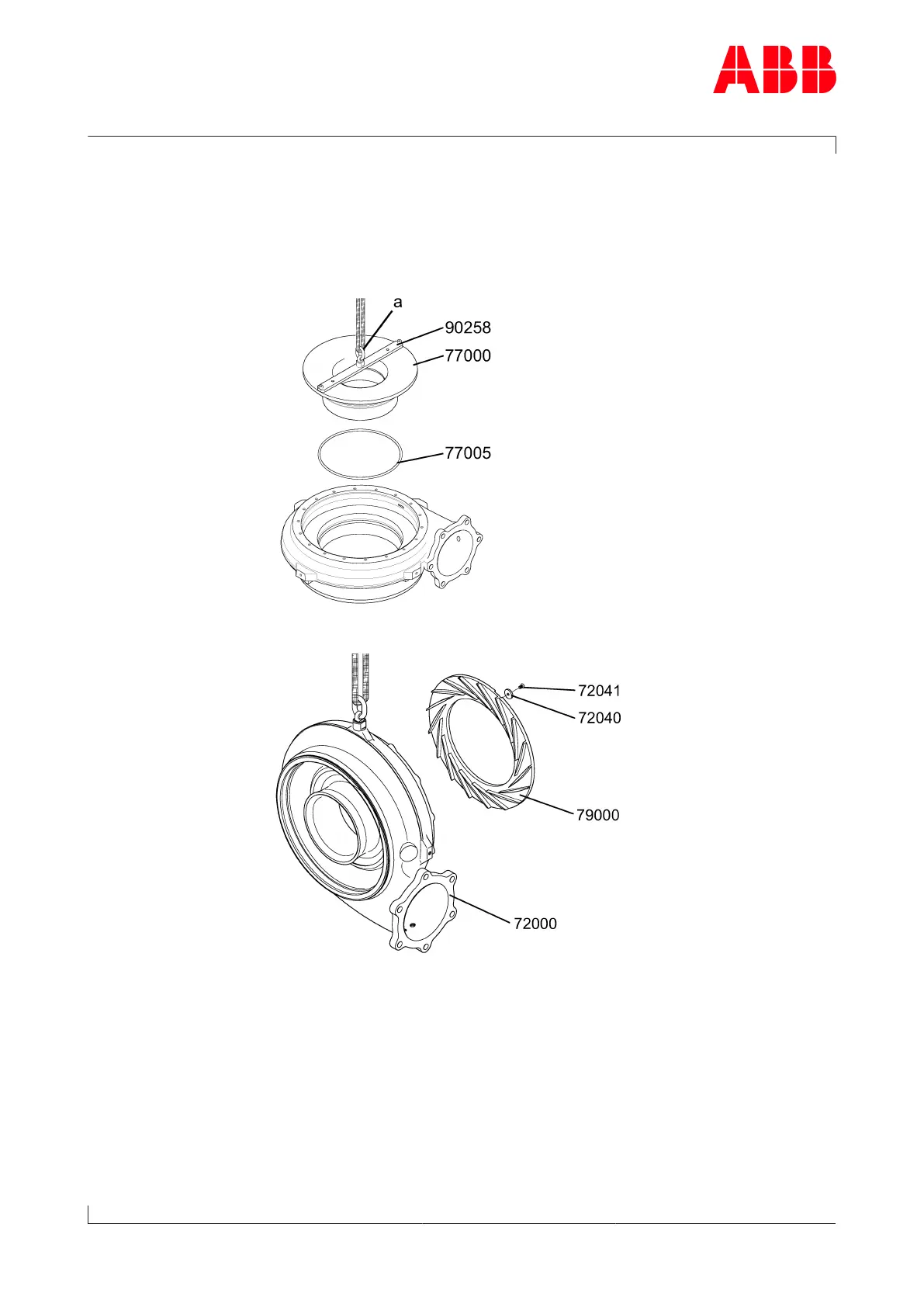

TPS61 wall insert removal
u Fasten lifting beam (90258) to wall insert.
u Fasten swivel lifting eye (a) to lifting beam.
u Remove wall insert (77000) using lifting gear.
Disassembly of diffuser
TPS..-F31/32 / FV31/32
u Loosen screws (72041) and remove them together with lockwashers
(72040) and diffuser (79000) from compressor casing (72000).
Installing compressor casing
u Refit wall insert (77000) and O-ring (77005) in the reverse order.
Page 85 / 113
