Operation Manual / TPS44-F.. - TPS61-F..
8 Disassembly and assembly / 8.3 Disassembling and assembling tur-
bocharger
© Copyright 2020 . All rights reserved. HZTL2412_EN Rev.G March 2020
NOTICE
To ensure the nozzle ring is held in place during operation, it must be
clamped between the partition wall and the turbine casing.

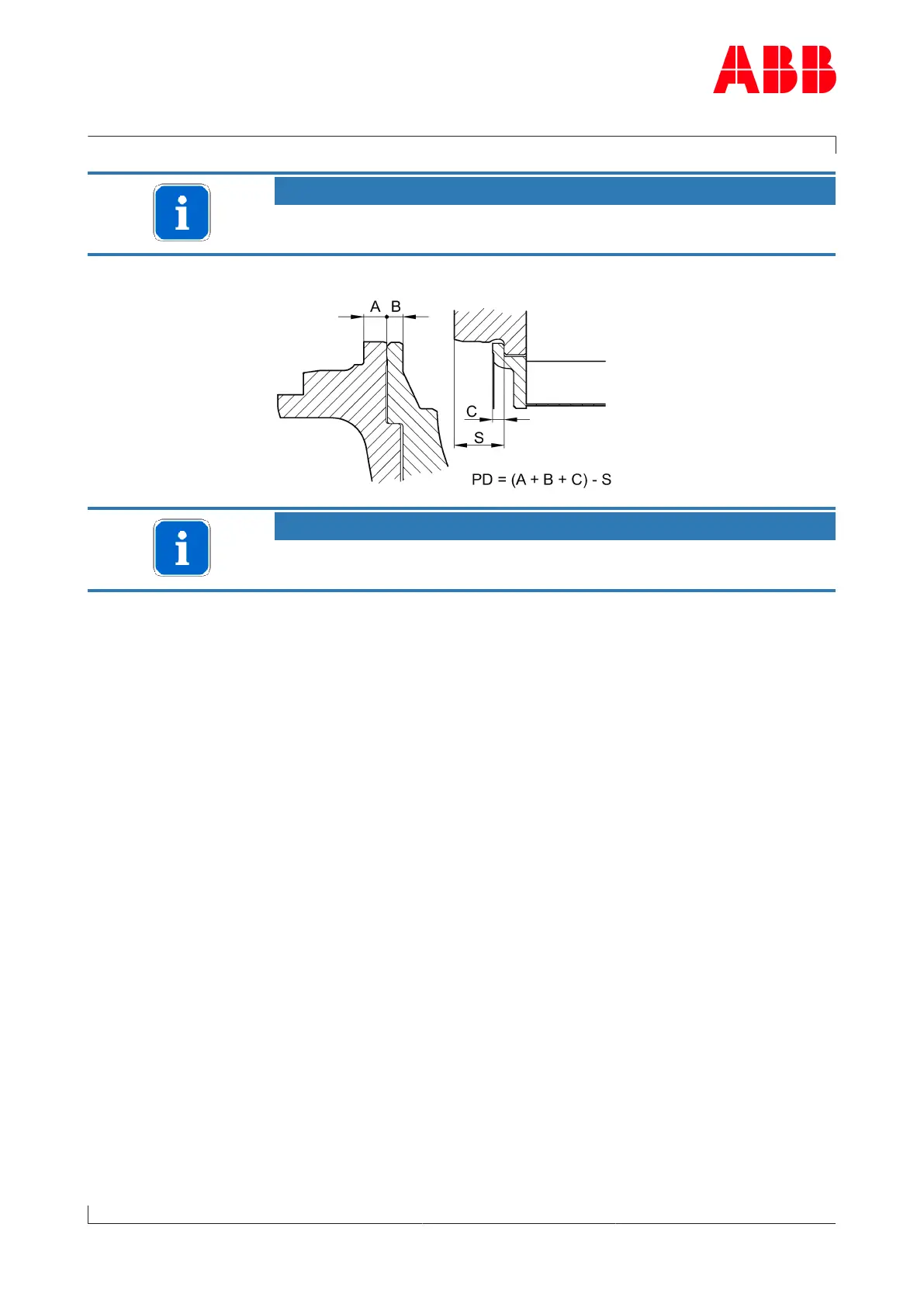

Nozzle ring press fit for
single inlet turbine casing
u Calculate the press fit (PD) as shown.
NOTICE
If the calculated value (PD) is less than 0.1 mm, an official ABB Tur-
bocharging Service Station must be contacted.
u Measure the axial and radial clearances (see the section Axial and ra-
dial clearances).
