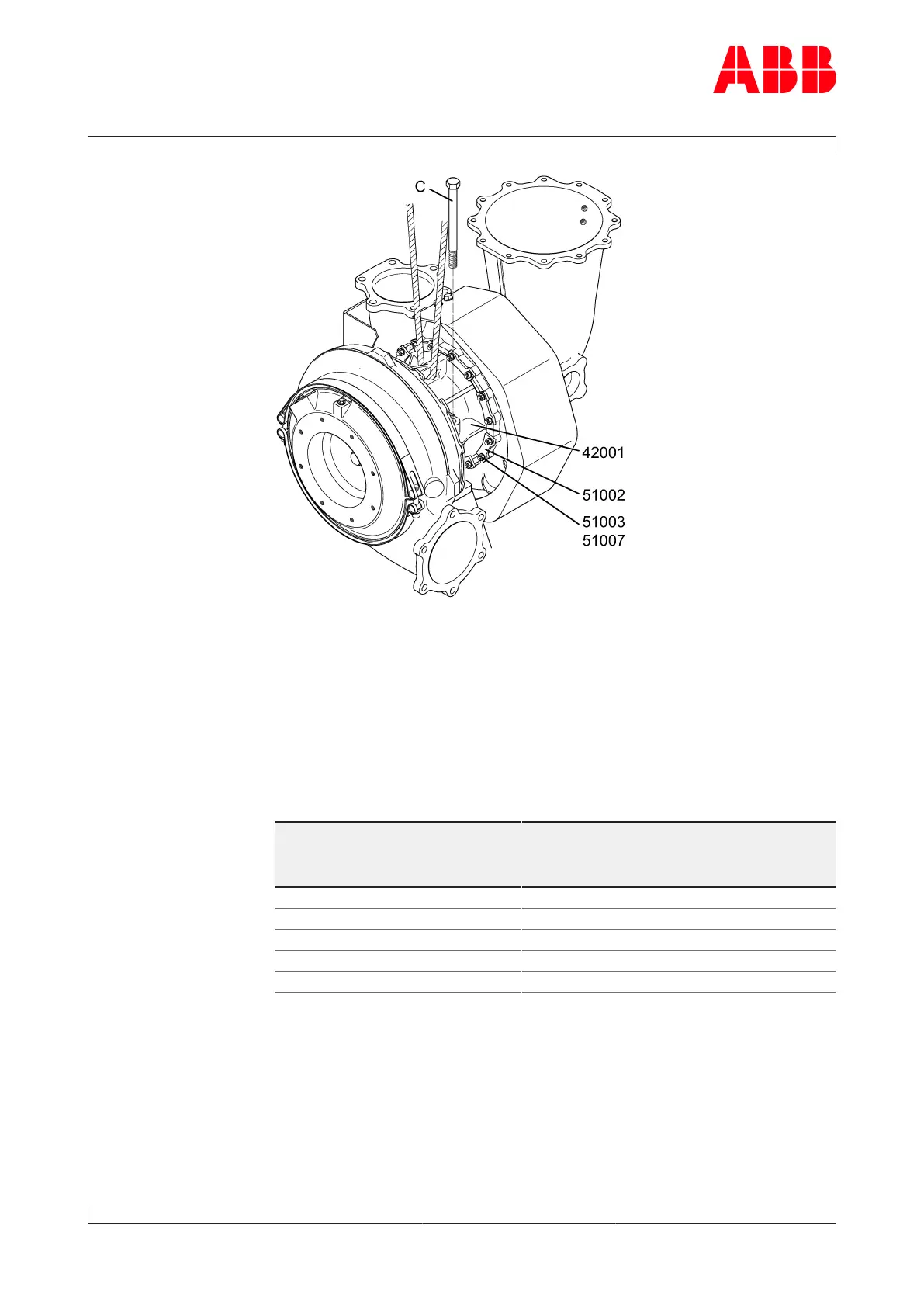

u Fasten the cartridge group using fastening strips (51002), Verbus
Ripp® washers (51003) and nuts (51007) (also see the chapter entitled
Table of tightening torques).
u Fasten the bearing casing (42001) using the fixing screws (C).
u Tighten the fixing screws (C) to the torques listed in the following
table.
**) For the assembly of the turbocharger on the engine support, the
threads of the screws and screw heads must be lightly oiled (assumed
coefficient of friction µ = 0.12 for the tightening torque).
Product Hole in the bearing
casing
[mm]
Fixing screws C [mm] Tightening
torques [Nm] **)
TPS44 Ø 17 M16 230
TPS48 Ø 17 M16 230
TPS52 Ø 21 M20 455
TPS57 Ø 21 M20 455
TPS61 Ø 25 M24 780
