ABB TTF200 - Pin Assignment

TTF200 FIELD-MOUNT TEMPERATURE TRANSMITTER | OI/TTF200-EN REV. B 21
Pin assignment
A11164-01
+
-
+
-
J
J
J
ABC DEF GH
+
-
3
4
1
2
3
1
2
3
1
3
4
1
2
3
1
2
3
11
2
1
2
3
1
2
4
L
K
J
I
A Potentiometer, four-wire circuit
B Potentiometer, three-wire circuit
C Potentiometer, two-wire circuit
D RTD, four-wire circuit
E RTD, three-wire circuit
F RTD, two-wire circuit
G Voltage measurement
H Thermocouple
I Sensor terminals (of measuring inset)
J 4 to 20 mA HART®
K Interface for Type BS LCD indicators
L Ground terminals for sensor and supply- / signal cable shielding
connection

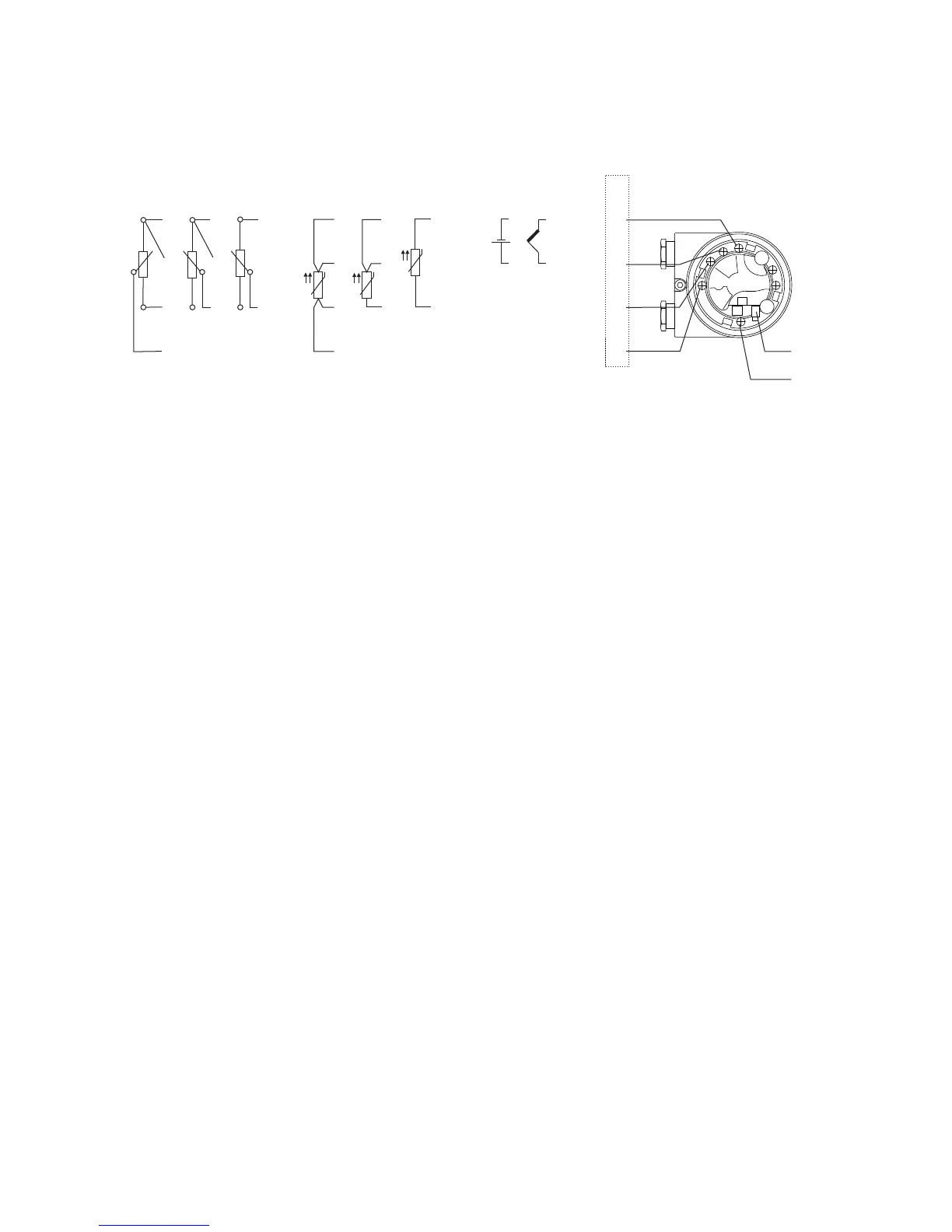

Figure 20: TTF200 terminals
