18 Electro-pneumatic positioner TZID 42/18-54 EN
Mounting TZID shifted by 90° to an actuator turning counterclockwise
• Undo the setscrews on the
shaft adapter.
• Shift the adapter by 90°, as
shown in Fig. 10.
• Re-fasten the setscrews.
• Couple the positioner’s
adapter with the rotary actu-
ator’s shaft.
• Turn TZID clockwise by
approx. 15° (siehe Fig. 11).
• Fasten TZID with screws.

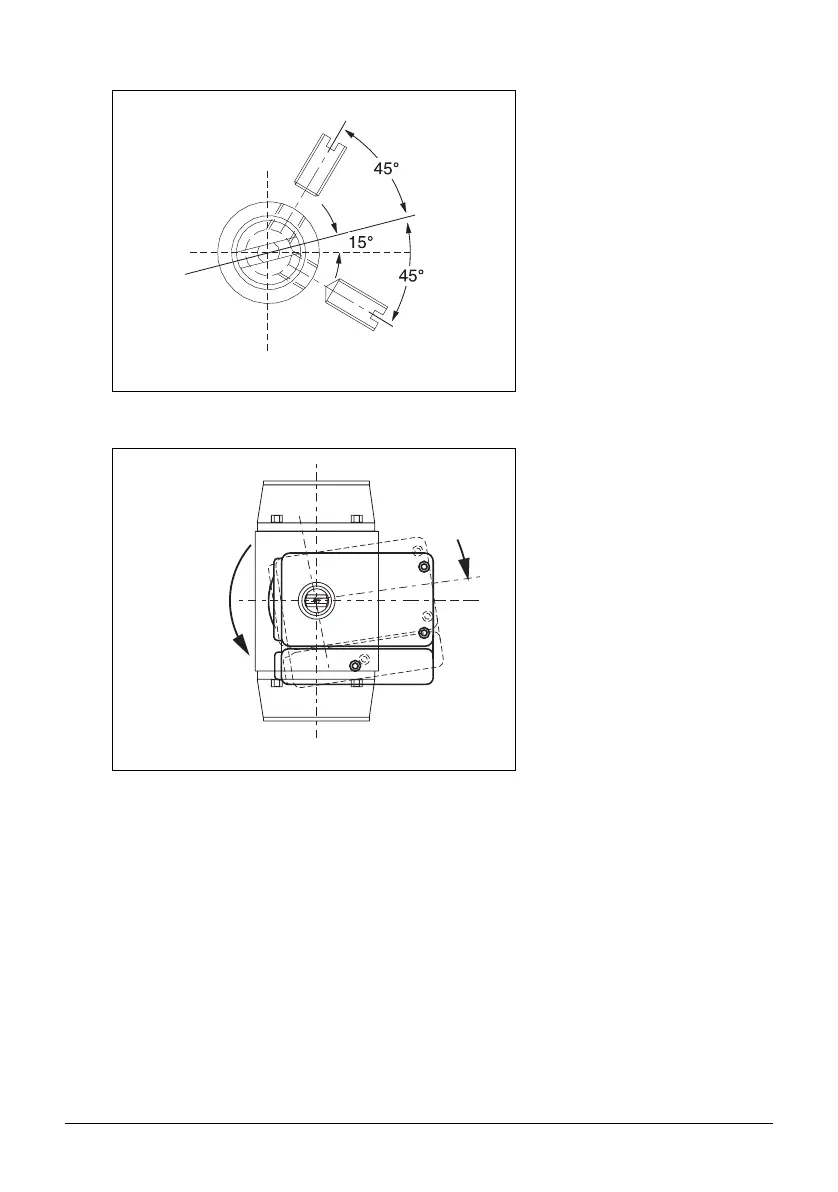

Fig. 10 Adapter position (shifted by 90°)
Setscrew with
flat point
Setscrew with
cone point
Counterclockwise
rotation of the
actuator
Clockwise rotation of
the positioner
Fig. 11 Mounting TZID to an actuator turning
counterclockwise, shifted by 90°
