20 Electro-pneumatic positioner TZID 42/18-54 EN
Mounting TZID shifted by 90° to an actuator turning clockwise
The TZID positioner is prepared
for this type of mounting when it
is delivered. No adapter settings
are required.
• Couple the positioner’s
adapter with the rotary actu-
ator’s shaft.
• Turn TZID clockwise by
approx. 105° (see Fig. 15).
• Fasten TZID with screws.
Setscrew
with flat point
Setscrew
with cone point

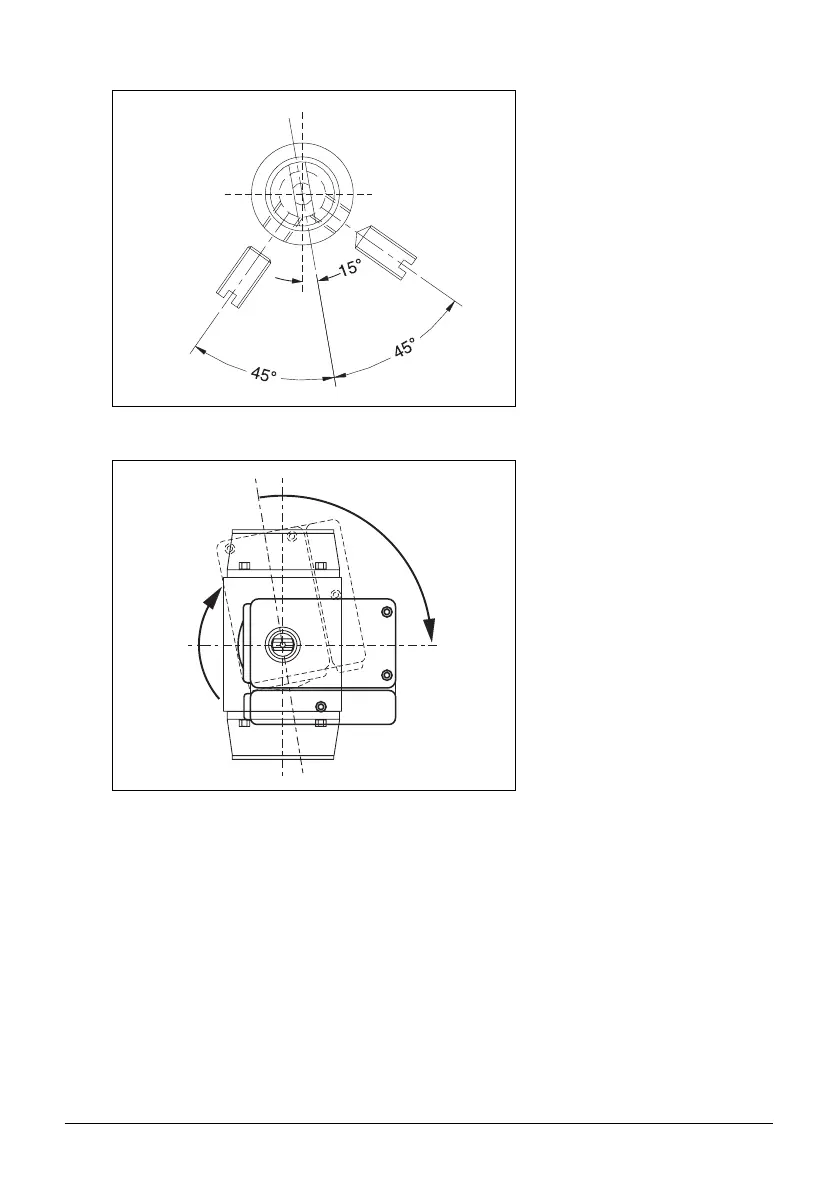

Fig. 14 Adapter position (factory setting)
Clockwise
rotation
of the
actuator
Clockwise rotation
of the positioner
Fig. 15 Mounting TZID to an actuator turning
clockwise, shifted by 90°
