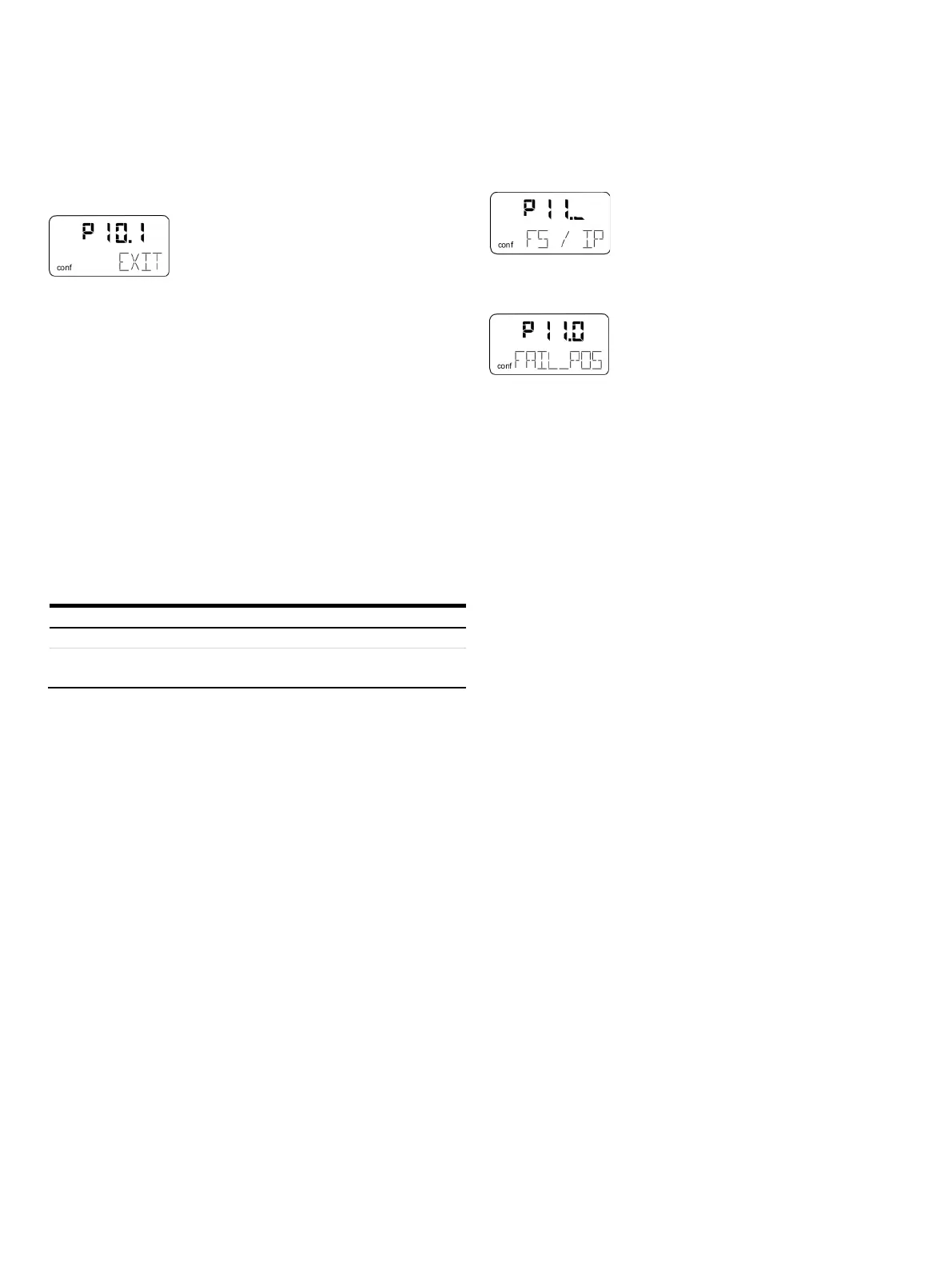

EXIT – Back to work level

With this parameter you can leave the configuration level. The

positioner returns to the operating level. Here you can either

save data in the non-volatile memory or discard all previously

made changes (also the changes in other parameter groups).

To exit the configuration level (with or without saving), press

and hold the ENTER button, until the countdown has run from 3

to 0 and finished.

The active saving process is indicated by the message NV_SAVE.

After saving a plausibility check is executed.

If an error occurs during the check or while saving, the data

cannot be saved and an error message is displayed instead (see

Chapter Error codes on page 40).

Selection

NV_SAVE

Saves settings in the non-volatile memory.

CANCEL

Discards all changes made since the last permanent

save operation.

Parameter group 11: Safety position

FAIL_POS – Safety position

This parameter needs to be used to activate the safety position,

if the factory settings are loaded ( FACT_SET parameter) or the

I/P module type is changed (IP-TYP parameter).

Note

After setting parameters FACT_SET and IP-TYP as required, the

safe position must be deactivated again manually.

The safe position that is activated (i.e., whether the actuator is

ventilated or blocked) depends on the I/P module installed.

Activating / deactivating the safe position:

Press and hold the ENTER button, until the countdown displayed

on it has run from 3 to 0 and finished; then release the ENTER

button.

The safe position is activated or deactivated, respectively.
