On receipt, check the state of the apparatus, integrity
of the packing and correspondence with the
nameplate data (see fig. 1) with what is specified in
the order confirmation and in the accompanying
shipping note.
Also make sure that all the materials described in the
shipping note are included in the supply.
Should any damage or irregularity be noted in the
supply on unpacking, notify ABB (directly or through
the agent or supplier) as soon as possible and in any
case within five days of receipt.
The apparatus is only supplied with the accessories
specified at the time of ordering and validated in the
order confirmation sent by ABB.
The accompanying documents inserted in the
shipping packing are:
• instruction manual (this document)
• test certification
• identification label
• copy of the shipping documents
• electric wiring diagram.
Other documents which are sent prior to shipment of
the apparatus are:
• order confirmation
• original shipping advice note
• any drawings or documents referring to special
configurations/conditions.
—
2. Checking on receipt
Before carrying out any operation,
always make sure that the operating
mechanism springs are discharged and
that the apparatus is in the open
position.
Circuit breaker IEC 62271-100
Vmax ... ... ... CEI 17-1
CLASSIFICATION ... ... ...
SN ... ... ... PR. YEAR ......
M MASS ... kV
Ur
ELECTRICAL DIAGRAM ... ... ... ...
FIG. ... ...
.. ... ... ... OPERATING MECHANISM
-MO1 ... ... ... V
Made by ABB

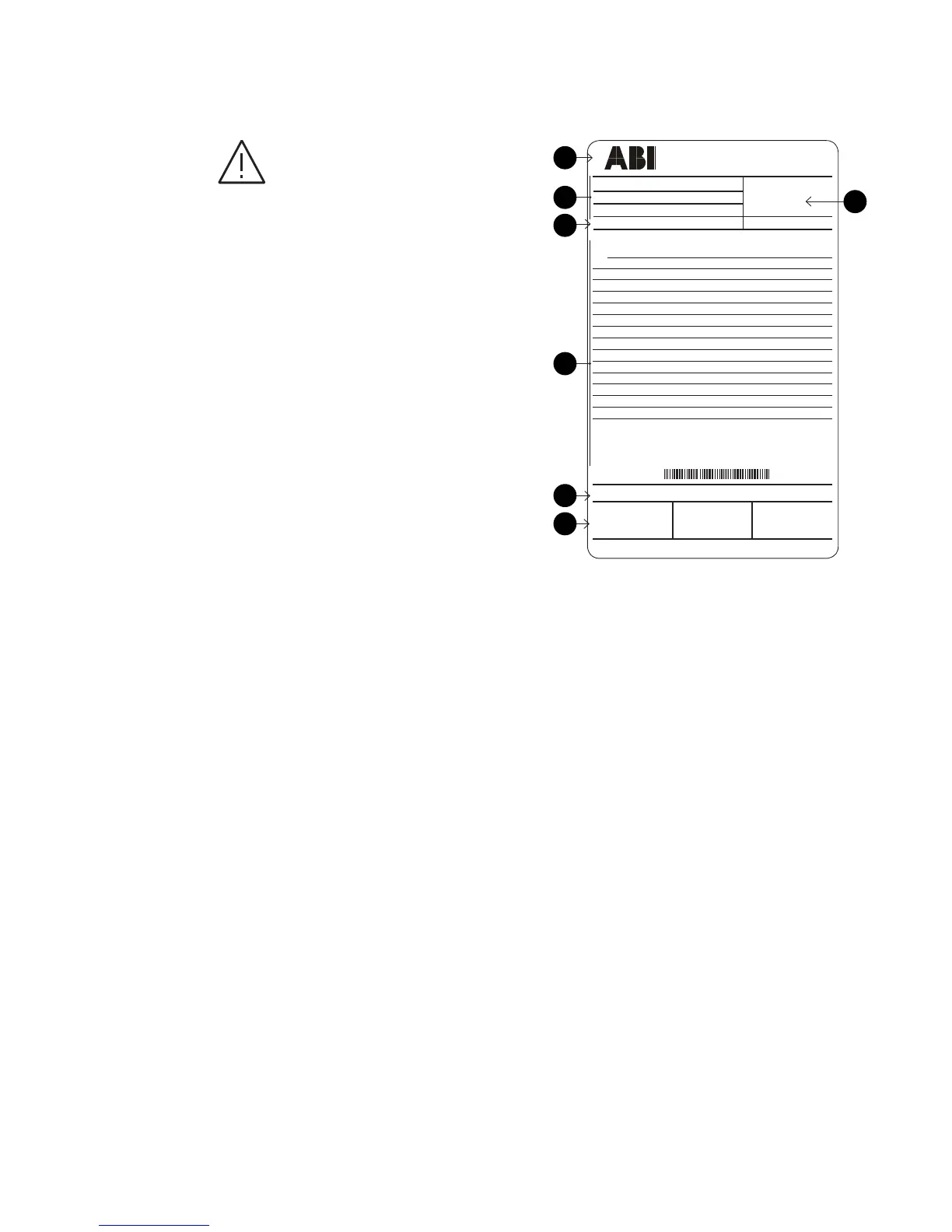

Caption
A Circuit breaker rating plate.
B Operating mechanism rating plate.
1 Type of apparatus.
2 Symbols of compliance with Standards.
3 Serial number.
4 Circuit breaker characteristics.
5 Characteristics of the operating mechanism auxiliaries
Fig. 1
