Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.15 Fitting the filter silencer with noise
package
© Copyright 2018 ABB. All rights reserved. HZTL4034_EN Revision N November 2018
8.15 Fitting the filter silencer with noise package
The following work steps apply to both the welded and cast versions of the filter silencer.
Before fitting ensure that the individual sealing segments of the gasket (81301) and the gas-
ket(74042) are not damaged and that the contact surfaces are clean.

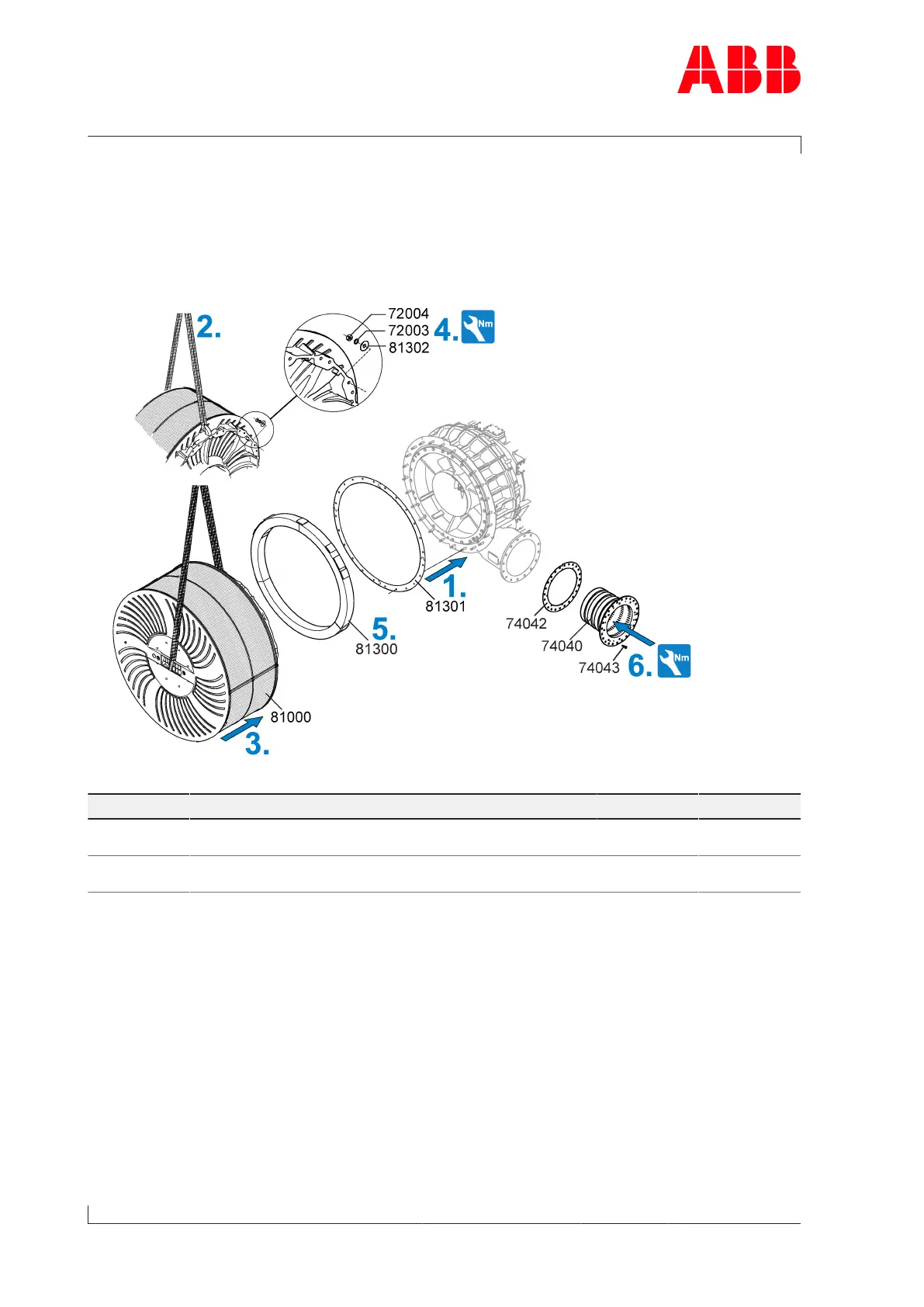

Fig.61: Fitting the filter silencer with noise package
Part number A165-L A170-L A175-L A180-L A185-L A190-L
72004 M14
130Nm
M16
200Nm
M18
300Nm
M20
420Nm
M22
570Nm
M24
710Nm
72043 M10
45Nm
M10
45Nm
M10
45Nm
M10
45Nm
M10
45Nm
M10
45Nm
Table44: Tightening torques (72004, 74043)
Page 88 / 110
