8 Disassembly and assembly / 8.3 Disassembly and assembly of the
filter silencer casing
© Copyright 2018 ABB. All rights reserved. HZTL4034_EN Revision N November 2018

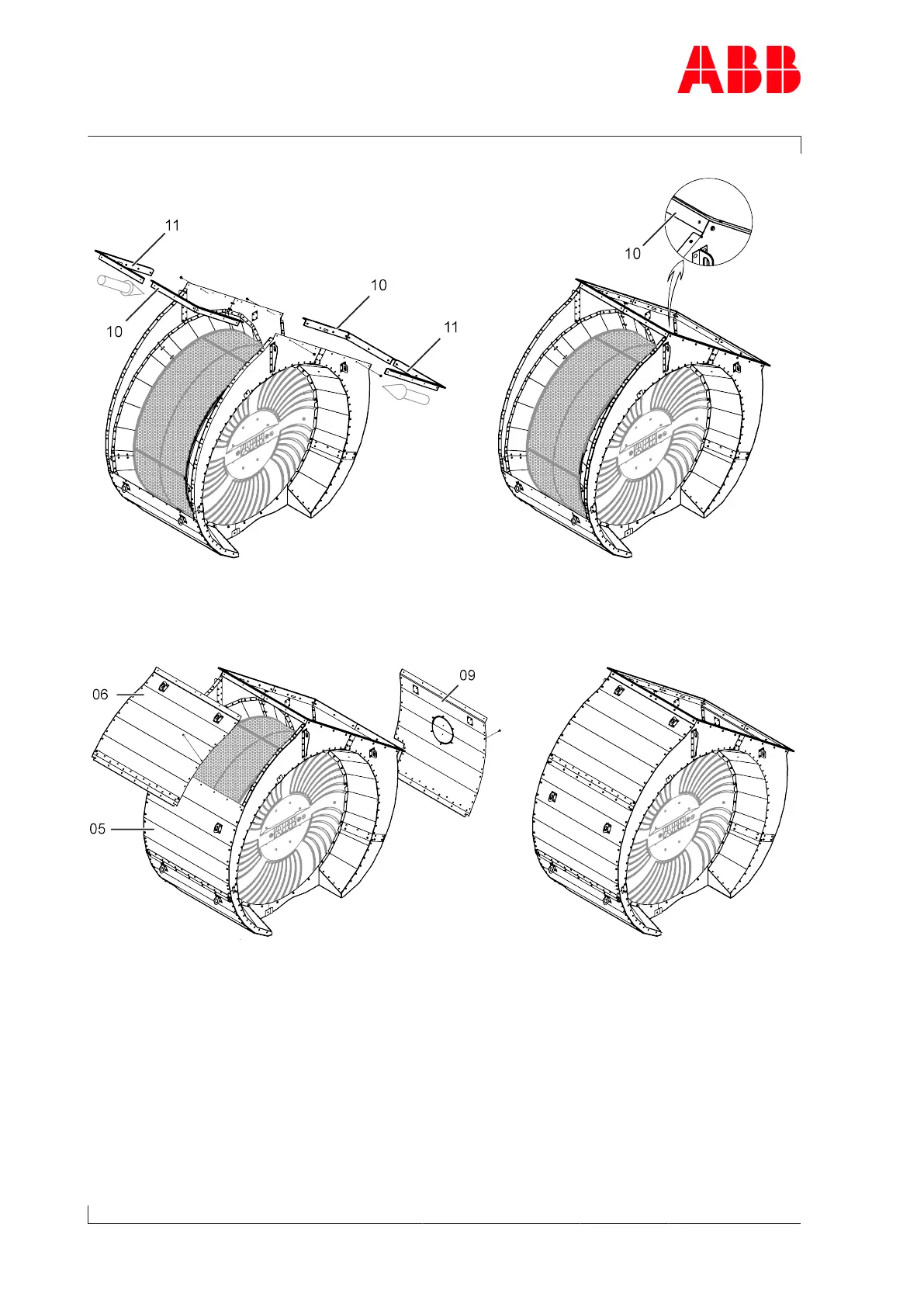

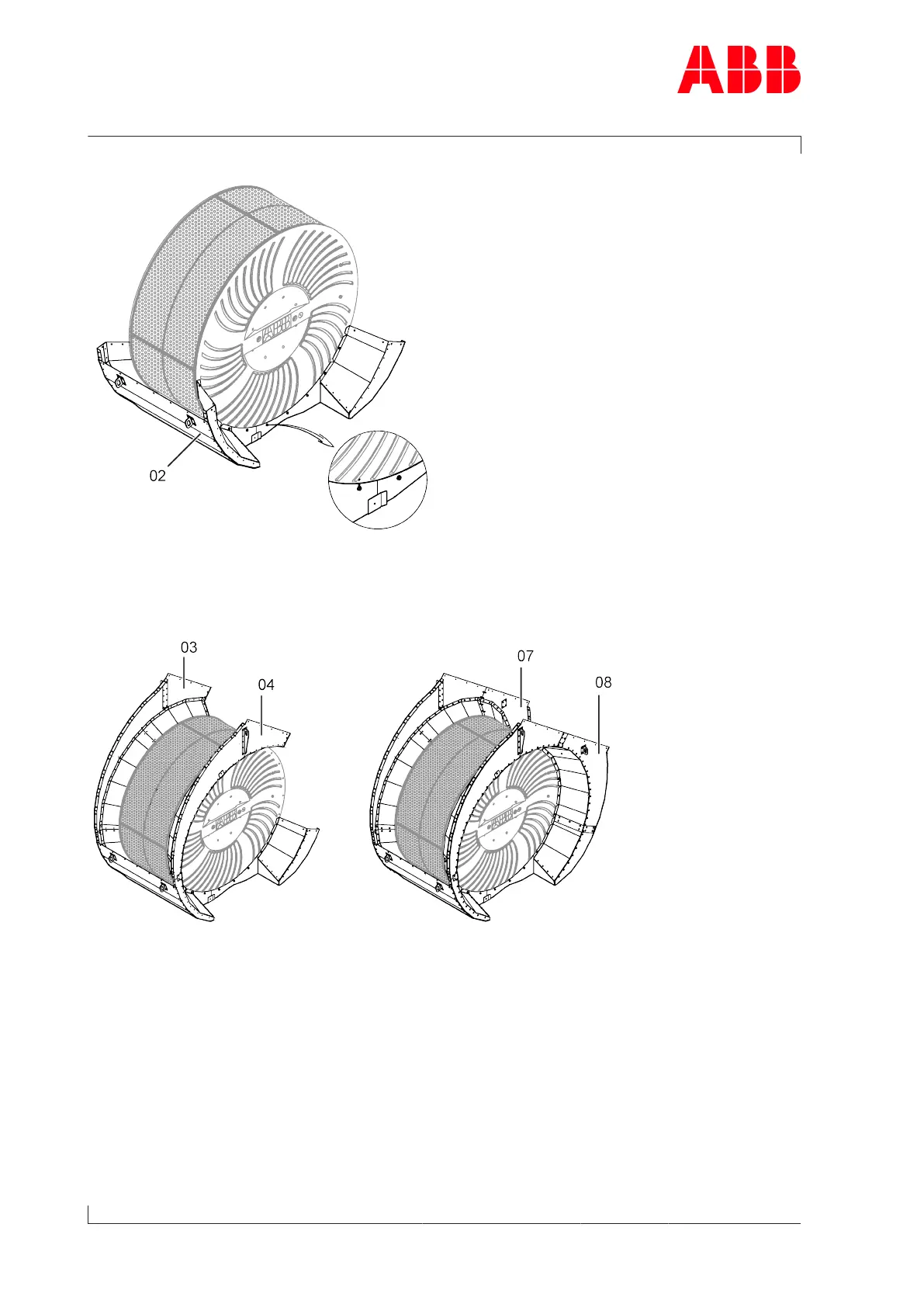

Fig.26: Fitting filter silencer casing 4
u Insert the flanges(10) and (11) laterally between the side parts and fit the screws.
Fig.27: Fitting filter silencer casing 5
u Fit the circumferential part(05) with the screws.
u Fit the circumferential part(06) with the screws.
u Fit the circumferential part(09) with the screws.
