Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.10 Fitting the gas inlet casing, the
nozzle ring and the insulation (A175-L and smaller)
© Copyright 2018 ABB. All rights reserved. HZTL4034_EN Revision N November 2018
Fitting insulation

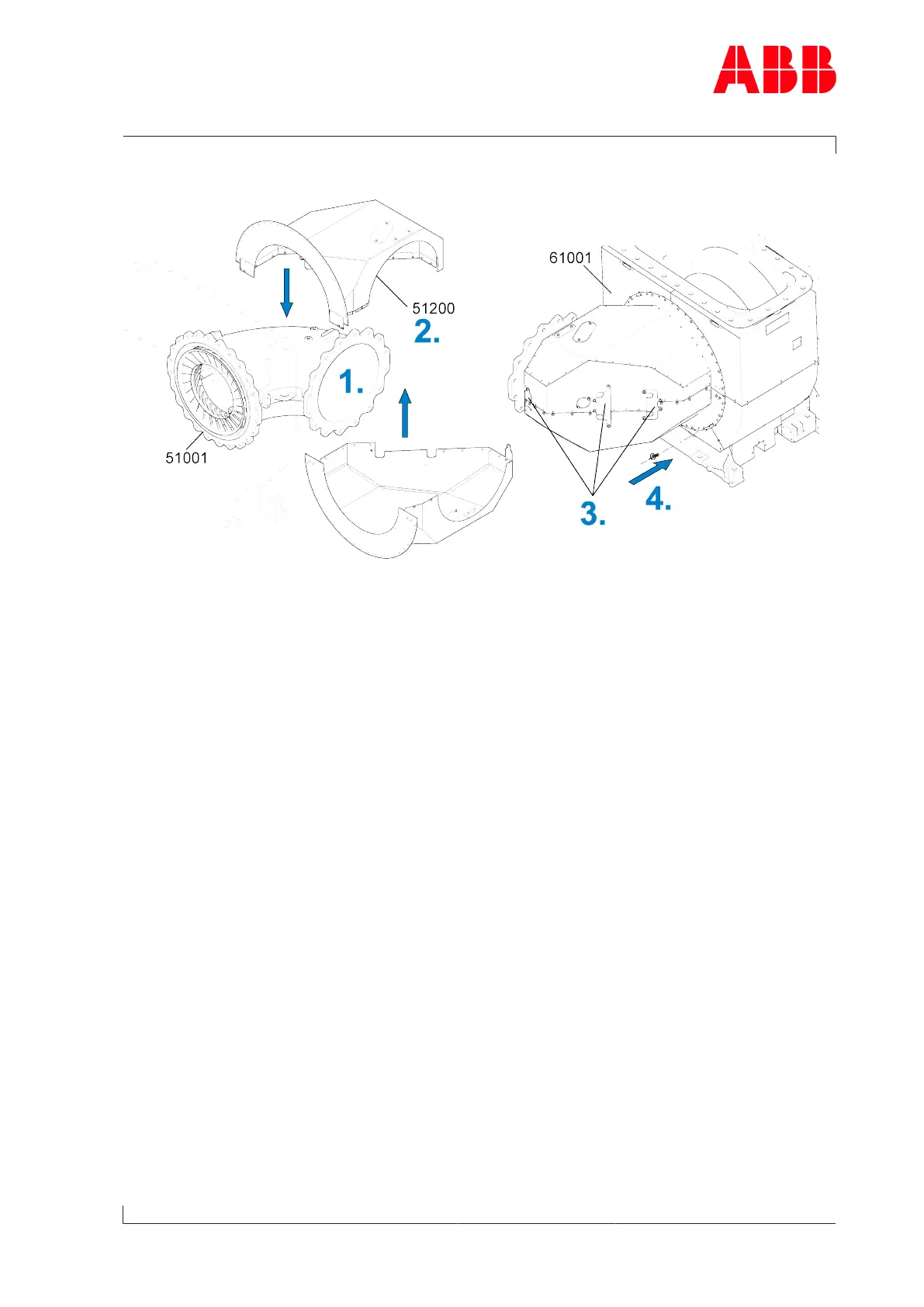

Fig.50: Fit insulation.
1. Fit flange connection between gas inlet casing(51001) and bellows.
2. Fit the insulation jackets (51200) on the gas inlet casing(51001) with the screws.
3. Fit connecting plates of insulation jackets with screws.
4. Fit insulation jackets with screws on gas outlet casing(61001).
Page 77 / 110
