8.10 Fitting the gas inlet casing, the nozzle ring and
the insulation (A175-L and smaller)
Fitting the nozzle ring
u Coat the screw threads with high-temperature grease.

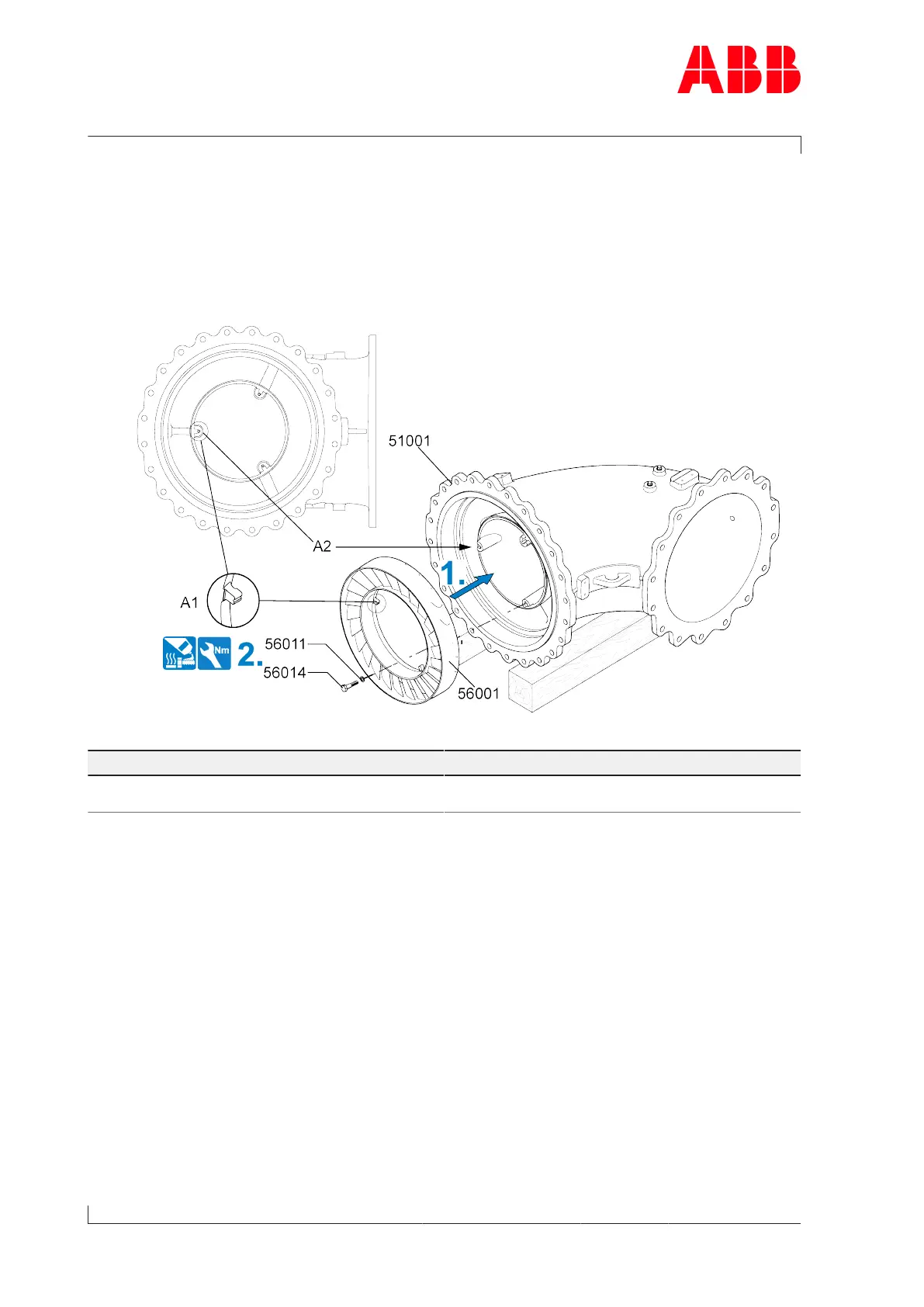

Fig.47: Fitting the nozzle ring (A175-L and smaller)
Part number A165-L A170-L A175-L
56014 M10
35Nm
M10
35Nm
M10
35Nm
Table33: Tightening torque (56014)
1. Align the notch (A
1
) with the flange connection (A
2
) and slide the nozzle ring(56001) into
the gas inlet casing (51001).
2. Fit screws (56014) with high-temperature grease and with washers (56011).
