Operation Manual / 4 Product description / A100-L
2 Removal and installation / 2.3 Installing the turbocharger
© Copyright 2018 ABB. All rights reserved. HZTL4034_EN Revision N November 2018
2.3 Installing the turbocharger
2.3.1 Placing the turbocharger on the bracket

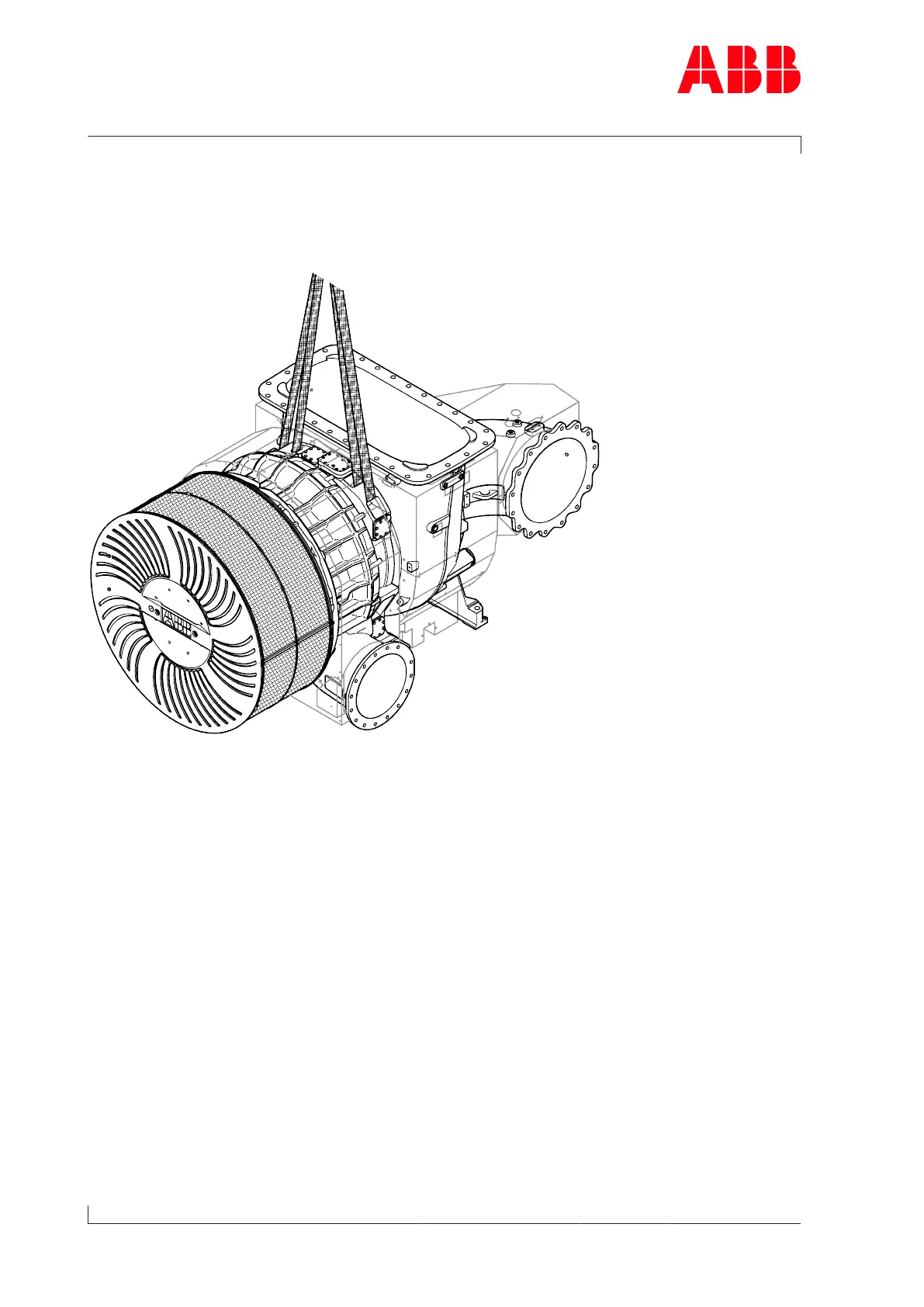

Fig.5: Placing the turbocharger on the bracket
u Remove covers from the oil connections.
u Align turbocharger and place on engine bracket.
u Tighten fixing screws (Steps for fastening the turbocharger →11); while doing this, only
slightly loosen the lifting gear.
u Remove lifting gear from suspension eyes of the bearing casing.
u Connect cable to speed sensor.
u Connect all gas, air and oil pipes.
