4.2 Admissible air inlet temperature
The permitted air inlet temperature must be between -40C°… +45C°.
4.3 Turbocharger speed
4.3.1 Introduction
The speed of the turbocharger must be permanently monitored.
CAUTION
Do not use cables as a climbing aid
If you pull the speed measurement cables too hard, contacts can be pulled
out.
u Do not tension the speed measurement cables.
4.3.2 Layout and overview

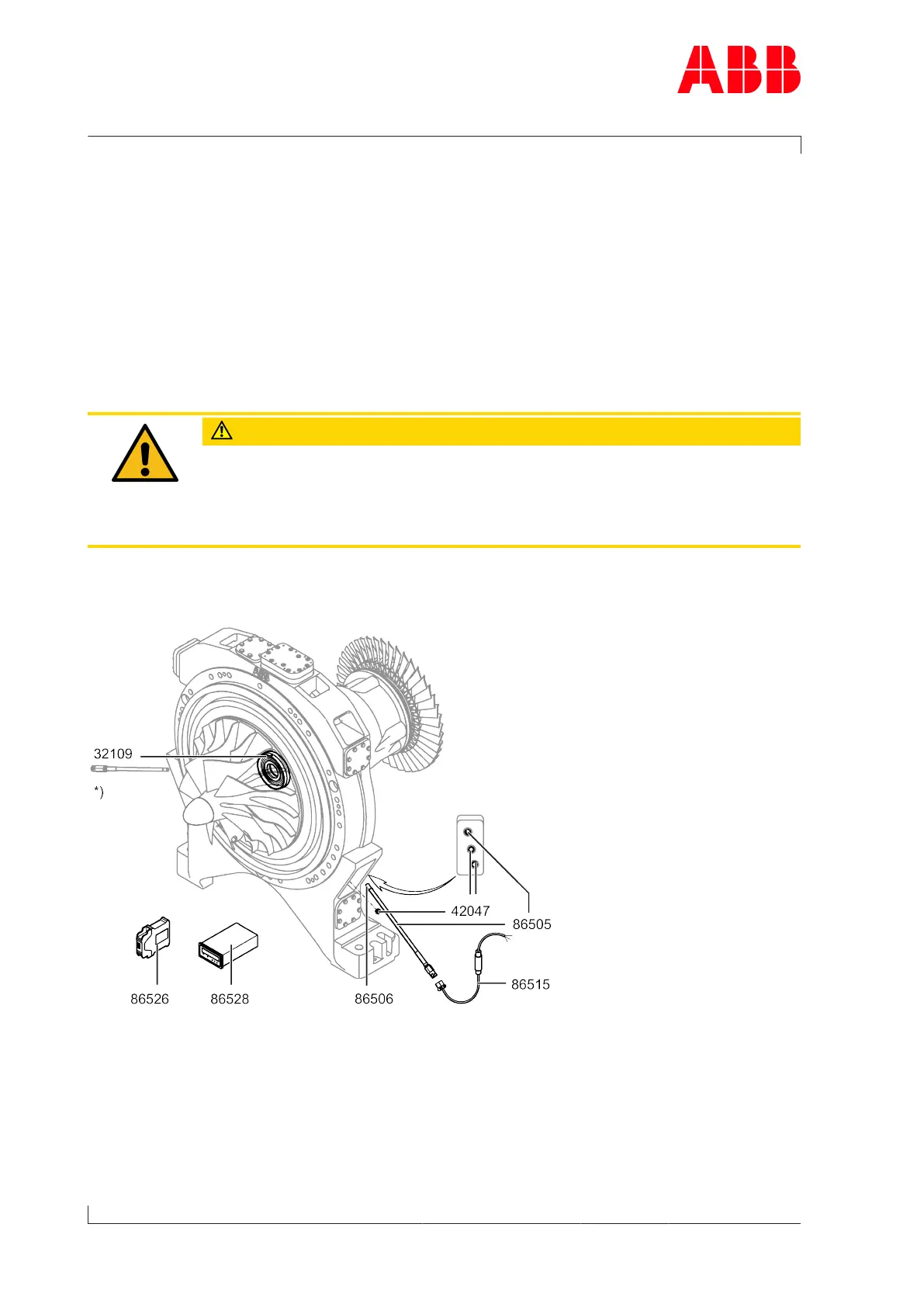

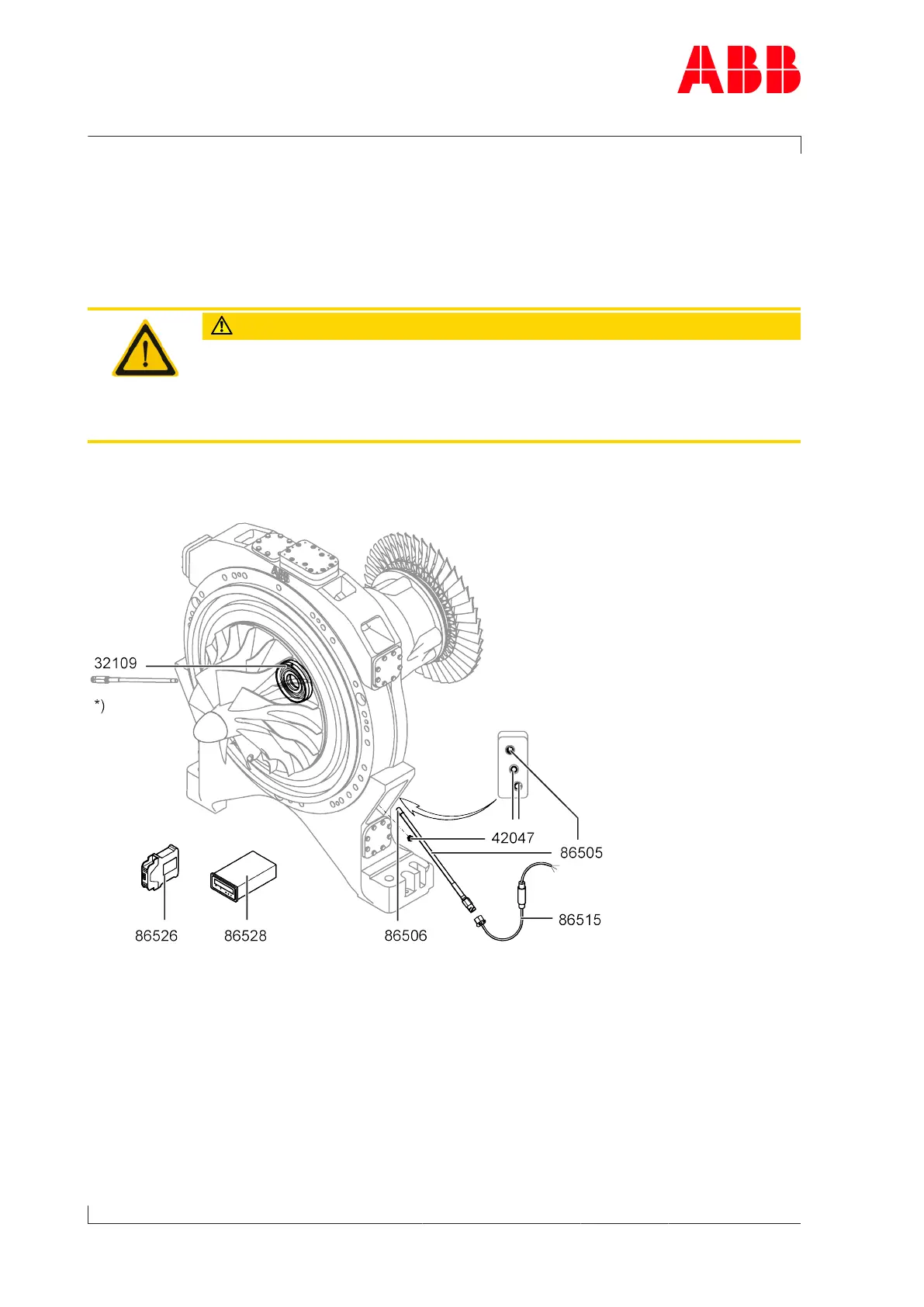

Fig.8: Layout and overview of the speed measurement system
86505 Speed sensor 86528 Tachometer
86506 O-ring 42047 Screw plug
86515 Cable connector 32109 Sealing disc with cams
86526 F/I converter *) Alternative mounting position for speed
sensor
or for the second speed sensor
