Operation Manual / 4 Product description / A100-L
12 Spare parts / 12.3 View of cartridge group with part numbers
© Copyright 2018 ABB. All rights reserved.
HZTL4034_EN
Revision N
November 2018
12.3
View of cartridge group with part numbers

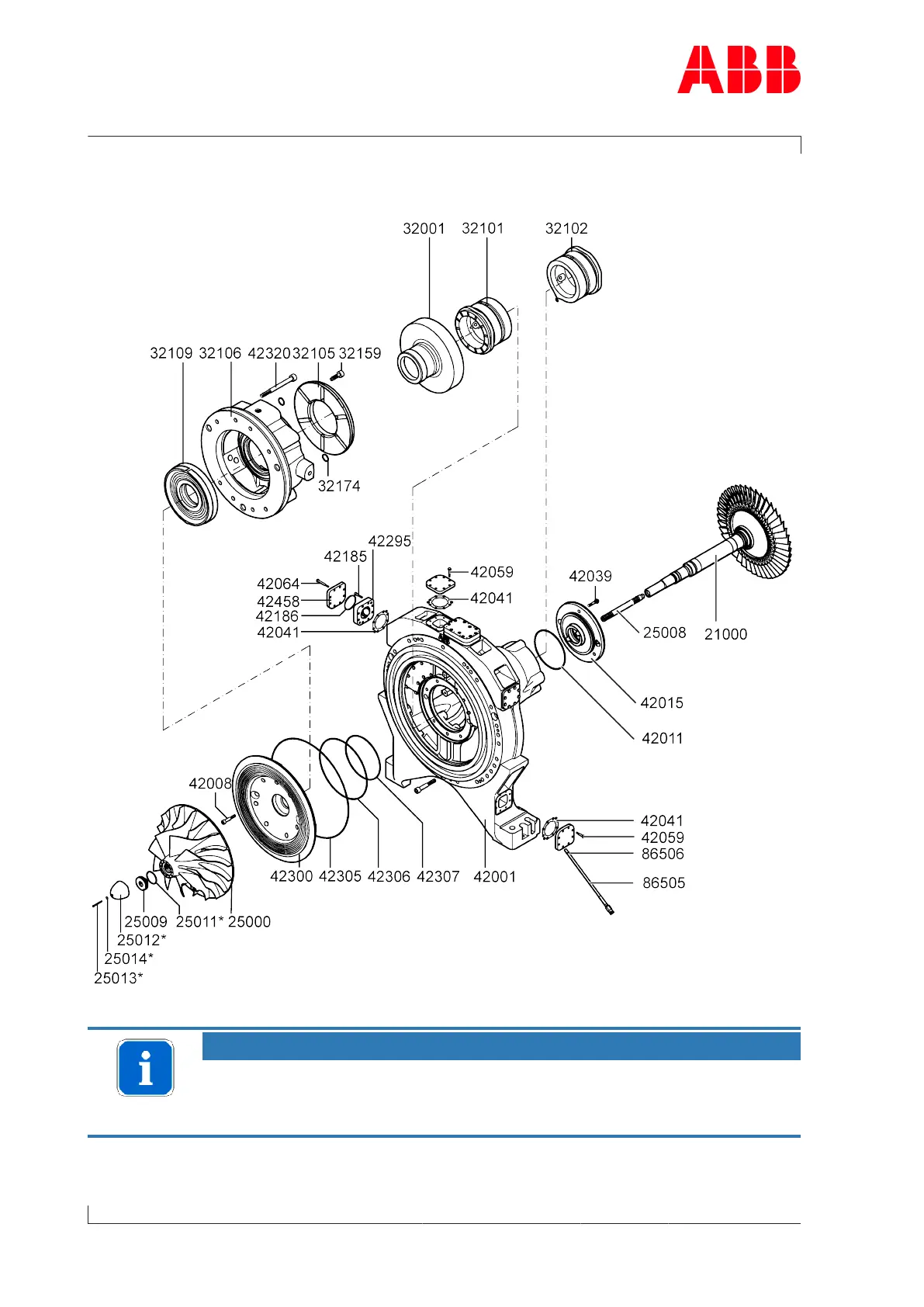

Fig.68: View of cartridge group with part numbers
NOTICE
Cartridge group
The cartridge group is not delivered as a fitted assembly. Spare parts must
be ordered individually.
Page 106 / 110
133
135
