As a rule, the end covers are fitted at the works. In individual
cases, end covers may also be supplied loose. Assemble the end
covers as follows.
Screw the fastening bracket for the end cover onto the enclosure
as shown in figure 2.3.4.1.
Fasten the end cover at the locations provided (figure 2.3.4.2) us-
ing screws. Finally, align the end cover.

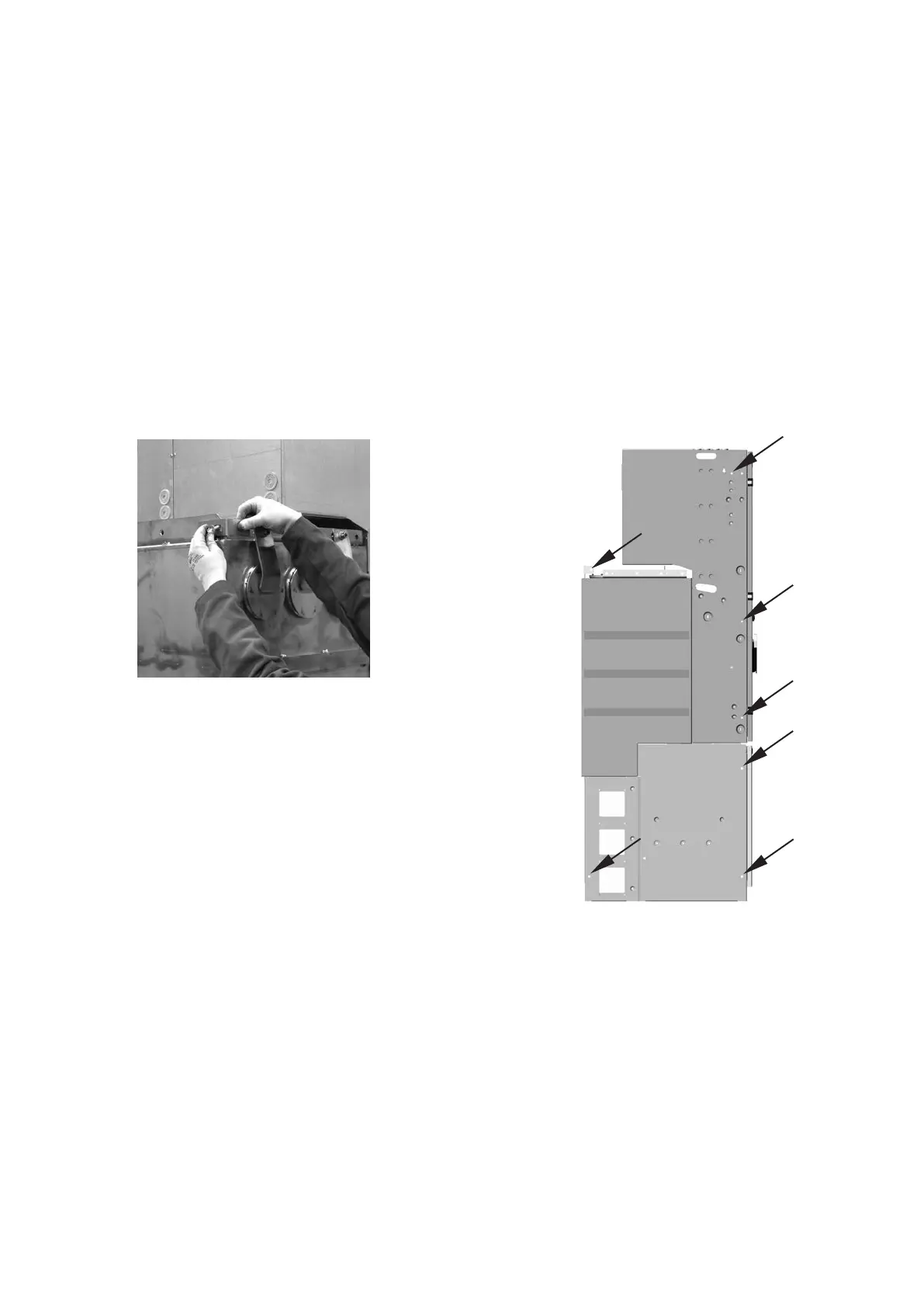

Fig.. 2.3.4.1: Fastening bracket for the end cover Fig. 2.3.4.2: Fastening points for the end cover
2.3.4 Assembling the end covers
