50 | Manual ZX0 HB 600 en - Revision 05

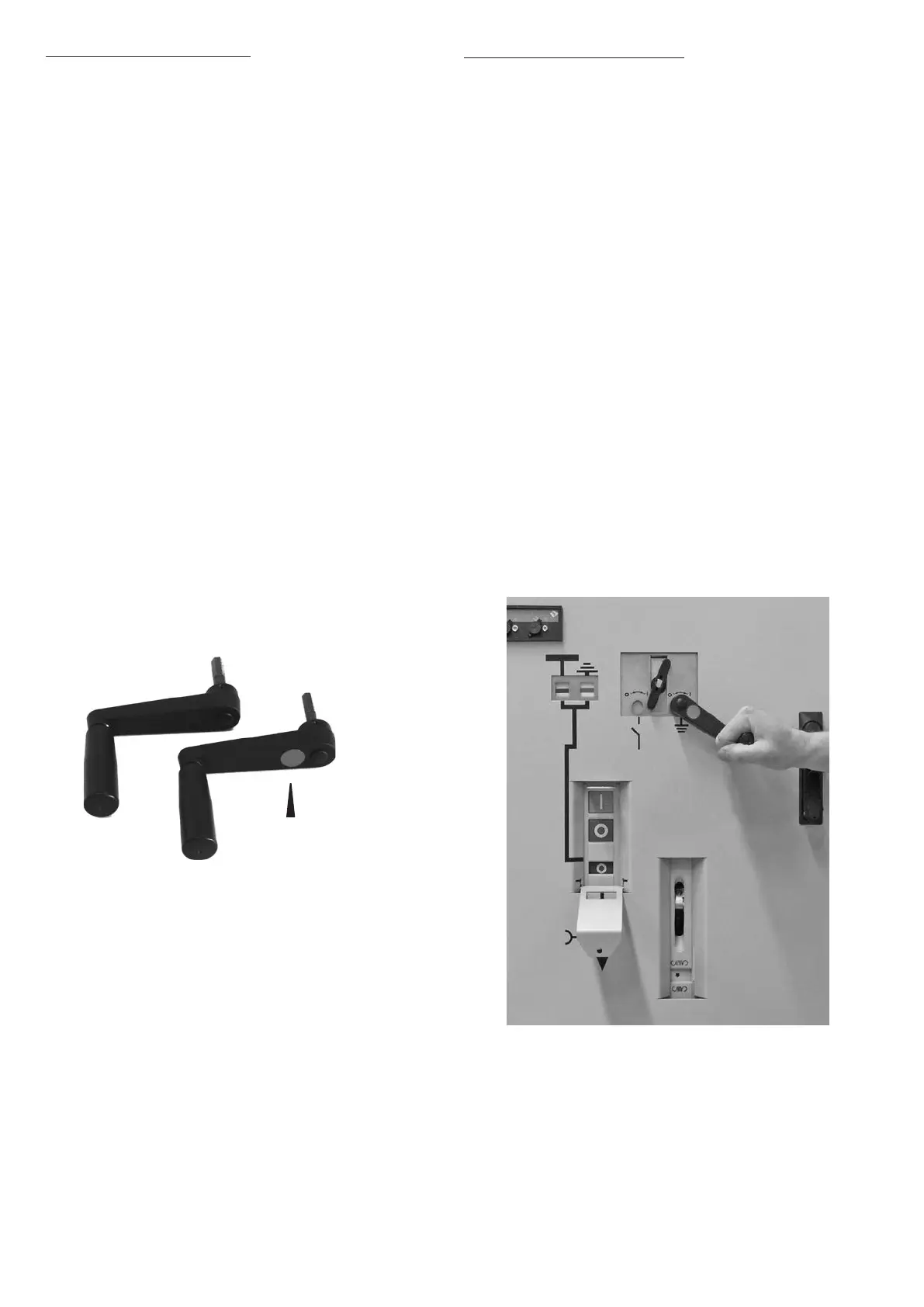

Fig. 4.1.2.4.3.1: Cranks for operation of the three position disconnector with
manual mechanism 2
Fig. 4.1.2.4.3.2: Operation of the three position disconnector (in this case
disconnector operation) with motor operated mechanism 2
Operation of the disconnector
− Turn the selector lever (4) counterclockwise and hold it fast.
− Plug the operating lever onto the hexagon through the
released opening (5).
Disconnector OFF ð ON
− Turn the operating crank clockwise through approx. 24
turns until the stop is reached.
− Withdraw the operating crank.
Disconnector ON ð OFF
− Turn the operating crank counter-clockwise through ap-
prox. 24 turns until the stop is reached.
− Withdraw the operating crank.
Operation of the earthing switch
− Turn the selector lever (4) clockwise and hold it fast.
− Plug the operating crank onto the hexagon through the
released opening (7).
Earthing switch OFF ð ON
− Turn the operating crank clockwise through approx. 24
turns until the stop is reached.
− Withdraw the operating crank.
Earthing switch ON ð OFF
− Turn the operating crank counter-clockwise through ap-
prox. 24 turns until the stop is reached.
− Withdraw the operating crank.
Operating crank for the earthing
function of the three position discon-
nector with red marking
