Manual ZX0 HB 600 en - Revision 05 | 57
Replacing fuses
− Open the low voltage compartment door.
− Release the twist lock fastener (figure 4.3.5.3). The fuse
flap then automatically swings out (figure 4.3.5.4).
− Draw the lid with the fuse to be replaced out of the box
(figure 4.3.5.5). Turning and gently shaking the lid makes it
easier to withdraw it.
− Remove the lid with the fitted fuse.
− Loosen the clamping band and remove the fuse from the
lid.
1 2

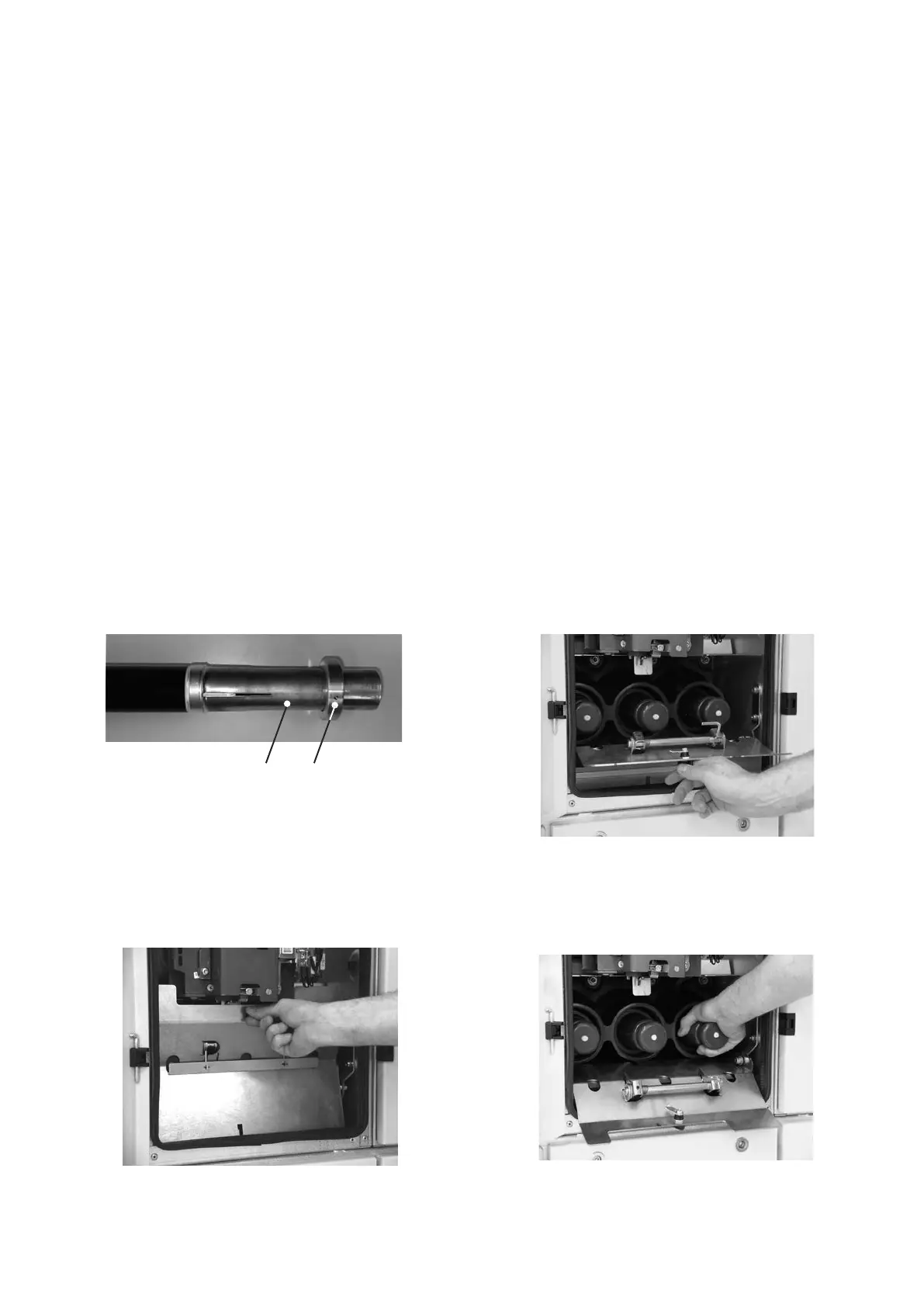

Fig. 4.3.5.2: Length adapter (1) and adapter for fuse diameter 53 mm (2)
Fig. 4.3.5.3: Opening the fuse flap
Fig. 4.3.5.4: Opening the fuse flap - 2
Fig. 4.3.5.5: Removing the lid with the fuse
− Clean the sealing collar (figure 4.3.5.6) on the lid with
M.X.T. 60 forte intensive cleaner.
− Insert the new HRC fuse into the lid with the striker pin
pointing towards the lid.
− Tighten the clamping band (figure 4.3.5.6). Ensure when
doing so that the contact fingers of the ring contact are not
deformed.
− Slide the fuse into the fuse box up to the stop.
− Replace the other fuses in the same manner.
− Swing the fuse flap upwards and fasten it with the twist
lock fastener.
