9. Troubleshooting
a) Filler
i. Fill Times
The beer will gradually rise to the top of the can and eventually close the circuit with the probe. When the probe circuit
closes the nozzle will begin to rise out of the can after the debounce time has finished.
You want to make sure the beer nozzle does not fill outside of the can. This can cause high dissolved oxygen in the can.
In order to get this time setting in place, you need to adjust nozzle probe debounce and extend fill, so that the nozzle
starts to rise out of the can, with the beer shutting off when the nozzle is about ½ to ¾ out of the can. This will provide
the least amount of displacement and ensure you are getting a full can of beer. You can also adjust the height of the
probe by loosening the set screw in the nozzle body and moving the probe up.

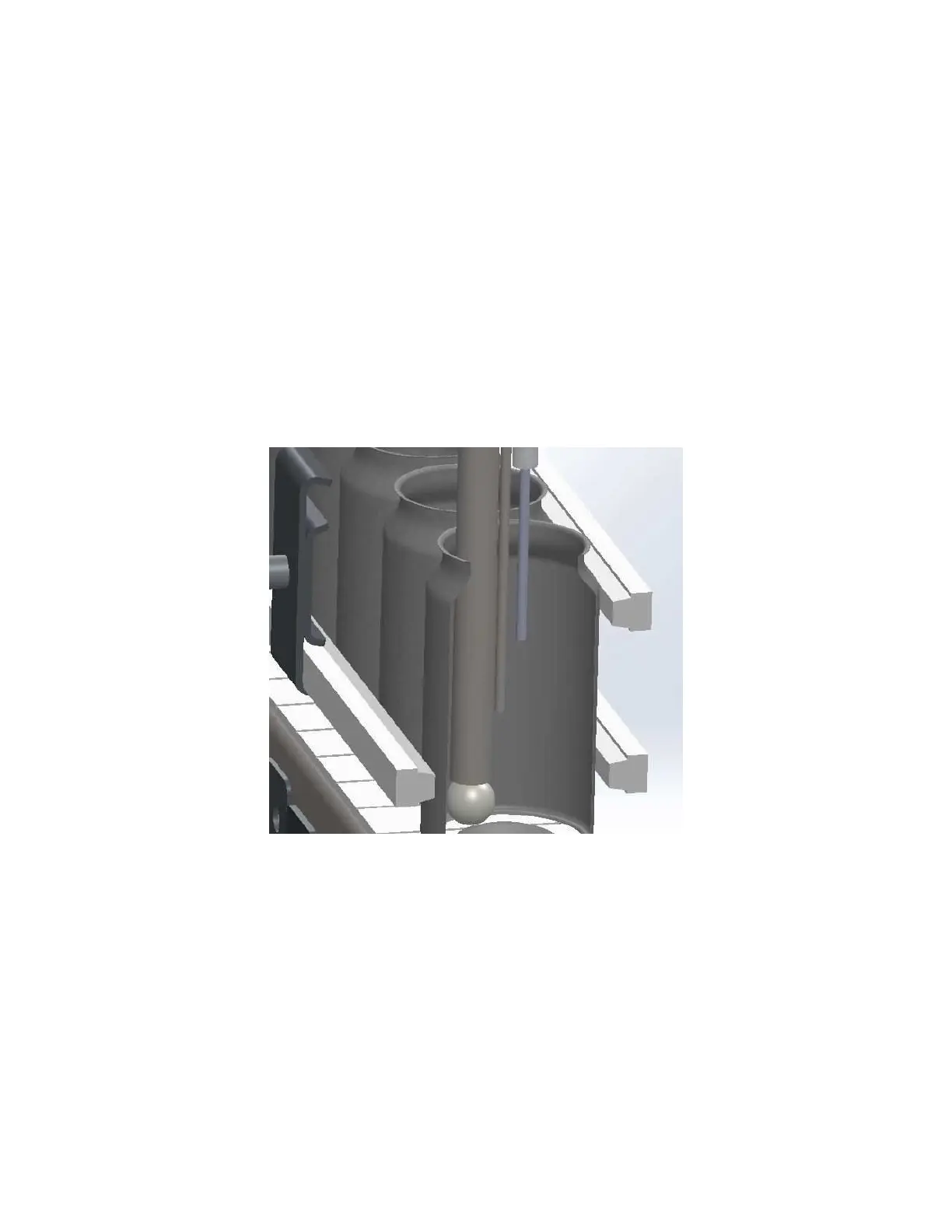

Figure 10. Filler Nozzle and Probe Assembly Cross-Section
