1-18 IB9

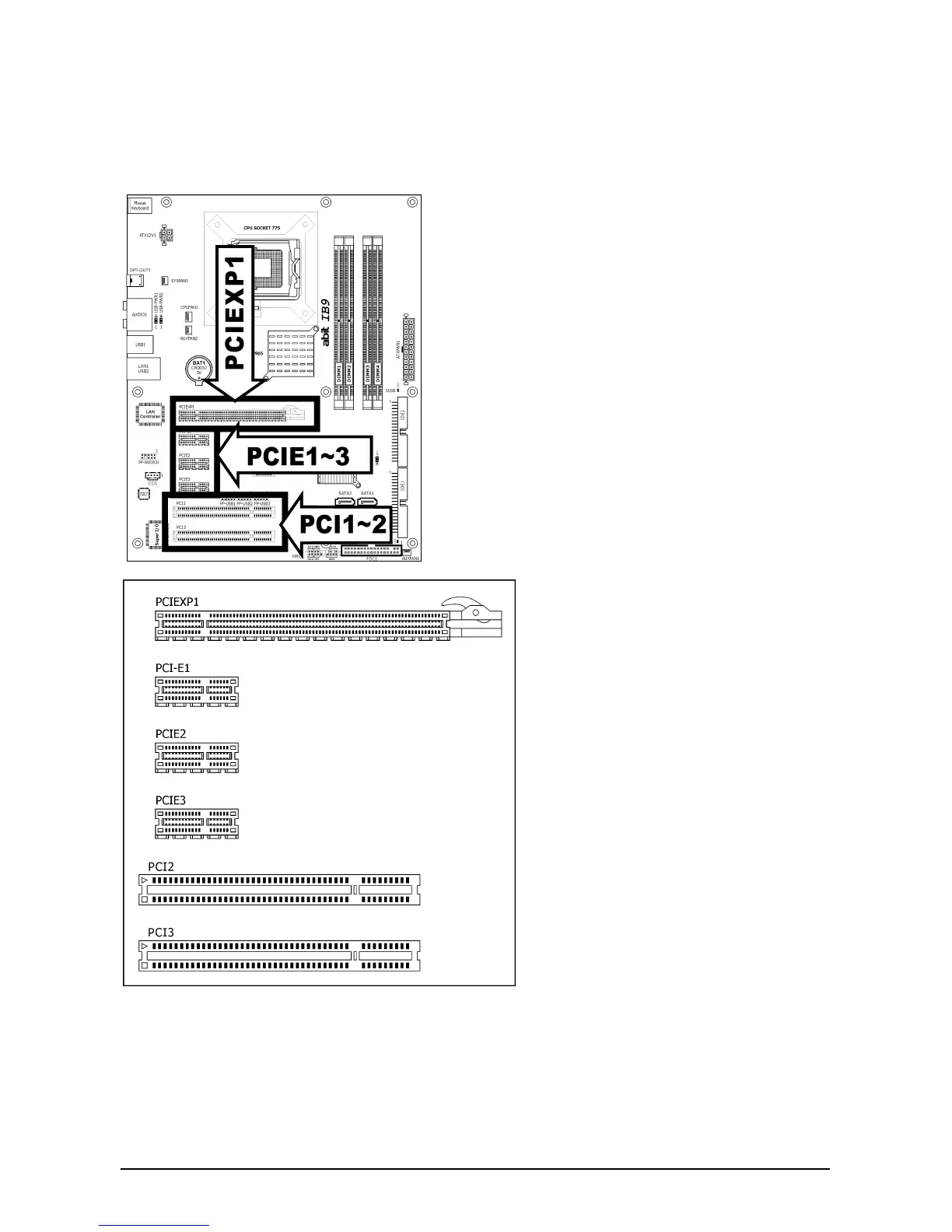

1.8.6 PCI and PCI Express X16, X1 Slots
Install PCI Express X16 graphics card into slot “PCIEXP1”.
Install PCI Express X1 cards into slots “PCI-E1”, “PCI-E2”, and/or “PCI-E3”.
Install PCI cards into slots “PCI1” and/or “PCI2”.
