Hardware Setup
2-15
(8).

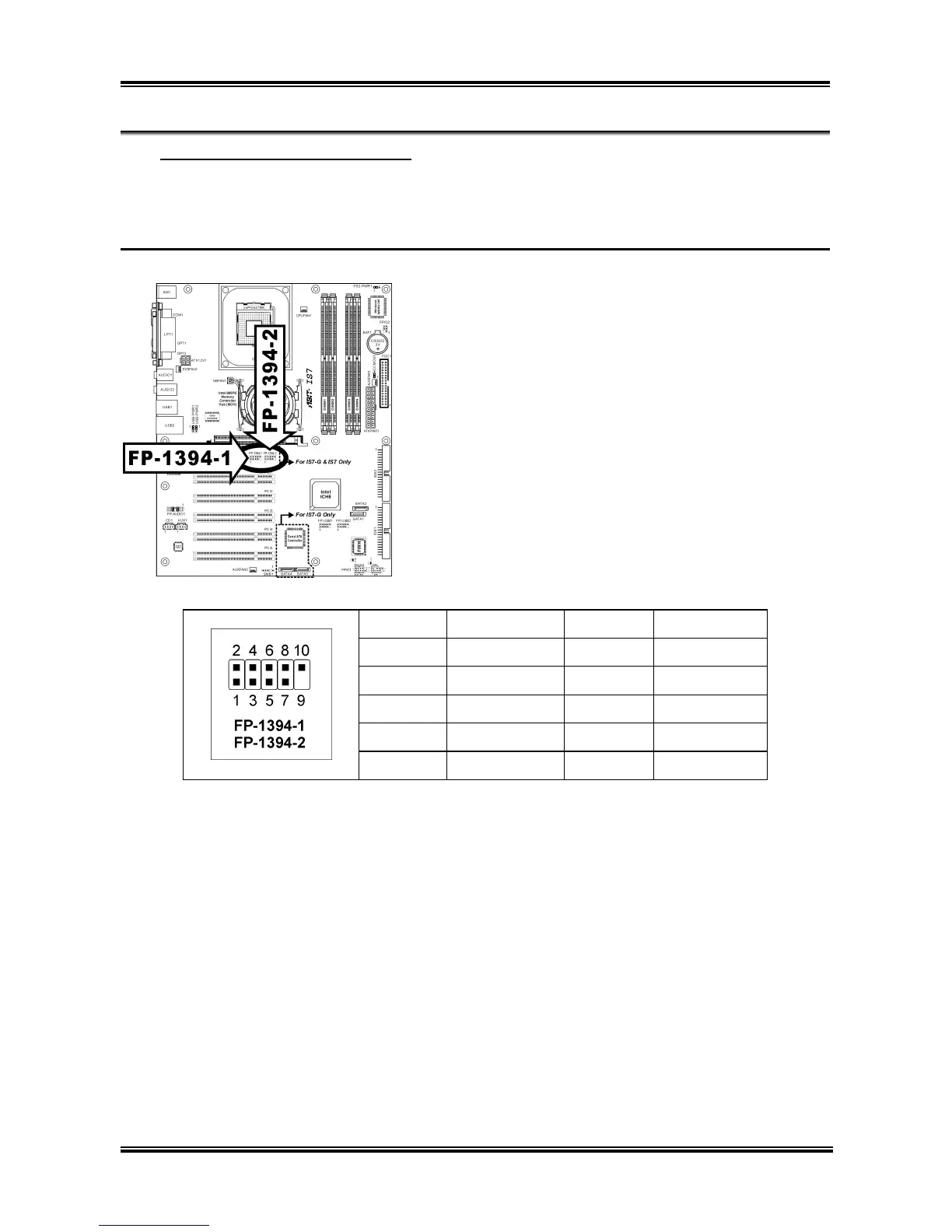

Additional IEEE1394 Port Headers
These headers each provide one ad
ditional IEEE1394 port connection
through an extension cable and
bracket.
IS7-G/IS7:
Pin
Pin Assignment
Pin
Pin Assignment
1
TPA0 +
2
TPA0 -
3 GND
4
GND
5
TPB0 +
6
TPB0 -
7 +12V
8
+12V
9 NC
10
GND
User’s Manual
40
42
Table of Contents
Default Chapter
3
Table of Contents
3
快速安裝指引
6
速いインストールガイド
8
Schneller Installation Führer
10
Guide Rapide D'installation
12
Быстро Направляющий Выступ Установки
14
Guida Rapida Dell'installazione
16
Chapter 1. Introduction
19
Features & Specifications
19
Layout Diagram (IS7-G/IS7/IS7-E)
22
Layout Diagram (IS7-E2)
23
Layout Diagram (IS7-M)
24
Layout Diagram (IS7-V2)
25
Chapter 2. Hardware Setup
27
Install the Motherboard
27
Install Pentium ® 4 CPU and Heatsink Supporting-Base
28
Install System Memory
29
Connectors, Headers and Switches
32
ATX Power Input Connectors
32
FAN Power Connectors
33
CMOS Memory Clearing Header
34
Wake-Up Header
35
Front Panel Audio Connection Header
36
Front Panel Switches & Indicators Headers
38
Infrared Device Header
40
Additional IEEE1394 Port Headers
41
Additional USB Port Headers
42
System Management Bus Headers
43
Internal Audio Connectors
44
Accelerated Graphics Port Slot
46
Floppy Disk Drive Connector
47
IDE Connectors
48
Serial ATA Connectors
49
Status Indicator
51
Back Panel Connectors
53
Chapter 3. BIOS Setup
55
Softmenu Setup
56
Standard CMOS Features
58
Advanced BIOS Features
61
Advanced Chipset Features
64
Integrated Peripherals
66
Superio Device
70
Onboard Pci Device
72
Power Management Setup
73
Pnp/Pci Configurations
76
PC Health Status
78
Load Fail-Safe Defaults
79
Load Optimized Defaults
79
Set Password
79
Save & Exit Setup
79
Exit Without Saving
79
Appendix A. Install Intel Chipset Software Utility
81
Appendix B. Install Intel Application Accelerator RAID (IS7-G, IS7
83
Appendix C. Install Audio Driver
87
Appendix D. Install LAN Driver
89
Appendix E. Install Silicon Serial ATA RAID Driver (IS7-G
91
Raid Configuration Utility Menu
93
Appendix F. Install VGA Driver (IS7-M
95
Appendix G. Install USB 2.0 Driver
97
Appendix H. ABIT EQ (the Hardware Doctor Utility
99
Appendix I. Flashmenu (BIOS Update Utility
101
Appendix J. Troubleshooting (Need Assistance
103
Technical Support Form
106
Appendix K. How to Get Technical Support
107
