2-22 Chapter 2

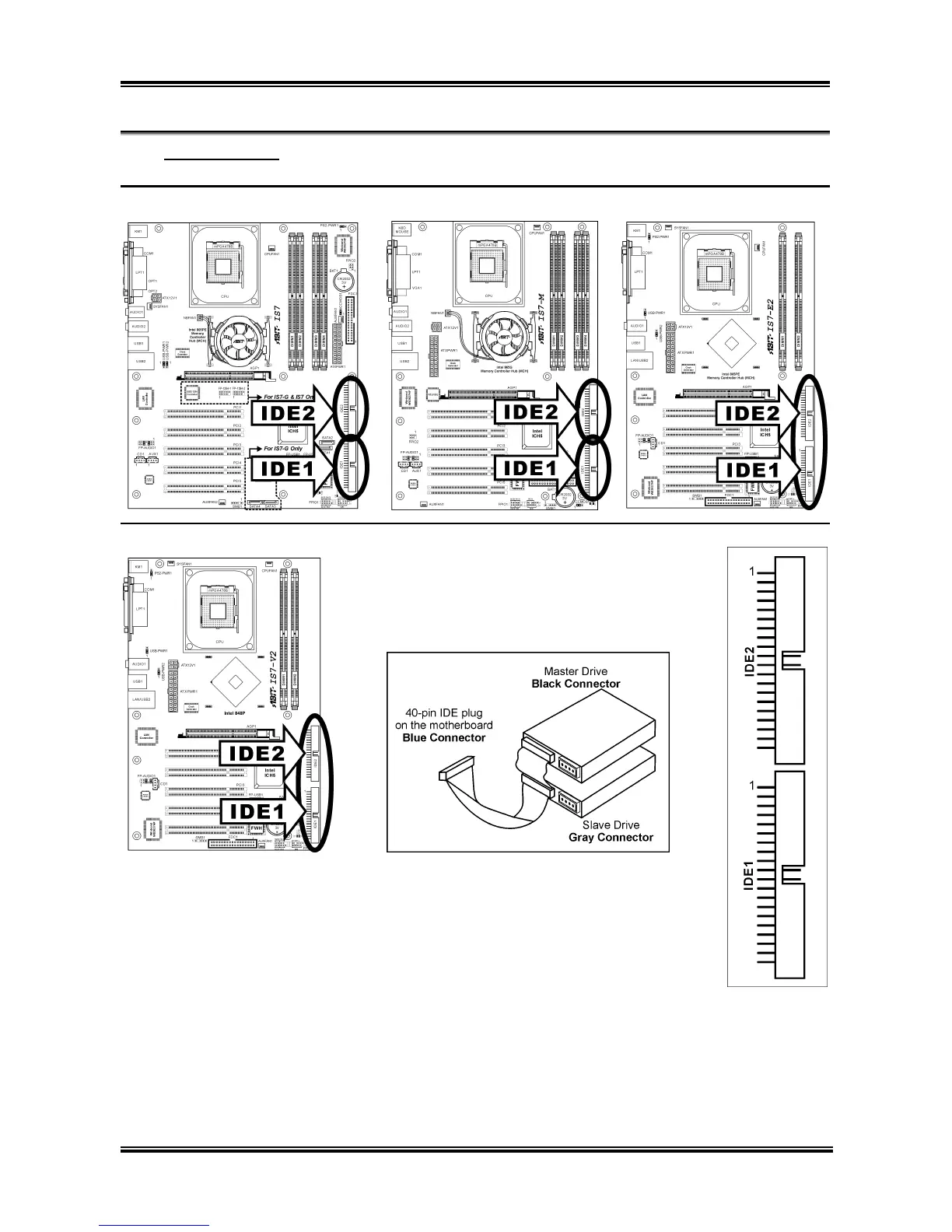

(14). IDE Connectors
IS7-G/IS7/IS7-E: IS7-M: IS7-E2:
IS7-V2:
This motherboard provides two IDE ports to connect up to four IDE drives at Ultra
ATA/100 mode by Ultra ATA/66 ribbon cables. Each cable has 40-pin 80-conductor
and three connectors, providing two hard drives connection with motherboard. Connect
the single end (blue connector) at the longer length of ribbon cable to the IDE port on
motherboard, and the other two ends (gray and black connector) at the shorter length of
the ribbon cable to the connectors on hard drives.
If you want to connect two hard drives together through one IDE channel, you must
configure the second drive to Slave mode after the first Master drive. Please refer to the drives’
documentation for jumper settings. The first drive connected to IDE1 is usually referred to as “Primary
Master”, and the second drive as “Primary Slave”. The first drive connected to IDE2 is referred to as
“Secondary Master” and the second drive as “Secondary Slave”.
Keep away from connecting one legacy slow speed drive, like CD-ROM, together with another hard drive
on the same IDE channel; this will drop your integral system performance.
IS7 Series
To Next Page
