(17). Back Panel Connectors

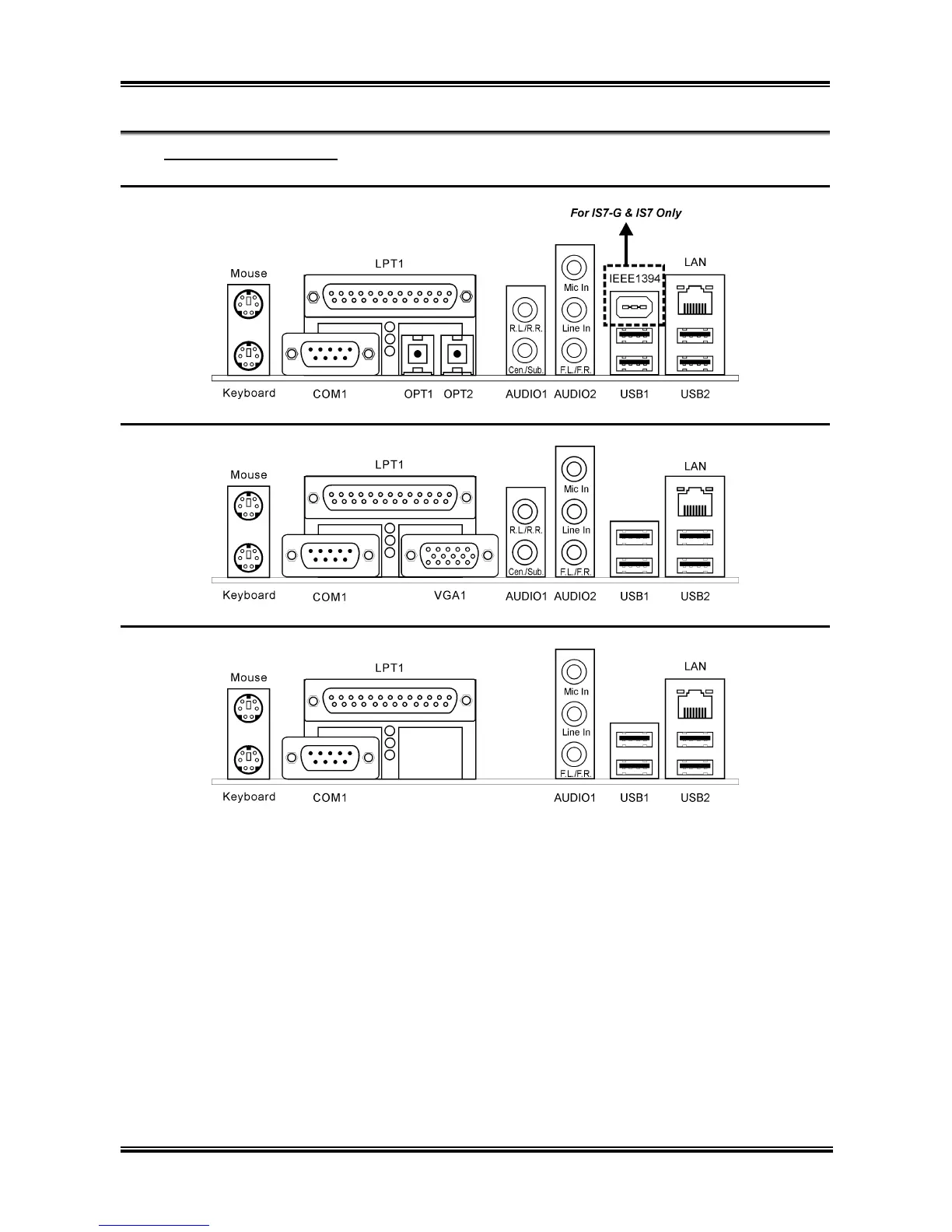

IS7-G/IS7/IS7-E:
IS7-M:
IS7-E2/IS7-V2:
• Mouse: Connects to PS/2 mouse.
• Keyboard: Connects to PS/2 keyboard.
• LPT1: Connects to printer or other devices that support this communication protocol.
• COM1: Connects to external modem, mouse or other devices that support this communication
protocol.
• OPT1: This connector provides an S/PDIF-In connection through optical fiber to digital
multimedia devices. (IS7-G/IS7/IS7-E)
• OPT2: This connector provides an S/PDIF-Out connection through optical fiber to digital
multimedia devices. (IS7-G/IS7/IS7-E)
• VGA1: Connects to monitor input. (IS7-M)
