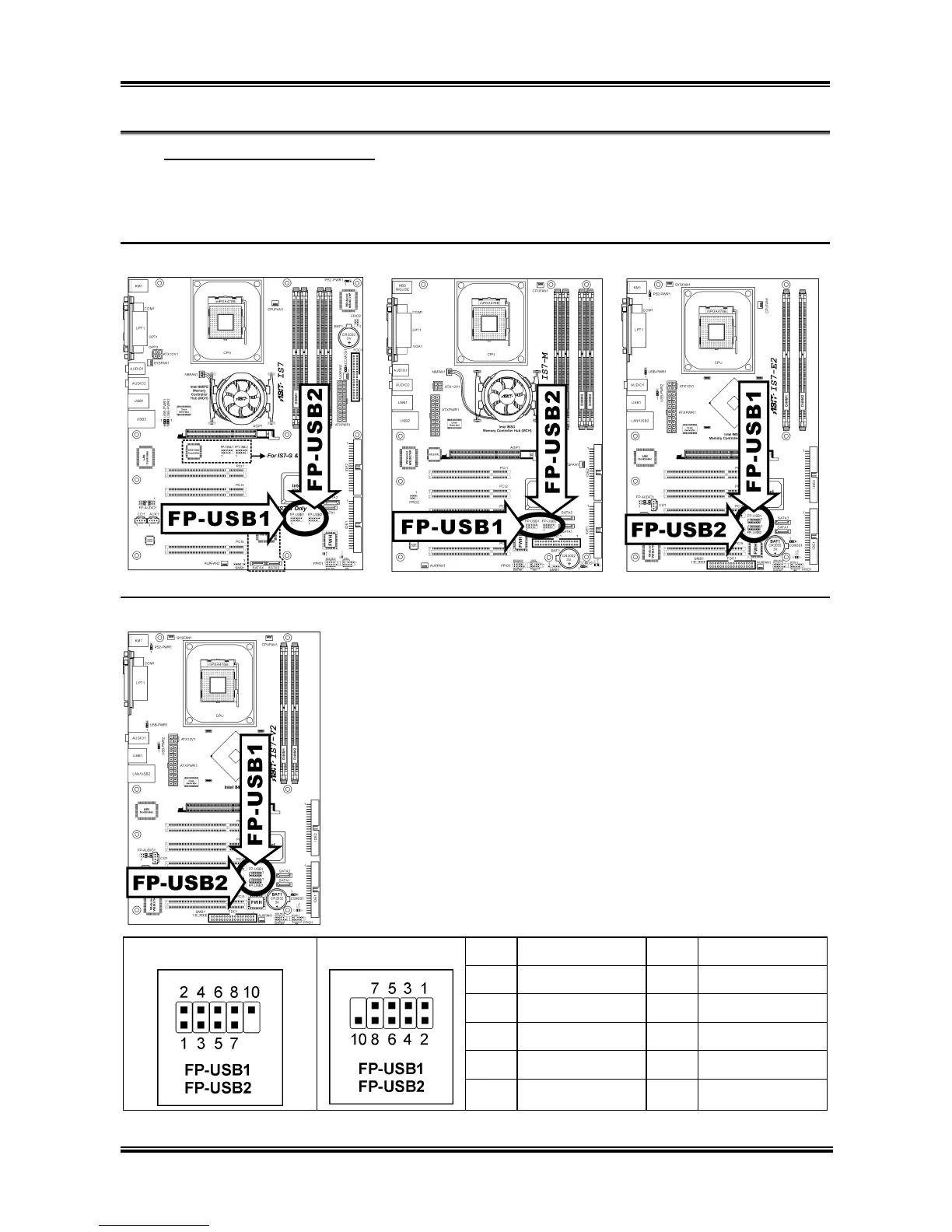

(9). Additional USB Port Headers
These headers each provide 2 additional USB 2.0 ports connection through an USB cable designed for
USB 2.0 specifications.
IS7-G/IS7/IS7-E: IS7-M: IS7-E2:
IS7-V2:
Pin Pin Assignment Pin Pin Assignment
1 VCC 2 VCC
3 Data0 - 4 Data1 -
5 Data0 + 6 Data1 +
7 Ground 8 Ground
IS7-G/IS7/IS7-E/IS7-M
IS7-E2/IS7-V2
9 NC 10 NC
