3-4 Chapter 3

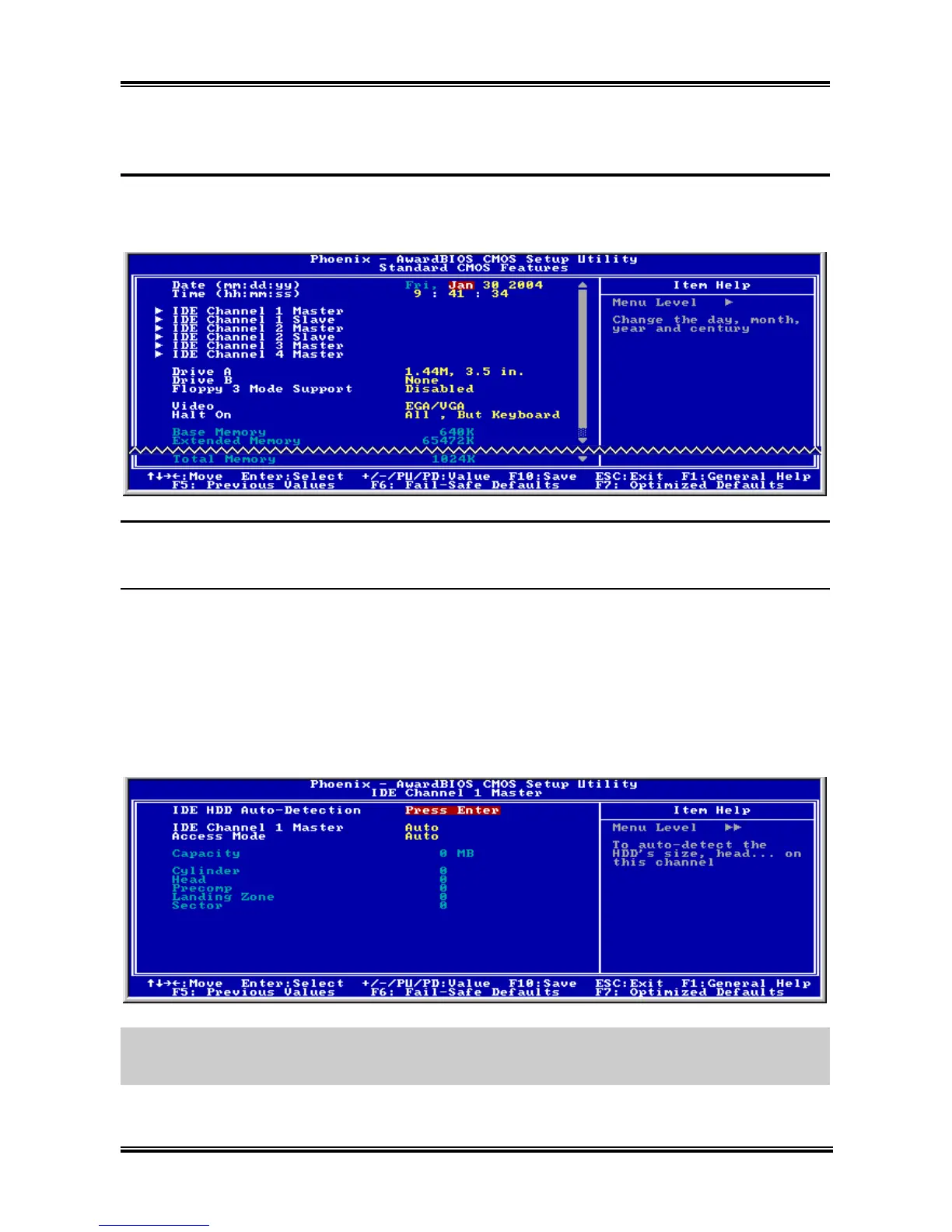

3-2. Standard CMOS Features
This section contains the basic configuration parameters of the BIOS. These parameters include date,
hour, VGA card, FDD, and HDD settings.
Date (mm:dd:yy):
This item sets the date you specify (usually the current date) in the format of [Month], [Date], and [Year].
Time (hh:mm:ss):
This item sets the time you specify (usually the current time) in the format of [Hour], [Minute], and
[Second].
IDE Channel 1 Master/Slave, IDE Channel 2 Master/Slave, IDE Channel 3
Master, IDE Channel 4 Master:
Click <Enter> key to enter its submenu:
NOTE: Item “IDE Channel 3 Master” and “IDE Channel 4 Master” appears only when the item “OnChip
Serial ATA” in the “OnChip IDE Device” menu is set as [Enhanced Mode], and the item “OnChip Serial
ATA Mode” in the “OnChip IDE Device” menu is set as [IDE].
IS7 Series
To Next Page
