Ablerex MSRT-Pro 2KVA - 3.2. Real Panel Descriptions

8

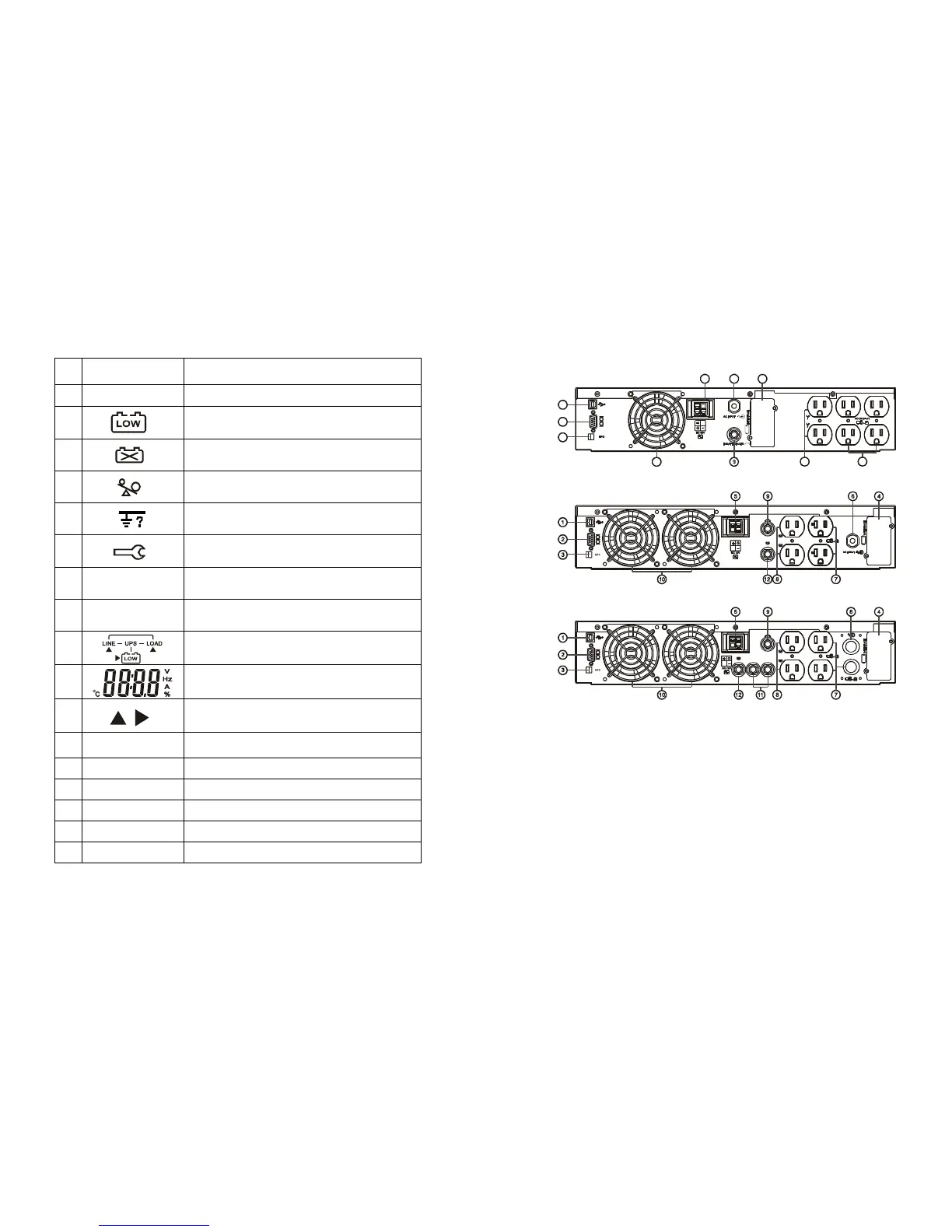

3.1.2.1 Symbols on the LCD Display Panel
Item Symbol Description
1
LINE
Utility or Bypass Source
2 Battery Low
3 Battery Abnormal
4 UPS Overloading
5
Site Wiring Fault
6 UPS Working in Service Mode
7
OFF
UPS Shutoff
8
FAIL
UPS Abnormal Lock
9 UPS Flow Chart
10 4 Digits Measurement Display
11 Indicate the item desired to be measured
12
Er05
Battery Weak or Dead
13
Er06
Output Short Circuit
14
Er10
Inverter Over-current
15
Er11
UPS Overheat
16
Er12
UPS Output Overloading
17
Er**
Other Error Code
9
3.2. Real Panel Descriptions
120V
1/1.5KVA
10
8 7
1
2
3
5
46
2KVA
3KVA
