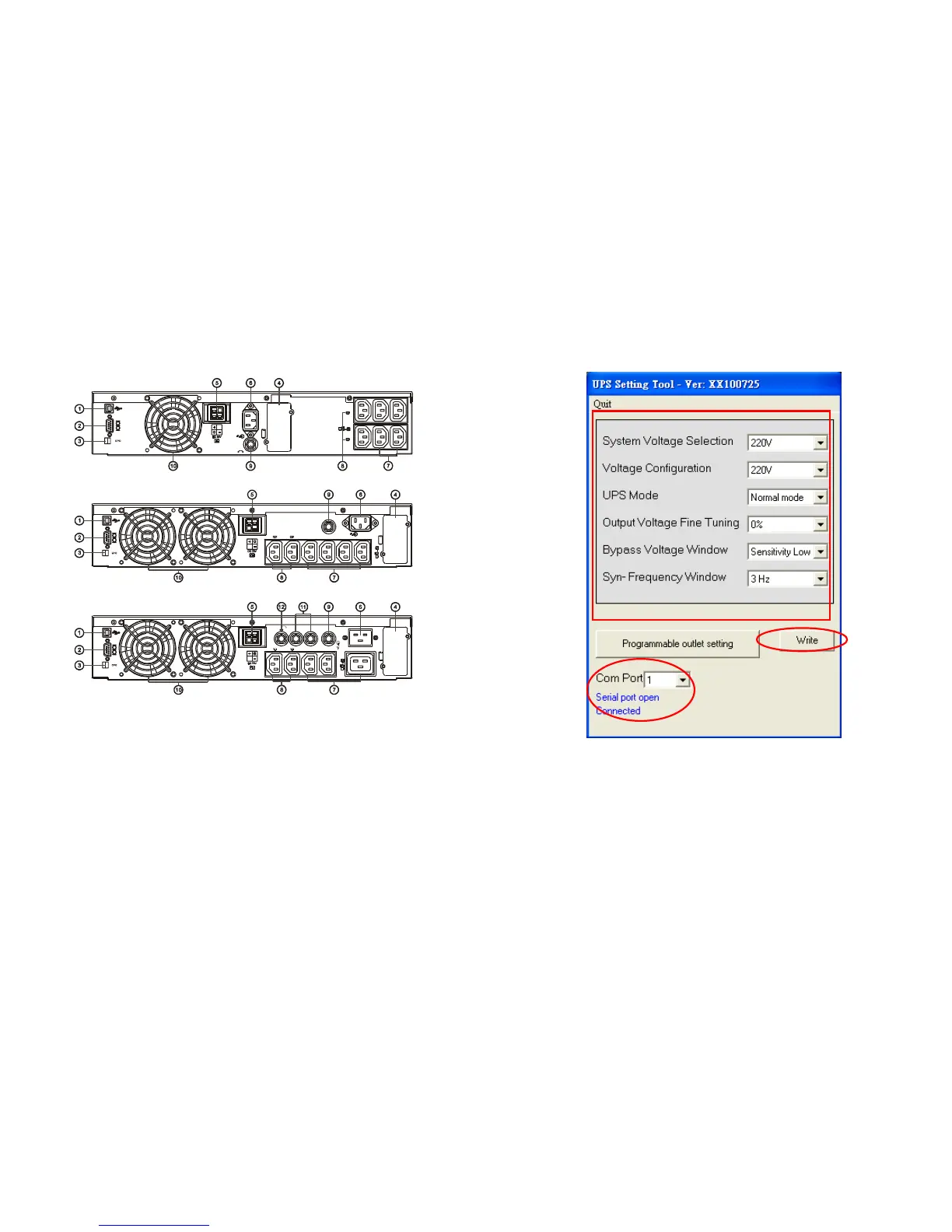

1. USB Port
2. RS232 Port
3. Emergency Power Off (EPO) Dry Contact Signal inputs
4. Communication Card Options Slot
5. External Battery Connector
6. AC power connection socket
7. AC Outlets
8. Two programmable outlets
9. Utility Input circuit breaker
10. Cooling Fans
11. Output circuit breaker for two outlets
12. Output circuit breaker for two programmable outlets
230V
1/1.5KVA
2KVA
3KVA
11
3.3. Operating Modes & Voltage System Configurations
Download and open the “UPS Setting Tool” Software to see the screen as below
3.3.1. System Configuration Settings
1. System Voltage Selection：Select Input Voltage 110V or 220V
2. Voltage Configurations：Select UPS Output Voltage
200V/208V/220V/230V/240V or 100V/110V/115V/120V/127V
3. UPS Modes：Select Normal/CF50*/CF60* Mode
4. Output Voltage Fine Tuning：Output Voltage Regulation from 0～±3%
