Ablerex TAURUS 40 kVA - Page 12

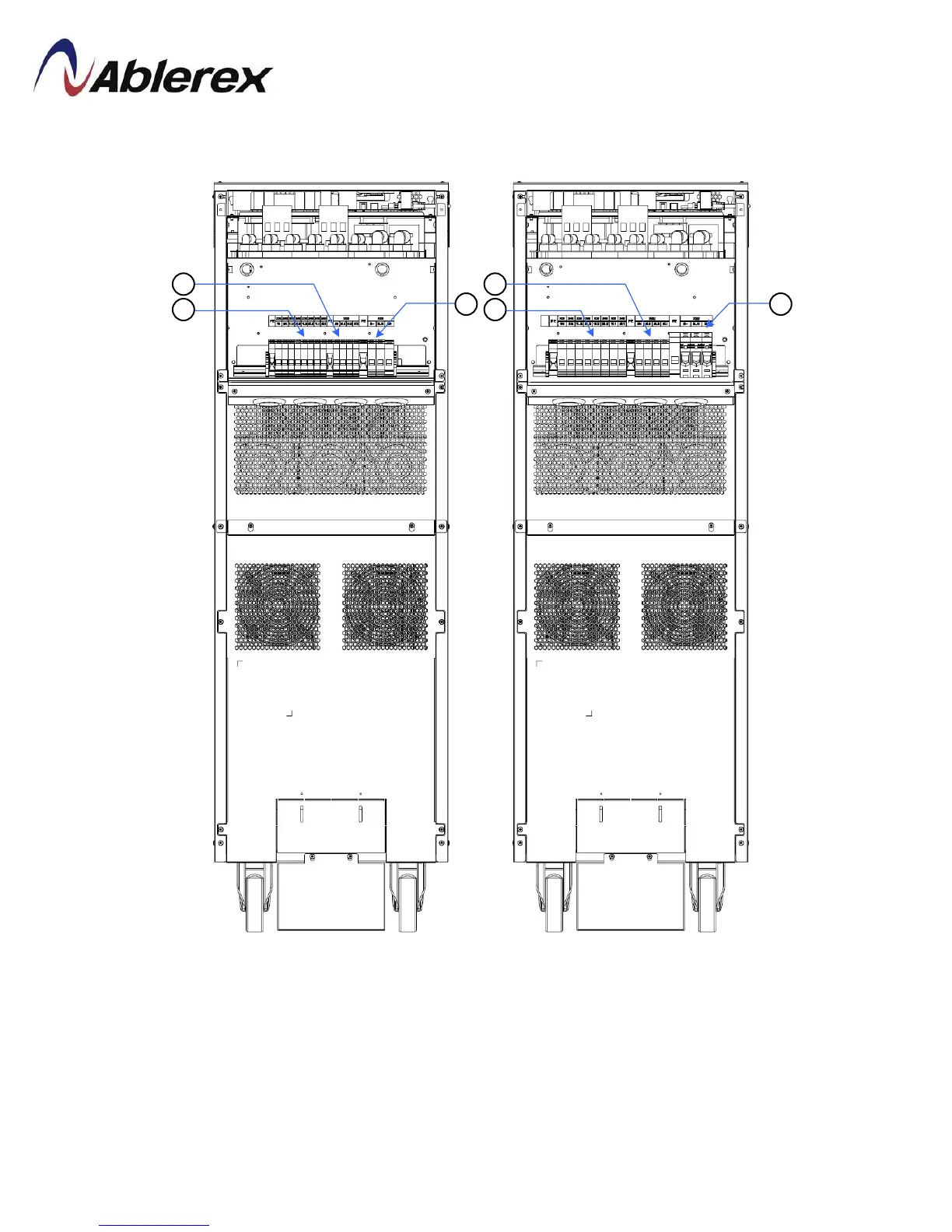

 30-40kVA Rear View
3
1
2
3
1
2
30kVA 40kVA
A
○
1E
X10/X40: Mains/Bypass Input
Connections Terminal
(1N, 2N, 1L3, 2L3, 1L2, 2L2, 1L1, 2L1)
A
○
2E
X50: Output Connections Terminal
(3N, 3L3, 3L2, 3L1)
A
○
3E
X20: External Battery Connections
Terminal(B+,N,B-)
