Ablerex TAURUS 40 kVA - Installation and Wiring; Storage and Installation Environment

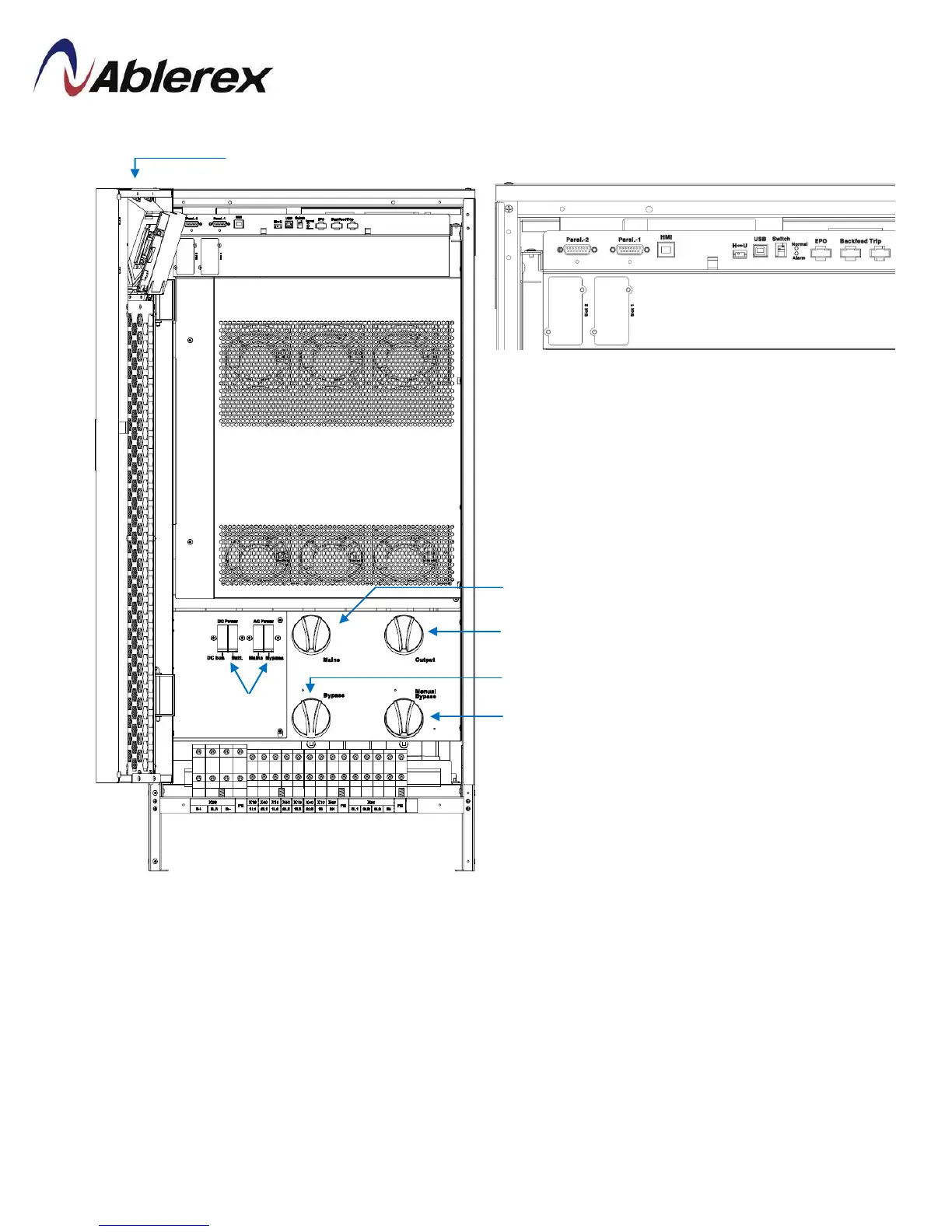

 60-80kVA Internal View
A
○
12E
Mains Input Switch
A
○
16E
Fuses for Control Power
A
○
13E
Output Switch
A
○
17E
X20: External Battery Connection Terminals
(B+,N,B-,G)
A
○
14E
Bypass Input Switch
A
○
18E
X10/X40: Mains/Bypass Input Connections Terminal
(1N, 2N, 1L3, 2L3, 1L2, 2L2, 1L1, 2L1)
A
○
15E
Manual Bypass Switch
A
○
19E
X50: Output Connections Terminal
(3N, 3L3, 3L2, 3L1)
A
○
1E
Parallel Communication Ports
A
○
2E
HMICommunicationPort
A
○
3E
Communication Selector for
Service Only
A
○
4E
USB Port for Service Only
A
○
5E
Terminal Resistor Setting Switch
for Parallel Communication
A
○
6E
Status LED Indictors
A
○
7E
EPO
A
○
8E
Backfeed Protection
A
○
9E
MBP Detector
A
○
10E
Communication Card Slot1
A
○
11E
Communication Card Slot2
Please find the detail descriptions of
above items on section 2-5.
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
10
○
12
○
13
○
14
○
15
○
17
○
18
○
19
○
16
○
9
Front Door
13
192321262008007
