Absen X3 - Cabinet Installation and Dissassembly; Rigging Bar Installation

X3/X5/X7 User Manual
- 10 -
Leading LED Applications
• Flat Assembly: Place the other rigging bar from top to bottom through M5 shaft, align left and right rigging
bar’ scale to 0˚, and tighten M8 locking screw to complete rigging bar assembly.
Cabinet Installation and Disassembly

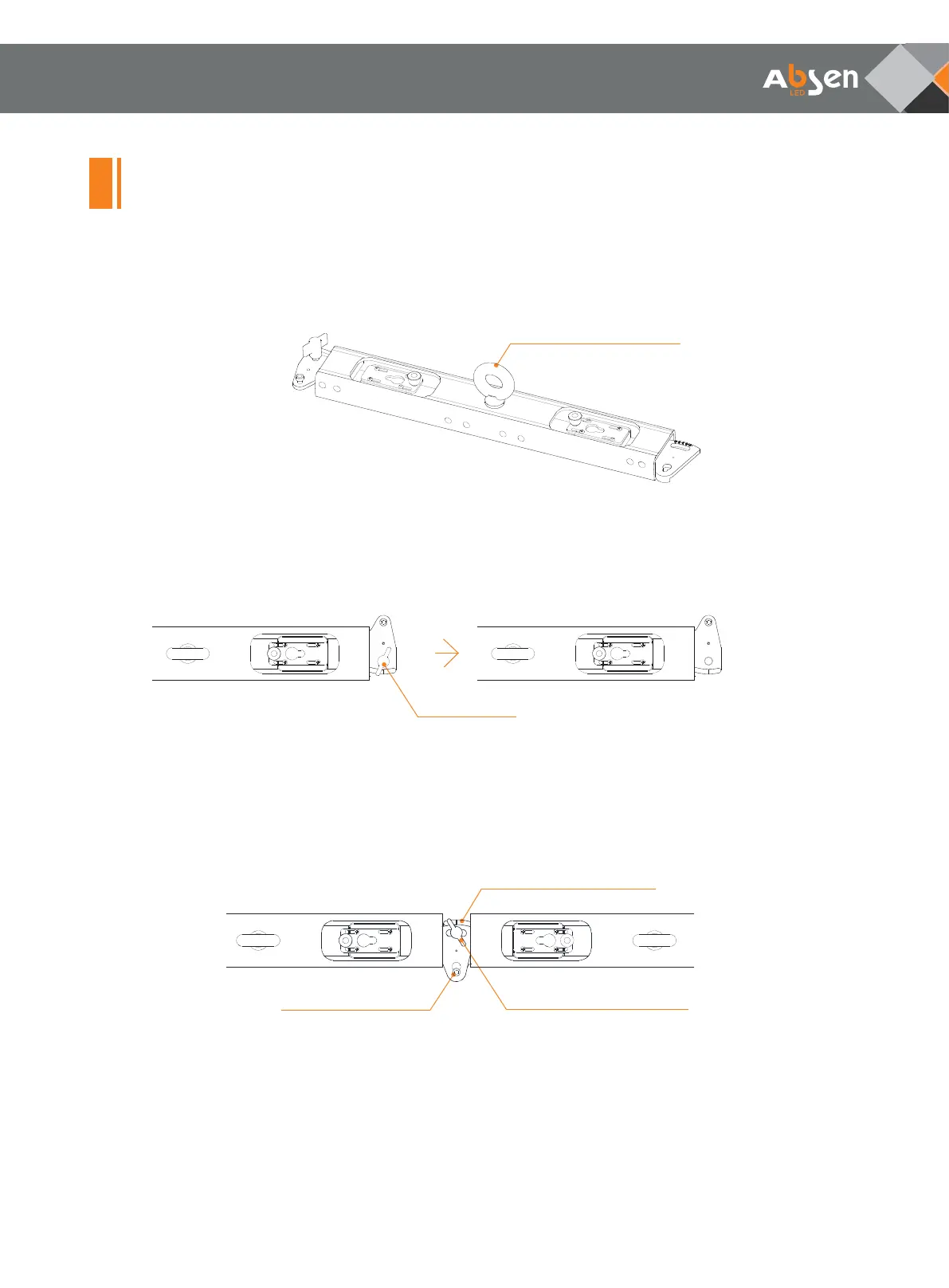

Connect the single hoist rigging bar
to the truss or steel structure through this handle
Unlock M8 screw
Step 3: Tighten M8 locking screw
• First, unlock the M8 screw on the rigging bar. First, unlock the M8 screw on the rigging bar.
Step 1: Through M5 shaft
Step 2: Align to 0˚ on the scale
