X3/X5/X7 User Manual
• Arc Assembly: Place the other rigging bar from top to bottom through M5 shaft, adjust left and right rigging
bar scale to -10˚/-5˚/5˚/10˚ angles, tighten M8 locking screw.
• You can install the screen cabinet unit after the rigging bar is installed. First, lift up the spring pin,
and ensure the round hole on the locking plate is aligned with the through hole on the locking plate.
(As shown below)
- 11 -
Leading LED Applications

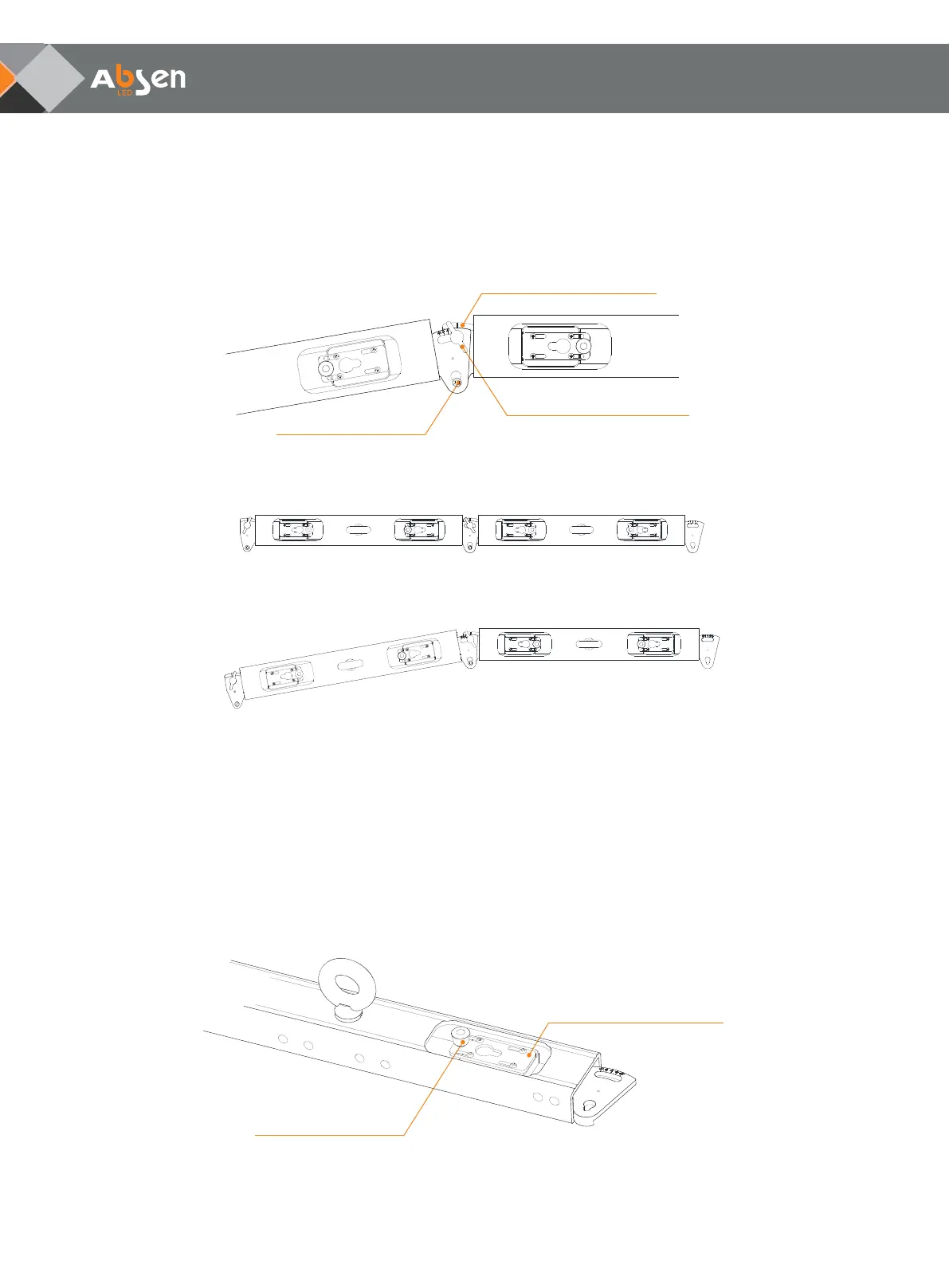

Step 1: Lift up the spring pin
Cabinet and Rigging Bar Installation
Cabinet Mounting
Step 3：Tighten M8 locking screw
Plane assembly is completed
Arc assembly is completed
Step 1: Through M5 shaft
Step 2: Align to -10˚ on the scale
Step 2: Move the locking plate, align the
cross holes on rigging bar with
the locking plate round hole
