4.3. PPDF16000 – Camera/PPDF18000 – Camera/PPDF14520/PPDF14520W

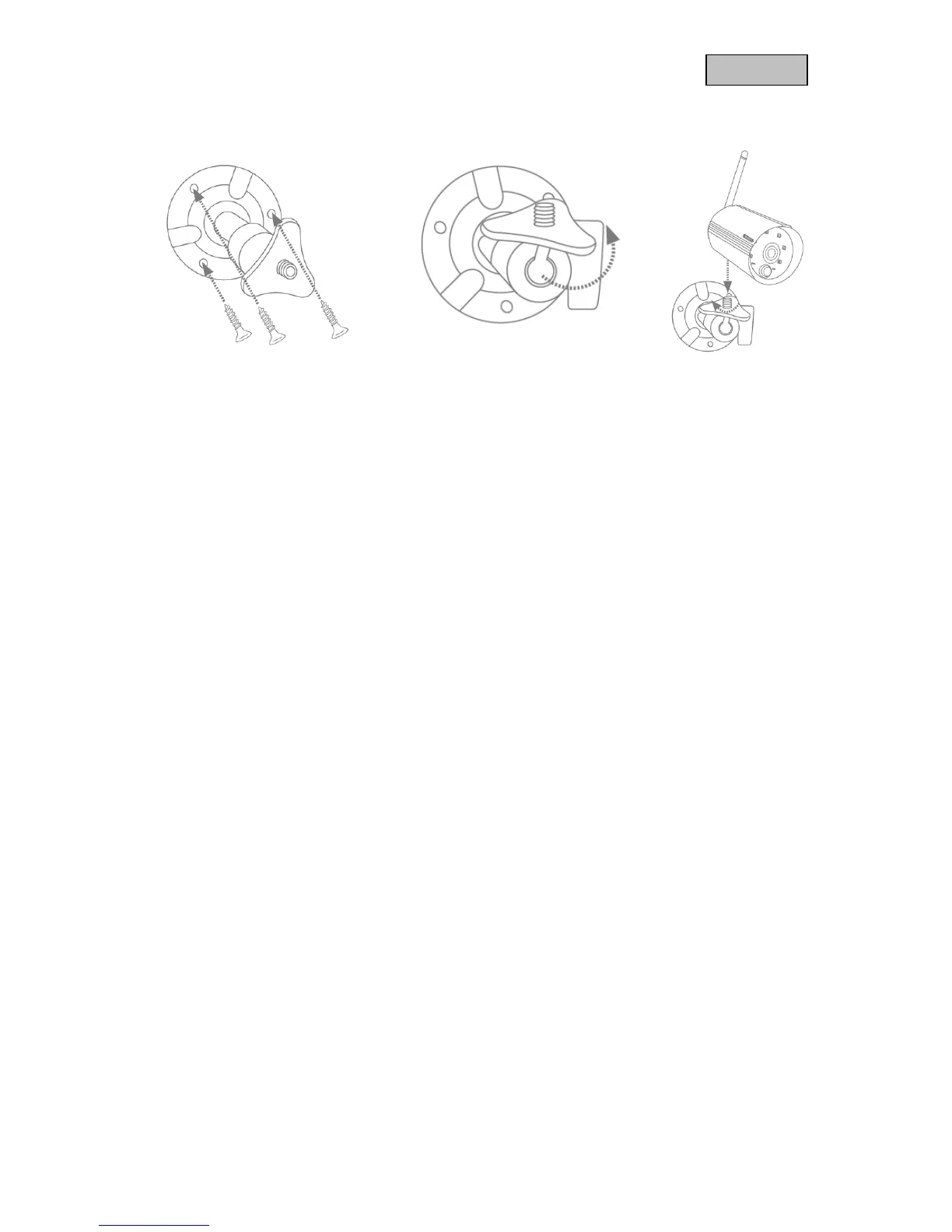

Position the mount where you intend to install the camera. Mark up and drill the required holes. Next,
use the screw anchors and screws provided to fasten the mount in place.
Next, install the camera on the mount by screwing the camera clockwise on to the thread. As soon as
the camera is fully screwed into position, lock the camera further into place by tightening the wing nuts
from underneath.
For alignment purposes, loosen the wing screw at the side and align the camera in the desired position.
Next, lock the camera into place once more by tightening the wing screw.
